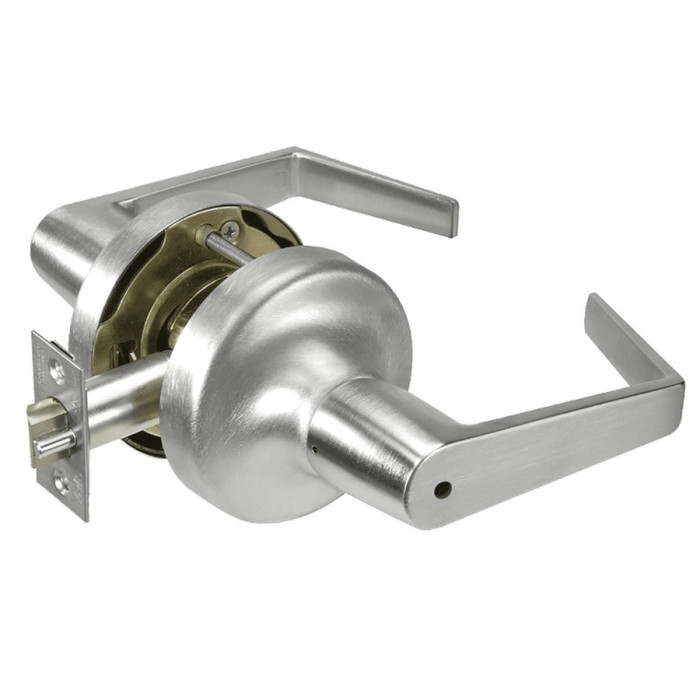

Yale Commercial Yale 5302LN Augusta Grade 2 Privacy, Bedroom or Bath Non-Keyed Cylindrical Lever Lock YAL-AU-5302LN

Accentra 5302LN Augusta Grade 2 Privacy Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-AU-5302LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$393.61
$225.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5302LN Augusta Grade 2 Privacy Cylindrical Lever Lock

Professional Privacy Lock Solution for Commercial Applications

The Accentra 5302LN Augusta lever lock delivers Grade 2 certified performance for privacy, bedroom, and bath applications in commercial and institutional settings. This non-keyed cylindrical lockset features a 2-3/4" standard backset with adjustable door thickness accommodation from 1-3/4" to 2", and includes a 1/2" stainless steel latchbolt with guardbolt deadlocking mechanism. ANSI/BHMA A156.2 Series 4000 Grade 2 certified and UL/cUL fire-rated up to 3 hours for code compliance applications.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 5300LN Series lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL/cUL fire-rated up to 3 hours with 5-year mechanical warranty coverage. Engineered for institutional and commercial markets where dependable performance and code compliance are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5302LN
Collection:
5300 Series
Product Function:
Privacy/Bed/Bath
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-AU-5302LN-626 – Frequently Asked Questions

1) Does the Accentra 5302LN privacy lock come with a 2-3/8 inch backset for a residential-prep door?
Standard backset on the 5302LN is 2-3/4 inches, which is the usual commercial prep. For a door already bored at 2-3/8 inches you order the 2-3/8 inch extension link; links are also offered for 3-3/4 inch and 5 inch backsets on wide-stile or flush-glazed openings. The link is an order option, not something included in the standard carton, so call it out on the PO.
2) Is a privacy lever the right function for an office door, or do I need a keyed lock?
Privacy is the wrong pick for an office. The 5302LN is a non-keyed privacy/bed/bath function: it locks from inside for bedrooms, restrooms and changing rooms, with no key cylinder and no outside key override. For an office you want an entrance or entry/office function such as the Hager 2525 Grade 2 entry lever or the Falcon B511CP6D Grade 2 entrance/office lever. For a door that only needs to latch with no locking at all, a passage lever like the Falcon B101 is the cheaper answer.
3) Do I have to order the 5302LN Augusta lever left or right hand?
No handing to specify. The 5302LN is non-handed and reverses in the field, and the front is universal so it works on both flat and beveled door edges. The strike is reversible as well. One part number covers every door swing in the building, which is what makes it easy to stock as a fleet item.
4) Will the Accentra 5302LN latch into a strike that is already in my frame?
The latchbolt is a 1/2 inch throw stainless bolt, which is standard cylindrical-lock geometry, so an existing cylindrical strike with matching lip length will normally catch it. Shipped standard is a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door; other lip lengths are available to order when the frame is set back further from the door face. A guardbolt deadlocks the latch whenever the door is closed.
5) Can I use the 5302LN privacy lever on a fire-rated door?
Yes. The 5302LN carries UL/cUL fire ratings up to 3 hours, so it can go on rated bedroom, bath and patient-room doors. It is also ANSI/BHMA A156.2 Series 4000 Grade 2 certified and windstorm certified, though windstorm use always has to be checked against the local code for your jurisdiction.
6) I need a privacy bath lock but the doors take knobs, not levers - what should I order instead?
The Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob and a door thickness range of 1-3/4 inch to 2 inch, and it carries a fire rating. That gives you the same privacy/bed/bath function and the same door thickness window as the Accentra 5302LN Augusta, which is a lever trim. Choose the knob version only where lever operation is not required - lever trim is typically specified on doors that must meet accessible-operation requirements.
7) What is the closest equivalent to the Accentra 5302LN Augusta privacy lever from another brand?
The Hager 2540 is the nearest match: a Grade 2 privacy cylindrical lock with the Withnell lever, fitting doors 1-3/8 inch to 2 inch. The Accentra 5302LN Augusta is also a Grade 2 privacy/bed/bath cylindrical lever, with a 2-3/4 inch standard backset and adjustable 1-3/4 inch to 2 inch door thickness. Both are non-keyed privacy function lever locks, so the practical differences are lever style, finish range, and the door thickness window - the Hager covers thinner 1-3/8 inch doors, while the Accentra covers 1-3/4 inch to 2 inch as standard with 1-3/8 inch and 2-1/4 inch preps available to order.
8) Is there a lower-cost residential privacy lever if the opening is not a commercial door?
The Kwikset 300BRNL RDT Breton privacy lever set is a Grade 3 privacy/bed/bath lever for doors 1-3/8 inch to 1-3/4 inch thick. The Accentra 5302LN Augusta is a Grade 2 commercial privacy lever certified to ANSI/BHMA A156.2 Series 4000 and UL/cUL fire-rated up to 3 hours. For an interior residential bedroom or bath door the Grade 3 set is dimensionally suited, but it is not the choice where a fire-rated assembly or commercial cycle life is part of the spec.
9) Will a BEST 7KC-1DT or an Emtek dummy lever work as a substitute for the 5302LN?
No. The BEST 7KC-1DT is single dummy trim, and the Emtek Arts and Crafts dummy pair is dummy function as well - dummy trim is a fixed pull with no latch and no mechanism behind it, so it will not secure or even hold a bath or bedroom door closed. The Accentra 5302LN Augusta is a working privacy/bed/bath cylindrical lever with a 1/2 inch stainless steel latchbolt and a guardbolt that deadlocks the latch when the door is closed. Dummy trim is only for inactive leaves or closet doors held by a catch.
10) Is Grade 2 enough for a dormitory or patient room, or should I step up to Grade 1?
Grade 2 covers normal-duty commercial privacy openings, and the 5302LN uses a heavy-gauge steel, zinc-plated and dichromated mechanism for that service. On high-abuse doors, or where a facility standardizes on Grade 1 across the board, a heavy-duty Grade 1 cylindrical is the better match: Corbin Russwin's CL3100 Series (CL3110) is a Grade 1 vandal-resistant, fire-rated cylindrical lever, and Falcon's K Series K101 is Grade 1 heavy duty with a 1-3/8 to 2-1/4 inch door range. Both of those are non-keyed passage function though, not privacy.
11) What finishes does the Accentra 5302LN Augusta lever come in, and which ones hold up outdoors or in wet areas?
Ten finishes are stocked: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606 and is offered as a lifetime finish for 613, which is the choice for humid restrooms, pool areas and coastal work where plated brass will tarnish. 626 satin chrome is the usual institutional match.
12) Does the 5302LN accept a cylinder or an interchangeable core if I want to key it later?
No. The 5302LN is a non-keyed privacy function with no cylinder, and it cannot be converted to keyed operation. If a door may need key control down the road, order a keyed function from the start, such as a storeroom lever (Hager 2580 with the Withnell lever) or a classroom lever (Cal-Royal AG03 in the AG Series, 2-3/4 inch backset).
13) The bathroom door does not need to lock - what takes the place of the 5302LN there?
Use a passage function lockset instead. The Arrow GL01 is a Grade 2 non-keyed passage/hall/closet cylindrical lock with the Sierra lever and the same 1-3/4 inch to 2 inch door thickness range as the Accentra 5302LN Augusta. The Falcon B101 is another Grade 2 non-handed cylindrical passage lever. Both latch the door without any locking mechanism, where the 5302LN Augusta is privacy/bed/bath function with an inside locking device.
14) Is there a decorative privacy lever for a hospitality or high-end residential suite instead of the Augusta?
The Baldwin Estate 5103 privacy lever with the 5048 rose is a privacy/bed/bath lever in a decorative Estate design. The Accentra 5302LN Augusta is a commercial Grade 2 privacy cylindrical lever in 10 stocked finishes including 605 bright brass, 626 satin chrome, and black and white suede powder coat. Guest room baths in a hotel that must match a designer package usually go to the Estate trim; back-of-house and corridor baths on a commercial spec go to the Augusta.
15) What privacy or keyless option handles a 1-3/8 inch door if the 5302LN is built for 1-3/4 inch?
The Accentra 5302LN Augusta is adjustable from 1-3/4 inch to 2 inch, with 1-3/8 inch and 2-1/4 inch preparations available to order. If you need an off-the-shelf fit on thinner stock, the Hager 2540 privacy lock with the Withnell lever covers 1-3/8 inch to 2 inch, and the Lockey 2835 keyless pushbutton lever lock covers 1-3/16 inch to 2 inch where a code-entry function is acceptable in place of privacy.
16) We want to standardize a whole building on one lever family - how does the 5302LN Augusta fit alongside keyed functions?
The Accentra 5302LN Augusta is the privacy/bed/bath function in the 5300 Series cylindrical lever line, so bath and bedroom doors stay in the same series as the keyed openings. If a facility instead standardizes on a competing line, Hager offers the 2510 passage, 2525 entry, and 2580 storeroom locks as Grade 2 lever functions, and Cal-Royal offers the AG03 classroom and AG05 storeroom levers in the AG series. Mixing families across one building means two lever profiles and two rose patterns on the same corridor.
17) Can the Accentra 5302LN be used on an X-ray or radiology door?
No. Lead shielding is not offered on the 5300LN Series, so the 5302LN should not be specified for X-ray or imaging rooms that require a lead-lined lockset. Use a lead-lined lock built for that application instead.
18) What is the difference between the 5302LN and a dummy lever on the same door?
The 5302LN is a working privacy lock with a latchbolt, guardbolt and inside locking, so it holds the door closed and secures it. A dummy is trim only, no latch, used on an inactive leaf or a pull-side application. Non-keyed dummy trims in the comparable range include the BEST 9K Series 1DT single dummy (Grade 1, heavy duty) and the BEST 7KC Series 1DT (Grade 2, medium duty). Don't substitute a dummy where the door has to latch.
