Yale Commercial Yale 5304LN Pacific Beach Grade 2 Entry Cylindrical Lever Lock YAL-PB-5304LN

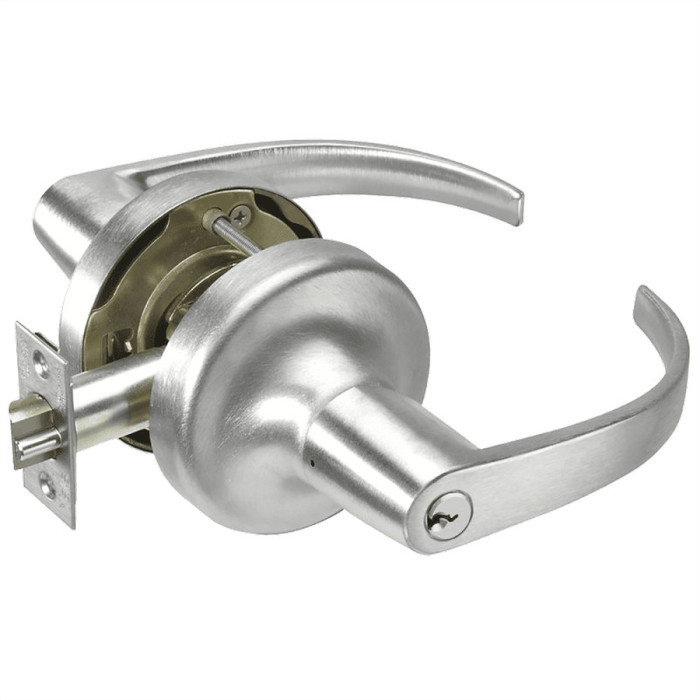

Accentra 5304LN Pacific Beach Grade 2 Entry Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-PB-5304LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$398.00
$250.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5304LN Pacific Beach Grade 2 Entry Cylindrical Lever Lock

Commercial-Grade Cylindrical Lever Lock Solution

The Accentra 5304LN Pacific Beach lever lock delivers professional-grade security and reliability for commercial, industrial, and institutional applications. This Grade 2 certified cylindrical lever lock features heavy-gauge steel construction with zinc-plated, dichromated mechanism and adjustable door thickness accommodation from 1-3/4" to 2". ANSI/BHMA A156.2 Series 4000 Grade 2 certification and UL/cUL fire rating up to 3 hours ensure code compliance for demanding commercial environments.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanism rated for demanding commercial applications. ANSI/BHMA Grade 2 certification with UL/cUL fire rating up to 3 hours ensures code compliance, while the 5-year mechanical warranty provides added confidence. Engineered for commercial, industrial, and institutional markets where dependable performance and security are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5304LN
Collection:
5300 Series
Product Function:
Entrance
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-5304LN-626 – Frequently Asked Questions

1) What backset does the Accentra 5304LN come with, and can it work in a 2-3/8 inch bore?
Standard is a 2-3/4 inch backset. Extension links are available to order for 2-3/8 inch, 3-3/4 inch and 5 inch backsets, so a door already bored at 2-3/8 inches (common on lighter and older prep) is covered, but the link has to be specified at order time. Measure from the door edge to the center of the cross bore before you order.
2) Do I need to specify handing for the 5304LN entry lever?
No handing to call out. The 5304LN is non-handed and its front works on both flat and beveled door edges, and the strike is reversible. That means one part number covers left and right hand openings, which is what you want when you are stocking spares for a building rather than ordering door by door.
3) Can I use the Accentra 5304LN on a fire rated door?
Yes, the 5304LN carries UL/cUL fire rating up to 3 hours, and it is ANSI/BHMA A156.2 Series 4000 Grade 2. It is also windstorm certified, subject to your local code. For a stairwell, corridor or tenant entry on a rated assembly that combination is what an inspector is looking for on a cylindrical lockset.
4) Will the 5304LN latch into the strike that is already in my frame?
The latchbolt is stainless steel with a 1/2 inch throw, and the standard strike is a 1-1/4 inch curved lip sized for a 1-3/4 inch door. If your existing frame has a curved lip strike with a matching lip projection and a standard ASA prep, the lock will latch into it. Where the frame reveal is deeper (a heavier stop or thicker door), other lip lengths are available to order rather than field-bent.
5) What cylinder and keying comes with the Accentra 5304LN, and can I get it 7-pin?
Each 5304LN ships with a brass 6-pin keyed-random cylinder and two keys. There is no 7-pin option in this series. If your building is on a 7-pin master system, this is the wrong lock to standardize on and you should be looking at a heavier interchangeable core line such as the BEST 9K Series instead.
6) Is Grade 2 enough for a school or hospital corridor, or do I need Grade 1?
The 5304LN is ANSI/BHMA A156.2 Series 4000 Grade 2 with a heavy-gauge steel, zinc-plated and dichromated mechanism. That is the right level for offices, retail, multi-tenant residential and back-of-house doors. On classroom and patient-room doors that get hit hundreds of times a day, buyers usually step up to Grade 1: the Corbin Russwin CL3100 Series and the Falcon K Series K101 are both Grade 1 cylindrical levers, and the Dexter C1000 Series covers Grade 1 classroom and classroom security functions.
7) What is the equivalent to the Accentra 5304LN if I want a Grade 2 commercial entry lever from another brand?
The closest straight substitute is the Hager 2525, a Grade 2 cylindrical entry lever covering 1-3/8 inch to 2 inch doors. The Falcon B511CP6D is another Grade 2 entry/office cylindrical lever. If the door is 1-3/8 inch and you do not want to special-order thickness, the Hager or the Cal-Royal AG00 (Grade 2, 6-pin Schlage C keyway, 2-3/8 inch backset) fit that range as supplied where the 5304LN's stock adjustment starts at 1-3/4 inches.
8) What is the closest cross-brand equivalent to the Accentra 5304LN Pacific Beach entry lever lock?
The Hager 2525 is the nearest match on the core specs a substitution turns on. Like the 5304LN, it is a Grade 2 cylindrical lever lock with an entrance function, and it covers a 1-3/8 inch to 2 inch door thickness range against the 5304LN adjustable 1-3/4 inch to 2 inch range. The Falcon B511CP6D is the other close call: Grade 2 cylindrical lever, entry/office function, medium duty. Entry/office differs from straight entrance in how the outside lever is left unlocked, so confirm the function the opening needs before swapping it in.
9) The door is 1-3/8 inch thick - what entry lever works there instead of the Accentra 5304LN?
The 5304LN adjusts from 1-3/4 inch to 2 inch, so a 1-3/8 inch door falls outside its standard range. The Hager 2525 is a Grade 2 entrance cylindrical lever covering 1-3/8 inch to 2 inch. The Cal-Royal AG00 entrance lever is Grade 2 with a 6-pin Schlage C keyway, keyed different, on a 2-3/8 inch backset, rated for 1-3/8 inch to 1-3/4 inch doors. The Dexter C1000 entry/office is a Grade 1 clutching keyed lever for 1-3/8 inch to 1-3/4 inch doors if the opening wants a heavier grade. On older residential-converted stock, the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body over the same 1-3/8 inch to 1-3/4 inch range.
10) What is the Grade 1 step up from a 5304LN Pacific Beach entry lever for a high-traffic opening?
The 5304LN is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. For a heavier cycle count on a keyed opening, the Dexter C1000 entry/office is Grade 1 with a clutching keyed lever for 1-3/8 inch to 1-3/4 inch doors. On the non-keyed side of the same door group, the Falcon K101 is a Grade 1 heavy duty passage lever, fire rated, spanning 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors. Grade 1 sets are dimensionally distinct from Grade 2, so treat this as a re-spec rather than a drop-in and verify the door prep.
11) I need the outside lever to stay locked at all times - is the 5304LN the right function or should I order a storeroom lock?
The 5304LN is an entrance function, where the outside lever can be left unlocked for normal traffic. An opening that must stay secured every time it closes calls for a storeroom function instead. The Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Both hold the same Grade 2 rating as the 5304LN, so the change is function, not grade.
12) What replaces a 5304LN on a psychiatric or utility room door that needs no free egress from the inside?
An entrance function like the 5304LN always allows the inside lever to retract the latch. An asylum or institutional function locks and unlocks by key from both sides instead. The Dexter C1000 asylum is the F87 function at Grade 1 for 1-3/8 inch to 2 inch doors. The Arrow MK33 asylum/institution/utility lock is Grade 2 heavy duty with a conventional cylinder in the Schlage C keyway, though it carries a ball knob rather than a lever, so confirm ADA lever operation is not required at that opening.
13) Does the 5304LN come keyed to a Schlage C keyway like the Cal-Royal entry levers?
The 5304LN ships with a brass 6-pin keyed-random cylinder and two keys, and 7-pin is not offered. The Cal-Royal AG00 entrance lever and AG03 classroom lever are both specified with a 6-pin Schlage C keyway, keyed different, and the Arrow MK33 uses a conventional cylinder in the Schlage C keyway. If the building is already keyed on a Schlage C system, those peers drop into that system directly, while the 5304LN cylinder needs to be keyed to the existing system at order time or swapped by the locksmith on site.
14) The opening needs to release on a fire alarm - what electrified lever replaces a 5304LN?
The 5304LN is a mechanical lock with a brass 6-pin cylinder and has no electrified option. For an access control or alarm-released opening on the same 1-3/4 inch to 2 inch door thickness the 5304LN covers, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever at 12VAC/DC, available with the NZ lever and D rose, and in a keyed 12VAC/DC version. Fail safe means the lever unlocks when power drops, so verify that is the behavior the life safety plan calls for rather than fail secure.
15) What finishes does the Accentra 5304LN Pacific Beach lever come in?
Thirteen finishes are offered across the series, with nine orderable choices on the Pacific Beach entry lever: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus black and white suede powder coat. PVD lifetime finish is standard on 605 and 606, which matters if the lever is on an exterior or high-touch opening where plated brass would wear off. 626 satin chrome is the usual commercial default if you are matching existing hardware in an office or school.
16) What keeps someone from slipping the latch on an entry lever lock like the 5304LN?
A guardbolt. On the 5304LN it deadlocks the latchbolt whenever the door is closed, so the latch cannot be carded or shimmed back. It is standard on every locking function in the family, not an added option you specify.
17) Should I use a cylindrical lever lock or a mortise lock for a commercial tenant entry door?
A cylindrical lockset like the 5304LN drops into a standard bored door prep, which is why it is the fast answer for retrofits and new hollow metal or wood doors alike. A mortise lock needs a pocket routed into the door edge, so it is only worth it when you need functions or trim a bored lock cannot provide. For a Grade 2 entry opening in an office, retail or multi-tenant residential building, the cylindrical is the cheaper prep and the easier future swap.
18) I need a matching lever on doors that do not need to lock. What do I order alongside the 5304LN?
Entry is the function on the 5304LN, so closets, hallways and janitor doors need a different function from the same 5300LN family rather than this part number. Where you are willing to mix brands, the Falcon B101 is a Grade 2 non-handed cylindrical passage lever, the Arrow GL01 is a Grade 2 passage lever for 1-3/4 inch to 2 inch doors, and the BEST 7KC Series 1DT covers dummy trim on inactive leaves. Matching the finish code across brands is the part that usually gets missed.
19) Can the Accentra 5304LN be used on a door that needs lead shielding for an X-ray room?
No. Lead shielding is not available on the 5300LN series, so it cannot be used on a radiology or imaging room door where the lock body has to be shielded. For that opening you need a lockset specifically supplied with lead lining, ordered as such.
20) Will the Pacific Beach lever match the other Accentra 5300 Series locks already on my building's doors?
Pacific Beach is one lever design within the 5300LN cylindrical series, so it shares the series' bored prep, the 2-3/4 inch standard backset and the same finish codes as its siblings. If your existing doors are 5300LN with a different lever style, the prep will carry over and only the lever appearance changes. Order the same finish code (626 satin chrome, for example) and the trim will read as one set across the floor.
21) Which lever lock should I use if the door does not need to lock at all - a closet or hall opening next to a 5304LN entry door?
The 5304LN is an entrance function lock, so it is the wrong part for an opening that never latches locked. Matched at Grade 2 cylindrical: the Falcon B101 is a medium duty passage lever with a non-handed design, the Hager 2510 is a Grade 2 passage lever in the Withnell design covering 1-3/8 inch to 2 inch, the Arrow GL01 is a Grade 2 non-keyed passage lever with a Sierra lever for 1-3/4 inch to 2 inch doors, and the Design Hardware J75 is a Grade 2 passage lever with a flat lever for 1-3/4 inch doors. If the door is a closet face that needs a lever with no latch at all, the BEST 7KC single dummy trim is Grade 2 medium duty.
22) What looks like a substitute for the Accentra 5304LN entry lever but is not?
Three groups get ordered against a 5304LN by mistake. Dummy trim - the BEST 9K 1DT, the BEST 7KC 1DT, and the Baldwin Estate 5103 half dummy in left and right hand - carries a lever and rose but no latch and no cylinder, so it cannot secure an opening. Privacy sets such as the Kwikset 300BRNL Breton and the Hager 2540 lock from the inside with no key on the outside, which is not entrance operation. And keyless keypad levers like the Lockey 2835 and the Delaney LP250 replace the key entirely, so they will not join a facility keying system the way the 5304LN brass 6-pin cylinder does.
23) Is a Grade 3 entry lever enough, or do I need the Grade 2 Accentra 5304LN?
The difference is the certification the opening has to meet. The 5304LN carries ANSI/BHMA A156.2 Series 4000 Grade 2 with UL/cUL fire rating up to 3 hours, which is what commercial, institutional, and government specifications generally call for. Grade 3 keyed entry levers in the same style include the Callan Artino entrance leverset, the Callan Bennett entrance leverset with a deadbolt combo, the Master Lock BC Series return style keyed entry lever, and the Cal-Royal AUS00 entrance/office lever with a solid brass forged body for 1-3/8 inch to 1-3/4 inch doors. Grade 3 sets are built to a lighter cycle standard, so check the spec on the drawing before substituting one where Grade 2 was called out.
24) I am standardizing a building on one lever design - how does the Pacific Beach lever compare with other commercial lever styles?
The 5304LN uses the Pacific Beach lever in the 5300 Series, offered in 13 finishes including 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 626 satin chrome, and black and white suede powder coat. Commercial peers each carry their own lever design that will read differently on the door: Hager uses the Withnell lever across its 2510 passage, 2540 privacy, and 2580 storeroom sets, Arrow uses the Sierra lever on the GL01, and Design Hardware uses a flat lever on the J75 and X75. If the goal is a consistent look on every door of a floor, matching the lever design matters as much as matching the finish code, so pick the family before picking functions.
25) Can I put a 5304LN on a door that has an exit device on it?
No - the 5304LN is a complete cylindrical lockset with its own latchbolt and guardbolt, and it bores into the door as the latching hardware. A door already carrying a pushpad exit device needs lever trim built for that device instead. The Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device in the CL3300 cylindrical lock series, covering 1-3/4 inch to 2 inch doors, and the Imperial USA ED-EL500HD is a heavy duty escutcheon lever trim with an entry function in the ED-500 Series.
26) What entry lever handles a thick door better than the 5304LN?
The 5304LN adjusts from 1-3/4 inch to 2 inch as standard, with 1-3/4 inch or 2-1/4 inch door versions available to order. If the door is thicker than the standard range and ordering a special is not workable, the Falcon K101 covers 1-3/8 inch to 2-1/4 inch, though it is a Grade 1 passage function rather than a keyed entrance. Among keyless options across a wide door range, the Lockey 1150 heavy duty keypad lever set covers 1-1/8 inch to 2 inch with an adjustable backset, and the Lockey 2835 covers 1-3/16 inch to 2 inch - both passage function, so they will not hold an opening secured the way an entrance lock does.
27) We want keyless entry on a tenant door instead of the 5304LN - what are the options?
The 5304LN operates on a brass 6-pin cylinder with two keys furnished. To drop keys entirely, the Delaney LP250 is a Grade 2 electronic keypad leverlock, the Emtek Classic keypad leverset is a mechanical-style alternative in the Classic series, and the Lockey 2835 is a mechanical pushbutton keyless lever lock with ADA compliance, with a double combination version in the 2835DC. The Lockey sets are passage function, so they latch without securing the door once the code is entered - match that against what the opening actually needs before switching.
28) Is the 5304LN handed, and are the alternatives non-handed too?
The 5304LN is non-handed and its fronts are universal for both flat and beveled door edges, so one part covers left and right hand openings. Among the peers, the Falcon B101 Grade 2 passage lever and the Falcon K101 Grade 1 passage lock are both specified as non-handed. Others are handed and need the hand called out on the order - the Baldwin Estate 5103 half dummy, for instance, is sold as a separate left hand and right hand part.
