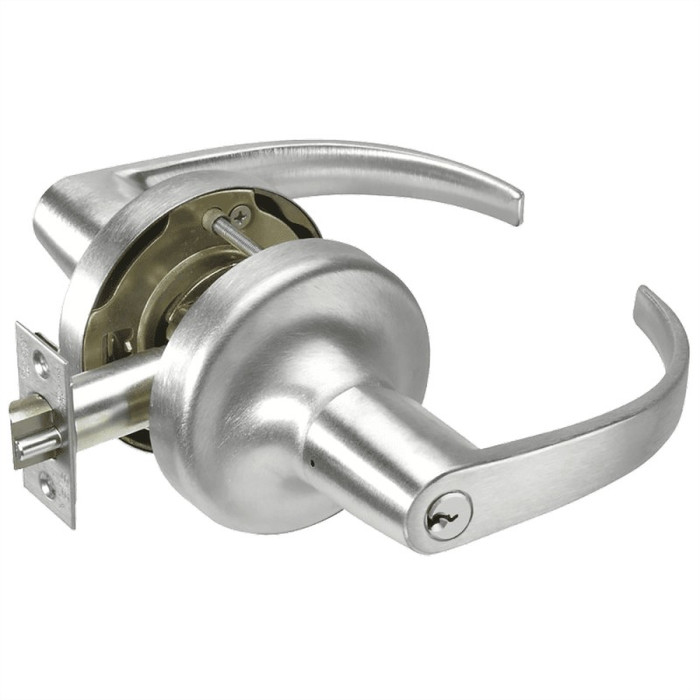

Yale Commercial Yale 5307LN Pacific Beach Grade 2 Entry Cylindrical Lever Lock YAL-PB-5307LN

Accentra 5307LN Pacific Beach Grade 2 Cylindrical Lever Lock with Single Cylinder Entry Function

(No reviews yet) Write a Review

Model: YAL-PB-5307LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$448.31
$254.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5307LN Pacific Beach Grade 2 Cylindrical Lever Lock with Single Cylinder Entry Function

Professional Commercial-Grade Cylindrical Lever Lock

The Accentra 5307LN Pacific Beach lever lock delivers Grade 2 security and reliability for commercial, institutional, and industrial applications. This cylindrical lever lock features a heavy-gauge steel mechanism with zinc-plated dichromate finish, 1/2" stainless steel latchbolt throw, and adjustable door thickness accommodation from 1-3/4" to 2". ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for code compliance applications.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL/cUL fire-rated up to 3 hours with 5-year mechanical warranty for added confidence. Engineered for commercial, institutional, and industrial markets where dependable security performance is essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5307LN
Collection:
5300 Series
Product Function:
Entrance
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-5307LN-626 – Frequently Asked Questions

1) What backset does the Accentra 5307LN come with, and can I get it for a 2-3/8 inch prep?
Standard is a 2-3/4 inch backset. Extension links are available to order for 2-3/8 inch, 3-3/4 inch and 5 inch backsets, so an existing 2-3/8 inch bore can be matched, but that has to be specified at order time rather than adjusted in the field.
2) Do I have to specify handing for the 5307LN Pacific Beach lever?
No handing to specify. The 5307LN is non-handed and reversible, and the front is universal for both flat and beveled door edges, so one part number covers left and right hand openings. The strike is reversible too.
3) Can the Accentra 5307LN be used on a fire rated door?
Yes. The 5307LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 2 certified. It's also listed as windstorm certified, though local code governs that application.
4) Will the 5307LN latch into the strike already in my frame?
It ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, and the latchbolt throws 1/2 inch. If your existing frame prep uses a different lip length, other lip lengths can be ordered, and all of them are reversible. Where the frame has a deep reveal or an applied stop, measure from the strike centerline to the door face and order the lip to suit rather than forcing the supplied one.
5) Can I use an Accentra 5307LN on a 1-3/8 inch door, and if not what fits?
The 5307LN Pacific Beach adjusts from 1-3/4 inch to 2 inch as supplied, with 1-3/4 inch or 2-1/4 inch versions available to order. On a thinner 1-3/8 inch door, choose a lock whose published range starts there: the Hager 2525 Grade 2 entry lever covers 1-3/8 inch to 2 inch, the Cal-Royal AG00 entrance lever with 6-pin Schlage C keyway covers 1-3/8 inch to 1-3/4 inch, and the Arrow HK11 turn-pushbutton entrance lock fits 1-3/8 inch to 1-3/4 inch with a ball knob rather than a lever.
6) What do I use on a classroom door instead of the Accentra 5307LN entrance lock?
An entrance function like the 5307LN Pacific Beach lets the outside lever be left unlocked, which is not how a classroom door is usually specified. For that opening, the Cal-Royal AG03 classroom lever in the AG series is a Grade 2 lever with a 6-pin Schlage C keyway and 2-3/4 inch backset, matching the 2-3/4 inch standard backset on the 5307LN. At Grade 1, the Dexter C1000 classroom and classroom security levers are clutching and keyed for 1-3/8 inch to 1-3/4 inch doors.
7) What is the closest Grade 2 cylindrical entrance lever lock to the Accentra 5307LN Pacific Beach from another brand?
The Hager 2525 is the nearest match. Both are Grade 2 cylindrical lever locks with an entrance function, so they serve the same keyed office or tenant door. The Accentra 5307LN is adjustable for 1-3/4 inch to 2 inch doors, while the Hager 2525 covers 1-3/8 inch to 2 inch, which is the difference to check against your door thickness. The Falcon B511CP6D is another Grade 2 lever in the same territory, catalogued as an entry/office function and rated medium duty.
8) I need a heavier lock than the Accentra 5307LN for a high traffic opening - what steps up?
The Accentra 5307LN Pacific Beach is ANSI/BHMA A156.2 Series 4000 Grade 2. For a Grade 1 cylindrical lever on the same door prep, the Corbin Russwin CL3100 series CL3110 is Grade 1, fire rated, and fits 1-3/4 inch to 2 inch doors like the 5307LN, though it is a passage function with no key. If the opening needs to stay keyed at Grade 1, the Dexter C1000 series covers classroom and classroom security functions for 1-3/8 inch to 1-3/4 inch doors, and the Falcon K series K101 is a Grade 1 heavy duty non-keyed lever with a wider 1-3/8 inch to 2-1/4 inch thickness range.
9) What should I use instead of the Accentra 5307LN on a storeroom or supply closet door?
The 5307LN Pacific Beach is an entrance function, so the outside lever unlocks by key and can be left unlocked - not what you want on a storeroom door that must stay secured at all times. For that opening, the Hager 2580 Withnell storeroom lever is Grade 2 for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Both keep the outside lever locked with key access only.
10) Is a Grade 3 entrance lever like the Callan Artino a substitute for the Accentra 5307LN?
They share the entrance function but not the duty rating. The Accentra 5307LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2 and UL/cUL fire rated up to 3 hours, which is what a commercial or institutional spec typically calls for. The Callan Artino and the Callan Bennett are Grade 3 entrance leversets, and the Cal-Royal AUS00 entrance/office lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors. Grade 3 products suit lighter residential-style openings; if the drawing or facility standard says Grade 2, they do not meet it.
11) What cylinder and keying comes with the Accentra 5307LN, and can I get it 7-pin?
A brass 6-pin keyed-random cylinder with two keys is furnished standard. 7-pin is not available on the 5300LN series, so if your facility is standardized on a 7-pin master key system this lock won't join it. Lead shielding is also not offered, which rules it out for X-ray room doors.
12) Which finishes does the Accentra 5307LN Pacific Beach lever come in, and which hold up best outdoors?
Ten orderable finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606 and is offered for 613, so those are the ones to pick for exterior or high-touch openings where a plated brass finish would wear through.
13) Is Grade 2 enough for a school or hospital corridor, or should I be looking at Grade 1?
Grade 2 to ANSI/BHMA A156.2 Series 4000 is a medium duty commercial rating and the 5307LN is built for commercial, institutional and industrial openings with a heavy-gauge steel, zinc-plated dichromated mechanism. On very high traffic openings many specs call for Grade 1 instead. If the drawing says Grade 1 cylindrical, look at the Corbin Russwin CL3100 series (vandal resistant, fire rated, 1-3/4 inch to 2 inch doors) or the Falcon K Series, both Grade 1 heavy duty.
14) I need matching passage and privacy levers for the rest of the suite. What pairs with a Grade 2 entry lever like this?
The 5307LN is the keyed entrance function only, so the non-keyed openings in the same suite need separate locksets. Within Grade 2 cylindrical, the Falcon B101 covers passage/hall/closet and the Hager 2540 and Arrow MK02-TA cover privacy. Keeping trim identical across an opening group usually means staying inside one manufacturer's series, since lever designs do not cross brands.
15) The door does not need to lock - what matches the Accentra 5307LN Pacific Beach in a passage version?
The 5307LN is a keyed single cylinder entrance lock, so for an unkeyed hall or closet door you want a passage lever instead. Comparable Grade 2 passage cylindrical levers include the Arrow GL01 Sierra lever, which shares the 1-3/4 inch to 2 inch door range the 5307LN is adjustable to, the Falcon B101 non-handed Grade 2 medium duty lever, and the Hager 2510 Withnell passage lever for 1-3/8 inch to 2 inch doors. The Design Hardware J75 flat lever is a Grade 2 passage set built for 1-3/4 inch doors only.
16) We want to get rid of keys - what keyless lever replaces an Accentra 5307LN entrance lock?
The 5307LN Pacific Beach is keyed, furnished with a brass 6-pin keyed-random cylinder and two keys. To go keyless on the same type of opening, the Delaney LP250 is a Grade 2 electronic keypad leverlock, and Lockey offers mechanical pushbutton levers including the 2835 with passage function for 1 3/16 inch to 2 inch doors and the 1150 heavy duty keypad lever set for 1-1/8 inch to 2 inch doors. Note the Lockey units listed are passage function, so code entry replaces the key rather than adding a keyed override.
17) I need matching inactive trim on a pair of doors alongside Accentra 5307LN locks - what dummy levers are comparable?
The 5307LN is an active keyed lockset, so an inactive leaf needs a dummy trim instead. Comparable cylindrical dummy levers include the BEST 7KC series single dummy trim, a Grade 2 medium duty non-keyed trim, and the BEST 9K series 1DT single dummy trim at Grade 1 heavy duty. Callan also lists the Bentley Grade 2 dummy lever. Dummy trim has no latch, so the inactive leaf will need its own means of securing.
18) Is the Deltana Claremont or Manchester entry lever an alternative to the Accentra 5307LN Pacific Beach?
They fill a different role. The Accentra 5307LN Pacific Beach is a commercial cylindrical lever lock certified to ANSI/BHMA A156.2 Series 4000 Grade 2 with UL/cUL fire rating up to 3 hours, offered in 13 finishes including PVD options. The Deltana 5851 Claremont and 6201 Manchester are entry levers aimed at decorative openings, with the Manchester, Morant and Linstead covering 1-3/8 inch to 2 inch doors. On a fire-rated or code-driven commercial opening, stay with the certified Grade 2 lock.
19) The door needs access control - what electrified lever works where an Accentra 5307LN will not?
The 5307LN Pacific Beach is a mechanical keyed entrance lock with no electrical option. For an opening tied to a card reader or access control panel, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running on 12V AC/DC and fitting 1-3/4 inch to 2 inch doors, the same thickness the 5307LN is adjustable across. Fail safe means the lever unlocks on loss of power, so confirm that matches your egress and security plan before ordering.
20) Is a cylindrical lever lock like the 5307LN the right choice, or do I need a mortise lock?
A cylindrical lock like the 5307LN installs into a bored door prep, which is faster to cut and easier to retrofit than a mortise pocket. It suits commercial office, retail, multi-tenant and institutional entry doors at Grade 2. A mortise lock is the call when the spec demands higher security, a deadbolt in the same case, or a door already mortise-prepped. If the existing doors are bored, stay cylindrical.
