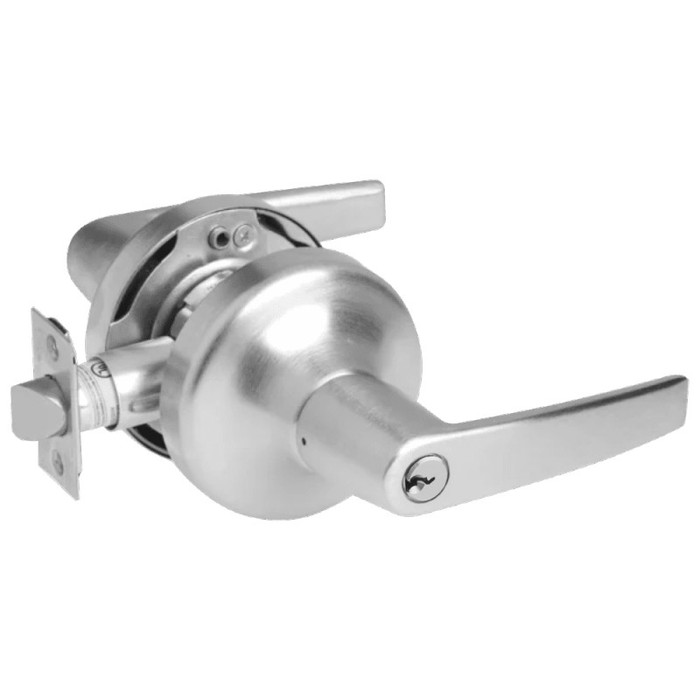

Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock with Monroe Trim Design

Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock with Monroe Trim Design

Heavy-Duty Commercial Grade Cylindrical Lockset

The Accentra 5408LN Grade 1 Classroom Cylindrical Lever Lock delivers professional-grade security and reliability for commercial applications. This heavy-duty lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified with UL/cUL fire rating up to 3 hours, this lockset meets the demanding requirements of educational and commercial facilities.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 1
• UL/cUL: UL/cUL fire-rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, zinc-plated, dichromated
• Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
• Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
• Door Thickness: Adjustable from 1-3/4" to 2-1/4"
• Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
• Lead Shielding: Available to order
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
• Reversibility: Non-handed
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
• Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
• Warranty: 7-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/4", backset requirements, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classroom Security
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Retail Establishments

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and wear-resistant chassis plates rated for Grade 1 performance. The 7-year mechanical warranty provides added confidence for demanding commercial applications. Engineered for educational and commercial facilities where dependable access control and fire safety compliance are essential.
