Yale Commercial Yale 5417LN Augusta Heavy Duty Grade 1 Apartment, Exit, Public Toilet Door Cylindrical Lever Lock YAL-AU-5417LN

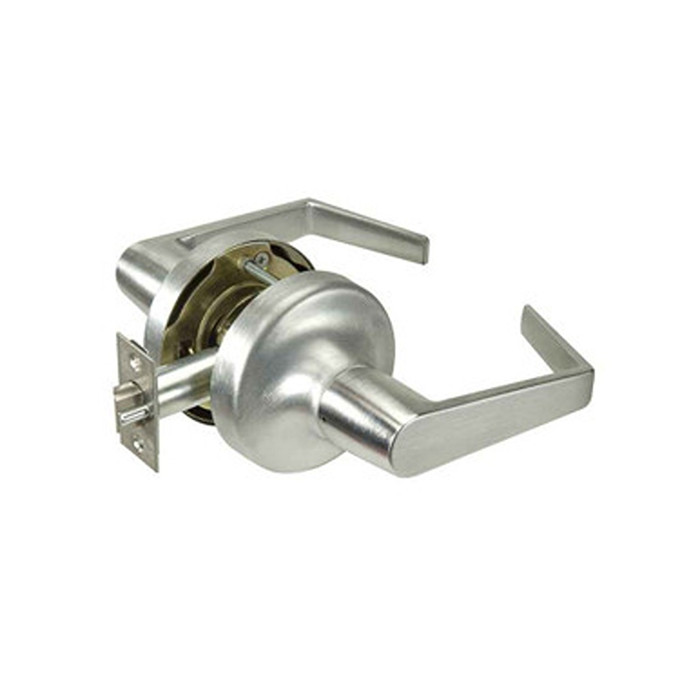

Accentra 5417LN Augusta Heavy Duty Grade 1 Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: AU-5417LN-612
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,048.91
$594.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5417LN Augusta Heavy Duty Grade 1 Cylindrical Lever Lock

Professional Grade 1 Cylindrical Lockset for Commercial Applications

The Accentra 5417LN Augusta leversets deliver heavy-duty Grade 1 performance for demanding commercial and industrial applications. This cylindrical lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw for reliable operation. ANSI/BHMA Grade 1 certified with UL/cUL fire rating up to 3 hours, this lockset provides professional-grade security and durability.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical locksets deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. Backed by a 7-year mechanical warranty and UL/cUL fire rating up to 3 hours, this lockset provides the durability and code compliance required for critical access control applications. Engineered for demanding commercial applications where dependable performance is essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Apartment Exit/Public Toilet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5417LN
Collection:
5400 Series
Product Function:
Apartment Exit/Public Toilet
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra AU-5417LN-612 – Frequently Asked Questions

1) What does the Accentra 5417LN Augusta lock actually do on an apartment entry or public restroom door?
The 5417LN is the apartment exit / public toilet function in Accentra's 5400LN cylindrical line. It is keyed on the outside and always free-egress from the inside, so a tenant or restroom occupant can always get out by turning the lever while the outside stays controlled by the key. A guardbolt deadlocks the latchbolt whenever the door is closed, which is what stops the latch being carded on a corridor door.
2) Will the Accentra 5417LN latch into a strike that's already in my frame?
The standard latchbolt is a 1/2 inch throw stainless bolt with a 2-1/4 x 1-1/8 inch beveled front, and the lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing frame prep uses a different lip length, other lip lengths are available to order and all strikes are reversible. A 3/4 inch latchbolt throw can also be ordered where a deeper throw is needed, and flat fronts are available if your door is prepped flat rather than beveled.
3) Can the 5417LN go on a fire-rated apartment corridor door?
Yes. The Augusta 5417LN is UL/cUL fire rated up to 3 hours and certified to ANSI/BHMA A156.2, Series 4000, Grade 1. It is also windstorm certified, though you should check that against your local code before you specify it on a shelter opening.
4) I need a heavy duty Grade 1 lever lock but my doors are 1-3/8 inch. What should I use instead of the 5417LN?
The 5417LN starts at 1-3/4 inch, so it will not work on a 1-3/8 inch door. The Falcon K101 is a Grade 1 heavy duty cylindrical lever that covers 1-3/8 inch to 2-1/4 inch and is fire rated, though it is a passage function with no key. For a keyed Grade 1 on thin doors, the Dexter C1000 Classroom covers 1-3/8 inch to 1-3/4 inch.
5) What Grade 1 cylindrical lever lock works on a 2-1/4 inch thick door if the Accentra 5417LN Augusta is not available?
The Accentra 5417LN Augusta adjusts from 1-3/4 inch to 2-1/4 inch door thickness. Among Grade 1 cylindrical lever locks, the Falcon K101 covers 1-3/8 inch to 2-1/4 inch, so it reaches the same maximum thickness; note the K101 is a passage function rather than the 5417LN's apartment exit/public toilet function. Corbin Russwin CL3110 Grade 1 stops at 2 inches, so it will not cover a 2-1/4 inch door.
6) Is a privacy or passage leverset a substitute for the Accentra 5417LN Augusta on a public restroom door?
Not directly. The 5417LN Augusta is an apartment exit/public toilet function lock, which handles the locking behavior that function calls for. A privacy set such as the Arrow MK02-TA or the Hager 2540 is a different function, and a passage set such as the Falcon K101 or Design Hardware X75 does not lock at all. If the opening needs the apartment exit/public toilet function, those are not equivalents.
7) What looks like an Accentra 5417LN Augusta but will not lock a door?
Dummy trim. The BEST 9K Series 1DT single dummy is a Grade 1 non-keyed dummy trim, the BEST 7KC 1DT is a Grade 2 dummy, and the Callan Bentley BN5051 is a Grade 2 dummy lever. They present the same lever appearance but have no latch or locking mechanism, unlike the 5417LN Augusta, which has a 1/2 inch stainless steel latchbolt throw and a guardbolt that deadlocks the latchbolt when the door is closed.
8) Is the Accentra 5417LN handed? I don't know the swing on the doors yet.
Non-handed. The 5417LN installs on either hand without parts changes, and the strike is reversible too, so you can order for a building without recording swing on every opening.
9) What keying do I get with the Accentra 5417LN, and can it go on my master key system?
Standard is a brass 6-pin keyed-random cylinder with two keys. A 7-pin cylinder is available to order, which is what you would typically use to tie the lock into an existing master key system. Specify the keyway and keying arrangement at order time rather than assuming keyed-random.
10) What are my other Grade 1 cylindrical lever options if I'm not tied to Accentra?
Within Grade 1 cylindrical levers, the Corbin Russwin CL3110 is a vandal-resistant, fire-rated passage lock for 1-3/4 to 2 inch doors, and the Corbin Russwin CL33903 is the electrified fail-safe lever at 12VAC/DC for the same thickness range if the opening needs access control. The BEST 9K Series 1DT is the Grade 1 dummy trim for the inactive leaf. The 5417LN differs from all of these in function: it is the keyed apartment exit / public toilet lock, adjustable to 2-1/4 inch.
11) Is a Grade 2 lever lock enough for apartment corridor doors, or do I need this Grade 1?
For multi-tenant corridors and public restrooms with constant traffic, Grade 1 is the commercial standard and what the 5417LN carries under ANSI/BHMA A156.2 Series 4000, with a heavy-gauge steel, zinc-plated and dichromated mechanism. Grade 2 levers like the Hager 2525 entry or Falcon B511CP6D entry/office are medium-duty and are more at home on interior office and tenant-side doors than on a shared corridor. Grade 3 options such as the Cal-Royal AUS00 are residential-level duty.
12) What do I need to confirm before ordering the 5417LN for a job?
Four things decide the order: door thickness within 1-3/4 to 2-1/4 inch, backset (2-3/4 inch standard, or specify a 3-3/4 or 5 inch extension link), front type (2-1/4 x 1-1/8 beveled is standard, flat available), and strike lip length against your existing frame. Then the finish and the cylinder arrangement. Handing you can skip, since the lock is non-handed.
13) What is the closest fire-rated Grade 1 cylindrical lever lock to the Accentra 5417LN Augusta?
The Accentra 5417LN Augusta is ANSI/BHMA A156.2 Series 4000 Grade 1 with UL/cUL fire rating up to 3 hours. Among Grade 1 cylindrical lever locks carrying a fire rating, the Corbin Russwin CL3110 of the CL3100 Series is fire rated and vandal resistant, and the Falcon K101 of the K Series is Grade 1, heavy duty and fire rated. Both are passage/closet function, so match the function separately.
14) Which lock should I use instead of the Accentra 5417LN Augusta for a classroom or institutional door?
The 5417LN Augusta is an apartment exit/public toilet function lever lock. For a classroom opening, the Dexter C1000 classroom is Grade 1 with a clutching keyed lever, and the C1000 classroom security version is also Grade 1. For a patient or utility room, the Dexter C1000 asylum (F87) is Grade 1 and covers 1-3/8 inch to 2 inch doors.
15) Is a keypad or keyless lever lock an alternative to the Accentra 5417LN Augusta?
They serve different access needs. The 5417LN Augusta is a keyed cylindrical lockset with a brass 6-pin keyed-random cylinder and two keys furnished, so it fits key-based apartment and restroom programs. Keyless options include the Lockey 2835 mechanical pushbutton lever lock with passage function for 1 3/16 inch to 2 inch doors, the Lockey 1150 heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, and the Delaney LP250 electronic keypad leverlock at Grade 2. None of these are keyed cylinder locks in an apartment exit/public toilet function.
16) If the opening needs electric access control, what replaces the Accentra 5417LN Augusta?
The 5417LN Augusta is a mechanical cylindrical lockset with no electrified option in its makeup. For an electrically controlled cylindrical lever, the Corbin Russwin CL33903 is a Grade 1 fail safe lever at 12VAC/DC for 1-3/4 inch to 2 inch doors. Door thickness is the detail to watch, since the 5417LN adjusts to 2-1/4 inch and the CL33903 stops at 2 inch.
17) Is a residential-grade lever set comparable to the Accentra 5417LN Augusta for multi-family use?
The 5417LN Augusta is specified commercial and Grade 1. Residential-leaning lever sets in the same style include the Kwikset 200BRNL Breton passage and 300BRNL Breton privacy, both Grade 3 for 1-3/8 inch to 1-3/4 inch doors, the Callan Artino entrance at Grade 3, and the Master Lock RL Series keyed entry at Grade 3. Those are a different grade and a narrower door thickness range than the 5417LN, which adjusts to 2-1/4 inch.
18) Will a lever trim for an exit device work in place of the Accentra 5417LN Augusta?
No. The 5417LN Augusta is a complete cylindrical lockset with latchbolt, guardbolt, strike and cylinder. The Corbin Russwin 585F715 is a lock lever for the ED8000 pushpad exit device, and the Imperial USA ED-EL500HD is heavy duty escutcheon lever trim in entry function. Both are trim that mounts to an exit device rather than a bored lockset for a standard 2-3/4 inch backset prep.
19) What finishes does the Augusta 5417LN lever come in for matching the rest of a building?
Nine finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus black suede and white suede powder coat. PVD is standard on 605 and 606, which is what you want on high-touch apartment and restroom levers where plated brass would wear through.
20) Does the Accentra 5417LN come in a lead-lined version for an X-ray room?
Lead shielding is an order option on the 5417LN, so it can be specified for radiology and imaging doors rather than substituting a different lockset. It has to be called out on the order; it is not part of the standard build.
