Yale Commercial Yale 5417LN Pacific Beach Heavy Duty Grade 1 Apartment, Exit, Public Toilet Door Cylindrical Lever Lock YAL-PB-5417LN

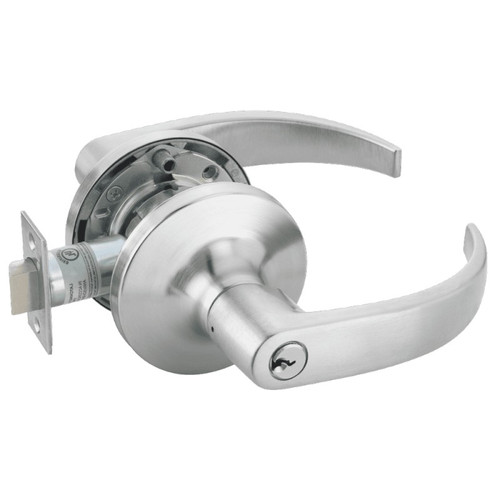

Accentra 5417LN Apartment/Exit Pacific Beach Heavy Duty Grade 1 Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: PB-5417LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,031.75
$612.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5417LN Pacific Beach Heavy Duty Grade 1 Cylindrical Lever Lock

Professional Grade 1 Cylindrical Lockset for Commercial Applications

The Accentra 5417LN Pacific Beach lever lock delivers heavy-duty Grade 1 performance for apartment exit and public toilet door applications. This commercial-grade cylindrical lockset features a 2-3/4" standard backset with adjustable door thickness accommodation from 1-3/4" to 2-1/4". Built with heavy-gauge steel mechanism and 1/2" stainless steel latchbolt throw, this ANSI/BHMA A156.2 Series 4000 Grade 1 certified lockset provides reliable access control for demanding commercial environments.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Apartment Building Entry and Exit Doors
  • Public Restroom Facilities
  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the manufacturer's commitment to quality and code compliance. Engineered for high-traffic environments where dependable access control and long-term performance are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Apartment Exit/Public Toilet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5422LN
Collection:
5400 Series
Product Function:
Apartment Exit/Public Toilet
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5417LN-626 – Frequently Asked Questions

1) What does the Apartment/Exit function on the Accentra 5417LN actually do at the door?
It is an exit/public toilet function lock: the lever on the inside always retracts the latch for free egress, and the outside side is controlled without requiring a key to get out. That is why it shows up on apartment corridor exit doors and public restrooms rather than on a storeroom or classroom opening, where you want key control from the outside. The 5417LN is a Grade 1 cylindrical lever lock in the Accentra 5400 Series.
2) Will the 5417LN fit a 2 inch thick door, or only a standard 1-3/4 inch?
Both. The 5417LN adjusts for door thicknesses from 1-3/4 inches up to 2-1/4 inches, so a 2 inch door is covered with no special order. What it will not do is go thinner than 1-3/4 inches, so an older 1-3/8 inch interior door is out of range. For that thickness the Falcon K101 Grade 1 cylindrical covers 1-3/8 to 2-1/4 inches.
3) My doors are bored 2-3/8 inch backset. Can I use this lock?
No. The 5417LN is built around a 2-3/4 inch backset as standard, which is the usual commercial bore. It is not offered as a 2-3/8 inch lock; the extension links that are available take it the other way, out to 3-3/4 inches or 5 inches for wide stile or fire door applications. If your openings are prepped at 2-3/8 inches, look at a 2-3/8 inch backset lever such as the Cal-Royal AG00 instead.
4) Will the 5417LN latch into the strikes already in my frames?
The standard latchbolt throws 1/2 inch in stainless steel, which is the usual cylindrical throw and will engage a normal ASA or T-strike prep. The lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, and other lip lengths can be ordered if your frame is set back or you are on a thicker door. A 3/4 inch throw is also available to order if you have a gap issue. All strikes are reversible, so frame handing is not a factor.
5) Can this lever lock go on a fire rated apartment corridor door?
Yes. The 5417LN carries UL/cUL fire ratings up to 3 hours and is certified to ANSI/BHMA A156.2, Series 4000, Grade 1. It also carries windstorm certification, subject to your local code. The guardbolt deadlocks the latchbolt when the door closes, which is what a positive latching requirement on a rated opening is looking for.
6) What cylinder and keying comes with the Accentra 5417LN, and can I key it into my building system?
As furnished it comes with a brass 6-pin cylinder, keyed random, with two keys. A 7-pin cylinder is available to order, which is what you need if you are tying the lock into an existing 7-pin master key system. Other cylinder and keying arrangements are order options rather than stock configuration, so specify the keyway and keying at the time of order rather than trying to change it in the field.
7) What options should I call out at order time on the 5417LN besides finish?
Beyond finish, the order-time choices are: backset (2-3/4 inch standard, or a 3-3/4 inch or 5 inch extension link), latchbolt throw (1/2 inch standard, 3/4 inch optional), front style (2-1/4 x 1-1/8 inch beveled standard, flat fronts optional), strike lip length beyond the standard 1-1/4 inch curved lip, cylinder pinning (6-pin standard, 7-pin optional) and keying, and lead shielding for x-ray rooms. None of those are field changes, so decide them before the PO goes in.
8) Is a Grade 2 lever lock like the Hager 2525 or Falcon B511 an acceptable substitute for the Accentra 5417LN on apartment doors?
They are different specifications in two ways. The Accentra 5417LN is certified to ANSI/BHMA A156.2 Series 4000 Grade 1 and carries a UL/cUL fire rating up to 3 hours with an apartment exit / public toilet function. The Hager 2525 is a Grade 2 cylindrical entry lock and the Falcon B511CP6D is a Grade 2 medium-duty entrance/office lever - both are entrance function, not apartment exit, so the inside lever behavior and outside key operation differ. If your spec calls out Grade 1 apartment exit, those two do not meet it.
9) What is a Grade 1 alternative to the Accentra 5417LN for a storeroom door instead of an apartment exit or public toilet opening?
The Accentra 5417LN Pacific Beach is built for the apartment exit / public toilet function, so it is not the right lock where the outside lever must stay locked at all times and key entry is required. For a storeroom opening, the Cal-Royal AG05 is a storeroom-function lever lockset with a deadlocking latchbolt, though it is a Grade 2 lockset rather than Grade 1. The Hager 2580 is also a storeroom-function cylindrical lock with the Withnell lever at Grade 2. If Grade 1 is a hard requirement on the storeroom door, none of those match the 5417LN's ANSI/BHMA A156.2 Series 4000 Grade 1 certification, so specify a Grade 1 storeroom function from the 5400 Series instead of cross-switching.
10) Which Grade 1 lever lock should I use on the corridor doors that do not need to lock, if I am using the Accentra 5417LN elsewhere in the building?
For non-locking corridor, hall or closet openings alongside 5417LN apartment exit doors, the Grade 1 passage options are the Falcon K101, a Grade 1 heavy-duty passage cylindrical lock with non-handed levers rated for 1-3/8 inch to 2-1/4 inch doors and fire rated; the Falcon T101, a Grade 1 heavy-duty passage lever with pressure release technology; the Dexter C1000 passage, Grade 1 clutching and non-keyed for 1-3/8 inch to 1-3/4 inch doors; and the Corbin Russwin CL3110, a Grade 1 vandal-resistant passage/closet lever for 1-3/4 inch to 2 inch doors. All hold the same Grade 1 level as the 5417LN, so the building stays on one grade.
11) What should I use instead of the Accentra 5417LN if the opening needs to release on a fire alarm or be controlled from an access system?
The 5417LN Pacific Beach is a mechanical cylindrical lever lock, so it has no electrical control. For an electrified opening, the Corbin Russwin CL33903 is a Grade 1 fail-safe electrified cylindrical lever lock in 12VAC/DC for 1-3/4 inch to 2 inch doors, available with the NZ lever and D rose. It holds the same Grade 1 level as the 5417LN while adding the fail-safe electrical function, though its door thickness range stops at 2 inch where the 5417LN goes to 2-1/4 inch.
12) Do I need to specify handing when ordering the Accentra 5417LN?
No handing to call out. The 5417LN is non-handed and the strike is reversible, so one part number covers left and right hand openings. For a property manager buying a batch across a building, that means you are not sorting stock by door swing on install day.
13) What finishes does the Pacific Beach 5417LN come in?
Nine finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus black suede powder coat (BSP) and white suede powder coat (WSP). PVD is standard on 605 and 606, so those two hold up better in an exterior or high-touch corridor than a lacquered brass would. 626 satin chrome is the usual match if the rest of the building is already commercial 26D.
14) Is the Pacific Beach lever the same mechanism as other 5400LN levers, or a different lock?
Pacific Beach is the lever design; the lock body underneath is the Accentra 5400 Series cylindrical chassis with a heavy-gauge steel, zinc-plated and dichromated mechanism. So if you already have 5400LN locks in the building on other functions, the Pacific Beach 5417LN shares the same chassis, prep, and 2-3/4 inch backset, and only the lever style and function differ.
15) I need a Grade 1 cylindrical lever but not the apartment/exit function. What are the alternatives?
The 5417LN only covers the apartment exit and public toilet function. For other functions at Grade 1 in a cylindrical lever, the Corbin Russwin CL3110 is a Grade 1 passage lever rated for 1-3/4 to 2 inch doors, the Dexter C1000 is offered in classroom, classroom security, asylum and passage versions, and the Falcon K101 is a Grade 1 fire rated passage lever covering 1-3/8 to 2-1/4 inch doors. Match the function to the door role first, then the finish.
16) I need a privacy lock for the restroom instead of the Accentra 5417LN public toilet function - what are the options?
The 5417LN Pacific Beach is the apartment exit / public toilet function, which is key-operated from the outside rather than an inside thumbturn privacy set. If you want a true privacy function for a single-occupancy restroom, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob, non-keyed and fire rated for 1-3/4 inch to 2 inch doors. Note the Arrow is a knob rather than a lever, which matters if you are holding to lever hardware for ADA.
17) What is the difference between the Accentra 5417LN and a keypad lever lock like the Lockey 2835 or Delaney LP250?
The Accentra 5417LN Pacific Beach is a keyed cylindrical lever lock with a brass 6-pin keyed-random cylinder and two keys furnished, in the apartment exit / public toilet function at Grade 1. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Those remove the key entirely and change the function to code entry, which suits tenant-turnover doors but does not give you the keyed apartment exit operation or the Grade 1 certification of the 5417LN.
18) I need matching dummy trim to go with Accentra 5417LN locks on inactive leaves - what works?
A dummy lever has no latch and is surface-mounted for pull-only leaves, so it is a different part from the 5417LN, which is a keyed cylindrical lockset with a 1/2 inch stainless steel latchbolt throw. For Grade 1 dummy trim, the BEST 9K Series 1DT is a single dummy trim cylindrical lever in Grade 1 heavy duty; the BEST 7KC Series 1DT is the medium-duty Grade 2 equivalent. Lever style and finish will not match the Pacific Beach lever exactly, so if appearance across the opening matters, specify 5400 Series dummy trim rather than cross-brand.
19) Can I use a residential lever like the Kwikset 200BRNL or Callan Asheville in place of the Accentra 5417LN in an apartment building?
Only on interior unit doors, not on the corridor or exit openings. The Accentra 5417LN is a commercial Grade 1 cylindrical lockset with a UL/cUL fire rating up to 3 hours and a heavy-gauge steel mechanism. The Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors and the Callan Asheville is a Grade 3 passage leverset - both are non-keyed passage function at a lighter grade. They will not satisfy a Grade 1 or fire-rated requirement on an apartment exit door.
20) What is a Grade 1 lever option for a psychiatric or utility room door where the Accentra 5417LN function is wrong?
Asylum and institution function locks key from both sides with no free egress lever, which is different from the 5417LN Pacific Beach apartment exit / public toilet function. The Dexter C1000 asylum (F87) is a Grade 1 cylindrical lock in that function for 1-3/8 inch to 2 inch doors. The Arrow MK33-BD-CS is also an asylum/institution/utility cylindrical lock, heavy duty with a conventional Schlage C keyway cylinder, but it uses a ball knob rather than a lever and is Grade 2.
21) Is the Design Hardware X75 the same kind of Grade 1 lever lock as the Accentra 5417LN?
Both are Grade 1 lever locksets, but they cover different openings. The Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever, listed for 1-3/4 inch doors, so it latches but never locks. The Accentra 5417LN is the apartment exit / public toilet function with a keyed brass 6-pin cylinder, a guardbolt that deadlocks the latchbolt when the door is closed, and adjustment from 1-3/4 inch to 2-1/4 inch door thickness. The X75's sibling J75 is the Grade 2 version of the same passage lever.
22) Is a healthcare imaging room a use case for this lock?
It can be. Lead shielding is available to order on the 5400LN cylindrical locks, which is what an x-ray or imaging suite door needs so the lock prep does not become a gap in the shielding. Specify it with the order; it is not something added afterward.
