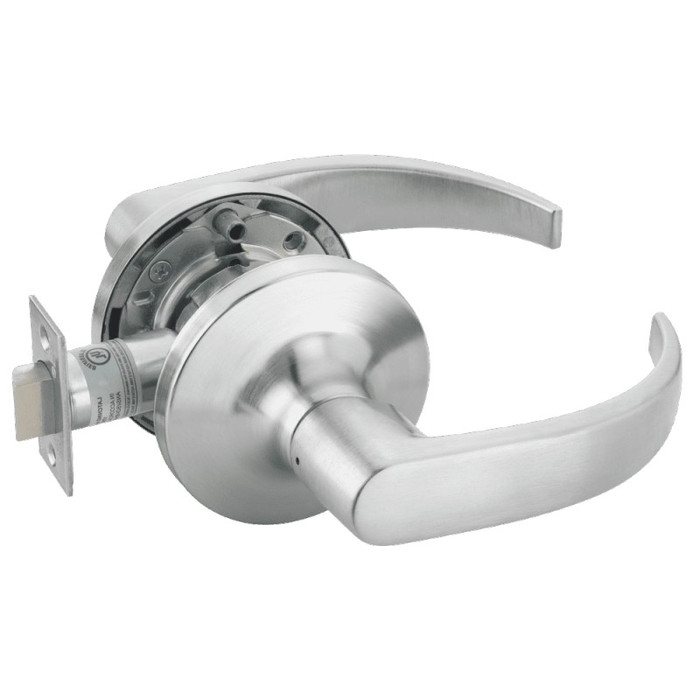

Yale Commercial Yale 5409LN Pacific Beach Heavy Duty Grade 1 Exit Latch Cylindrical Lever Lock YAL-PB-5409LN

Accentra 5409LN Pacific Beach Heavy Duty Grade 1 Exit Latch Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: PB-5409LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$851.57
$650.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5409LN Pacific Beach Heavy Duty Grade 1 Exit Latch Cylindrical Lever Lock

Professional Grade 1 Cylindrical Lever Lock Solution

The Accentra 5409LN Pacific Beach lever lock delivers heavy-duty Grade 1 performance for demanding commercial and industrial applications. This cylindrical lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA A156.2 Series 4000 Grade 1 certified with UL/cUL fire rating up to 3 hours for reliable access control in high-traffic environments.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the quality engineering behind this lockset. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Exit Only
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5409LN
Collection:
5400 Series
Product Function:
Exit
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5409LN-626 – Frequently Asked Questions

1) What does the 5409LN exit function actually do, and is there a key cylinder on it?
The Accentra 5409LN Pacific Beach is an exit-only lockset: there is no outside trim operation and no keyed cylinder function on the outside. Turning the inside lever retracts the latch to let people out at all times. Use it where you need free egress from a room or stairwell but no entry from the corridor side. If someone needs to key in from outside, this is the wrong function and you want a storeroom or classroom lever instead.
2) Do I have to order the Accentra 5409LN left or right handed?
No handing to specify. The 5409LN is non-handed and the strike is reversible as well, so one part number covers both swings. For a property manager stocking spares across a building, that means a single shelf item for every opening rather than a left and a right.
3) Will the 5409LN drop into my existing 2-3/4 inch backset door prep?
It ships with the 2-3/4 inch backset standard, which is the usual commercial bore layout, so an existing Grade 1 cylindrical prep normally takes it directly. The standard latch front is 2-1/4 x 1-1/8 inches beveled, and the standard strike is a 1-1/4 inch curved lip sized for a 1-3/4 inch door. If your door was bored at a deeper backset, 3-3/4 inch and 5 inch extension links can be ordered.
4) Can the Accentra 5409LN go on a fire rated door?
Yes. The 5409LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 1. It is also certified for windstorm applications, though you should check that against your local code for the specific opening. For a hospital or school where the whole corridor has to be rated, this function covers the egress-only openings within the same series.
5) My door is 2-1/4 inches thick. Which levers besides the Accentra 5409LN will fit?
The 5409LN Pacific Beach adjusts from 1-3/4 inch to 2-1/4 inch, which covers thick commercial doors most cylindrical locks miss. Among comparable cylindrical levers, the Falcon K101 Grade 1 passage lock also spans 1-3/8 inch to 2-1/4 inch. Most others stop short: the Corbin Russwin CL3110 and CL33903 cover 1-3/4 inch to 2 inch, the Hager 2525 covers 1-3/8 inch to 2 inch, and the Design Hardware X75 is 1-3/4 inch only. Measure the leaf before ordering a substitute.
6) What is the closest Grade 1 cylindrical lever alternative to the Accentra 5409LN for a non-keyed opening?
The Accentra 5409LN Pacific Beach is a Grade 1 cylindrical lever lock with an exit-only function, so the lever always retracts the latch with no outside key control. If you want a Grade 1 cylindrical lever that is free-operating from both sides instead, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, and covers 1-3/8 inch to 2-1/4 inch doors. The Corbin Russwin CL3110 is another Grade 1 passage/closet cylindrical lever, vandal resistant and fire rated, for 1-3/4 inch to 2 inch doors. Both are Grade 1 like the 5409LN; the difference is trim on both faces versus the 5409LN exit configuration.
7) If the opening needs key control from the outside, what should I use instead of the 5409LN?
The 5409LN Pacific Beach is exit-only, so it provides no outside key function. For keyed control on a cylindrical lever, the Cal-Royal AG05 is a Grade 2 storeroom leverset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors. For Grade 1 keyed classroom control, the Dexter C1000 classroom lever is clutching and keyed for 1-3/8 inch to 1-3/4 inch doors. Check the door thickness against those ranges, since the 5409LN adjusts to 2-1/4 inch and these do not.
8) Will a dummy lever work in place of the 5409LN exit lockset?
No. The 5409LN Pacific Beach is a cylindrical lockset with a working latch, listed with a 1/2 inch stainless steel latchbolt throw and a 2-3/4 inch backset, so the lever actually retracts the latch. A dummy trim such as the BEST 9K Series 1DT single dummy, a Grade 1 non-keyed heavy duty trim, or the BEST 7KC Series 1DT Grade 2 medium duty dummy is a fixed pull with no latch mechanism and no door bore for a latch. Use a dummy only on an inactive leaf or a door held by a ball catch, not on an opening that must latch.
9) What is the Grade 1 alternative to the Accentra 5409LN if I need the lock electrified for access control?
The 5409LN Pacific Beach is a mechanical Grade 1 cylindrical lever with no electrified option in the 5400 Series configuration. For an electrified cylindrical lever at the same Grade 1 level, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock at 12VAC/DC for 1-3/4 inch to 2 inch doors. Confirm your door thickness first, since the 5409LN adjusts up to 2-1/4 inch and the CL33903 tops out at 2 inch.
10) Is a 1/2 inch latchbolt throw enough, or should I order the 3/4 inch?
Standard on the 5409LN is a 1/2 inch stainless steel throw, which latches into a normal frame strike with typical gaps. Order the optional 3/4 inch throw when the door-to-frame gap is wide, the frame is out of plumb, or a pair of doors has an oversized meeting gap. A guardbolt is included on locking functions and deadlocks the latchbolt when the door closes, so the latch cannot be loided.
11) What is inside the 5409LN, and will it hold up in a school corridor?
The chassis is heavy-gauge steel, zinc plated and dichromated, and the lock meets Grade 1 under A156.2 Series 4000, which is the highest cylindrical grade and what you want on high-cycle doors in schools, hospitals, and warehouses. The latchbolt itself is stainless steel. Grade 2 leversets like the Hager 2510 or Falcon B101 are medium duty and better suited to lighter interior traffic.
12) Is the exit function the same thing as a passage lever?
Close in operation, different in intent. Both let the lever turn freely from the inside, but the 5409LN is catalogued as exit only and carries the Grade 1 cylindrical chassis with a guardbolt on locking functions. A true passage lock is non-keyed on both sides for hall and closet doors, like the Corbin Russwin CL3110 or Falcon K101, both Grade 1. If the door needs to be operable from both sides equally, spec a passage function rather than exit.
13) Do I need to order strikes or cylinders separately for the 5409LN?
The standard 1-1/4 inch curved lip strike is included, and locking functions come with a brass 6-pin keyed-random cylinder and two keys. Options you specify at order time rather than receiving by default: 7-pin cylinders, flat fronts instead of the beveled 2-1/4 x 1-1/8, other strike lip lengths for deep frame reveals, the 3/4 inch latchbolt, backset extension links, and lead shielding for X-ray rooms.
14) I need lead lining for an X-ray room door. Does this lock offer that?
Lead shielding is an available order option on the 5409LN, which is what lets it go on a lead-lined radiology or imaging room door without breaking the shielding envelope at the lock prep. Specify it on the order; it is not part of the standard build.
15) Can I standardize a whole facility on the 5400 Series and still cover keyed openings?
Yes. The 5409LN is the exit-only function within the Accentra 5400 Series cylindrical lever line, so the levers, roses, and chassis footprint match across the other functions in the same series. That gives you one lever design, the Pacific Beach, across corridor, storeroom, and exit openings with a common prep and common 2-3/4 inch backset.
16) Is there a lighter duty lever I can use instead of the Grade 1 Accentra 5409LN on low-traffic doors?
Yes. The 5409LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 1 for high-traffic commercial use. Where that level is more than the door needs, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, the Hager 2510 is a Grade 2 passage cylindrical lever with the Withnell design for 1-3/8 inch to 2 inch doors, and the Design Hardware J75 is a Grade 2 passage lever lockset with a flat lever for 1-3/4 inch doors. All three are free-operating rather than exit-only.
17) Can I use a keypad leverset instead of the 5409LN for coded access?
Only if the door does not need the 5409LN duty level. The Accentra 5409LN Pacific Beach is ANSI/BHMA A156.2 Series 4000 Grade 1 with UL/cUL fire rating up to 3 hours. Mechanical keypad options include the Lockey 1150 heavy duty keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors, and the Lockey 2835 keyless pushbutton lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors. The Delaney LP250 is an electronic keypad leverlock at Grade 2. None of these carry the 5409LN exit-only configuration, so verify code requirements on a fire-rated opening before substituting.
18) What should I specify instead of the 5409LN on a patient room or detention-type door?
The 5409LN Pacific Beach is an exit-only lever, which gives free egress but no asylum-type dual-cylinder control. For an institutional opening, the Dexter C1000 asylum lock is a Grade 1 cylindrical lock with the F87 asylum function for 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a heavy duty asylum/institution/utility cylindrical lock with a ball knob and a conventional Schlage C keyway. The Arrow uses a knob rather than a lever, so on an ADA-governed opening the Dexter lever version is the closer match to the 5409LN lever trim.
19) Is the Corbin Russwin 585F715 lever a substitute for the Accentra 5409LN?
No, they solve different problems. The 5409LN Pacific Beach is a complete cylindrical lockset with its own latch, 2-3/4 inch backset, and strike. The Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device in the CL3300 cylindrical lock series, covering 1-3/4 inch to 2 inch doors, which means it is outside trim mounted to an exit device rather than a standalone lock. The Imperial USA ED-EL500HD is likewise heavy duty escutcheon lever trim with entry function for an exit device. Order those only when a panic device is already on the door.
20) What is the difference between the Accentra 5409LN and the Falcon T101 for a heavy-traffic passage door?
Both are Grade 1 heavy duty cylindrical levers. The Accentra 5409LN Pacific Beach is an exit-only function with a non-handed, reversible design, a 1/2 inch stainless latchbolt, a guardbolt on locking functions, and UL/cUL fire rating up to 3 hours, offered in 13 finishes including PVD options. The Falcon T101 is a Grade 1 heavy duty cylindrical passage lever with pressure release technology in the T Series. Choose on function: the T101 gives plain passage operation, the 5409LN gives exit-only operation with the 5400 Series trim.
21) I need a privacy lever for restrooms on the same project as the 5409LN. What matches?
The 5409LN Pacific Beach is exit-only and has no interior privacy turn, so it is not a restroom lock. For privacy, the Arrow MK02-TA is a fire-rated privacy cylindrical lock, non-keyed, for 1-3/4 inch to 2 inch doors, and the Kwikset 300BRNL Breton privacy lever is a Grade 3 option for 1-3/8 inch to 1-3/4 inch doors. The Arrow uses a Tudor knob rather than a lever, so where lever trim is required for accessibility the Kwikset lever or another lever privacy set is the closer fit.
22) What finishes can I get the Pacific Beach 5409LN lever in?
Nine finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which is what keeps the brass from going dull in a high-traffic entry. Satin chrome 626 is the usual choice when you are matching existing commercial hardware.
