Accentra 5417LN Monroe Heavy D...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,031.75
$612.23

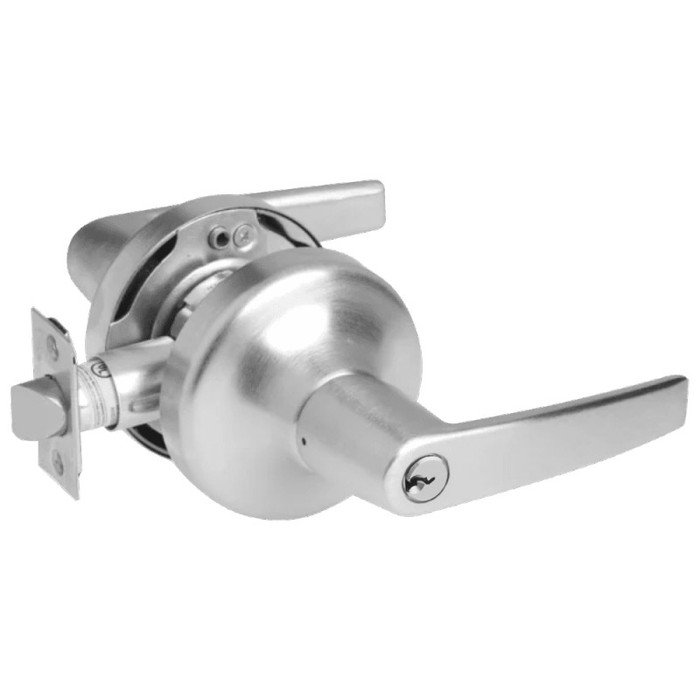

Yale Commercial Yale 5417LN Monroe Heavy Duty Grade 1 Apartment, Exit, Public Toilet Door Cylindrical Lever Lock YAL-MO-5417LN

Accentra 5417LN Monroe Heavy Duty Grade 1 Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: MO-5417LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,031.75
$612.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5417LN Monroe Heavy Duty Grade 1 Cylindrical Lever Lock

Professional Grade 1 Cylindrical Lockset for Commercial Applications

The Accentra 5417LN Monroe cylindrical lever lock delivers Grade 1 performance with heavy-duty construction designed for industrial and commercial use. This apartment exit/public toilet function lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA A156.2 Series 4000 Grade 1 certified with UL/cUL fire rating up to 3 hours for demanding commercial applications.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. Backed by a 7-year mechanical warranty and featuring innovative Free Wheeling lever mechanism with wear-resistant chassis plates. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Apartment Exit/Public Toilet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5417LN
Collection:
5400 Series
Product Function:
Apartment Exit/Public Toilet
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra MO-5417LN-626 – Frequently Asked Questions

1) What does the apartment exit / public toilet function on the Accentra 5417LN actually do?
The 5417LN is a push-button style function used on restroom and apartment corridor doors: it locks from the inside for privacy while the inside lever always retracts the latch for free egress, and the outside can be released with a key. That is why it shows up on public toilets and multi-tenant residential corridors rather than classrooms or storerooms. If you need a keyed-both-sides storeroom or a classroom function, that is a different number in the 5400LN family, not this one.
2) Is the 5417LN a 2-3/4 inch backset lock, and can it work on a wider backset door prep?
Standard backset on the 5417LN Monroe lockset is 2-3/4 inches, which is the normal commercial bore. For doors prepped at a deeper backset, a 3-3/4 inch or 5 inch extension link can be ordered with the lock. Specify that at the time of order; it is not something you add later out of a parts bin.
3) Will the 5417LN latch into the strike that is already in my frame?
Standard latchbolt throw is 1/2 inch stainless steel, with a 3/4 inch throw available to order if your frame gap or existing strike needs the extra reach. The lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, and other lip lengths can be ordered when the frame has a deep reveal or the door is set back. All strikes are reversible, so the same one works on either hand.
4) Can this Accentra lever lock go on a fire rated restroom door?
Yes. The 5417LN carries UL/cUL fire ratings up to 3 hours and is certified to ANSI/BHMA A156.2 Series 4000 Grade 1. It is also windstorm certified, though you should confirm against your local code for that application. The guardbolt deadlocks the latchbolt when the door closes, which is standard on all locking functions in the series.
5) What cylinder and keys come with the 5417LN, and can I key it into my building's system?
As furnished, the lock has a brass 6-pin keyed-random cylinder with two keys. A 7-pin cylinder is available to order, which is what you would specify to tie the lock into an existing master key system rather than taking the random keying. Other cylinder and keying options are listed in the 5400LN series catalog attached to the product record.
6) Which lever lock should I use instead of the Accentra 5417LN Monroe on a 2-1/4 inch thick door?
The Accentra 5417LN Monroe adjusts from 1-3/4 inch to 2-1/4 inch, so it covers that thickness directly. Among other Grade 1 cylindrical levers, the Falcon K101 passage lock is also listed to 2-1/4 inch. Corbin Russwin CL3110 and CL33903 levers stop at 2 inch, and Hager 2510 and 2525 levers stop at 2 inch, so those would not reach a 2-1/4 inch door.
7) What is the closest Grade 1 cylindrical lever lock to the Accentra 5417LN Monroe if the opening needs a classroom function instead of apartment exit/public toilet?
The Accentra 5417LN Monroe is an apartment exit/public toilet function Grade 1 cylindrical lever lock adjustable for 1-3/4 inch to 2-1/4 inch doors. For a classroom opening, the Dexter C1000 Series classroom cylindrical lever lock is also Grade 1 with a clutching lever and a keyed cylinder, listed for 1-3/8 inch to 1-3/4 inch doors. Corbin Russwin also offers Grade 1 cylindrical levers in the CL3300 series family for 1-3/4 inch to 2 inch doors.
8) I need a non-keyed passage lever in Grade 1 for corridor doors, not the Accentra 5417LN. What works?
The Accentra 5417LN Monroe is a keyed apartment exit/public toilet function lock, so it is more hardware than a corridor passage door needs. Grade 1 non-keyed passage cylindrical levers include the Falcon K101, which is heavy duty, fire rated and listed for 1-3/8 inch to 2-1/4 inch doors with non-handed levers; the Falcon T101 heavy-duty passage lever; the Corbin Russwin CL3110 vandal-resistant passage/closet lever for 1-3/4 inch to 2 inch doors; and the Design Hardware X75 flat lever passage set for 1-3/4 inch doors.
9) Can a Kwikset or Baldwin lever be used in place of the Accentra 5417LN Monroe on a fire-rated commercial door?
No. The Accentra 5417LN Monroe is a commercial Grade 1 cylindrical lockset, UL/cUL fire rated up to 3 hours. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Baldwin Estate 5103 levers are offered in passage, privacy and half dummy functions. Those are residential-style trim sets, not Grade 1 commercial substitutes.
10) If the opening needs an electrified lever rather than the mechanical Accentra 5417LN Monroe, what is comparable?
The Accentra 5417LN Monroe is a mechanical Grade 1 cylindrical lever lock. For access control tie-in, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever operating on 12VAC/DC for 1-3/4 inch to 2 inch doors, offered with NZ lever and D rose. Note the CL33903 door range stops at 2 inch, while the 5417LN adjusts to 2-1/4 inch.
11) Do I need to specify handing when ordering the Accentra Monroe 5417LN?
No handing to call out. The 5417LN is non-handed and field reversible, and the strike is reversible as well, so one lock covers left and right hand openings. For a property manager buying a pallet of locks for a building, that means a single part number stocks every door.
12) Is a cylindrical lever lock like this heavy duty enough for an apartment building corridor, or do I need a mortise lock?
Grade 1 cylindrical is the normal choice for apartment and restroom doors: the chassis is heavy-gauge steel, zinc plated and dichromated, and it installs into a standard bored prep instead of the deep pocket a mortise lock needs. Mortise becomes the answer when you want multiple functions in one case, a deadbolt in the same lock body, or trim that a cylindrical rose cannot carry. For a straight retrofit into doors already bored for a cylindrical lock, the 5417LN drops in.
13) What else could I buy instead of the Accentra 5417LN for a Grade 1 commercial lever opening?
Staying at Grade 1 cylindrical, the Corbin Russwin CL3100 Series (CL3110) is a vandal resistant lever lock rated for 1-3/4 to 2 inch doors and fire rated, the Falcon K101 covers 1-3/8 to 2-1/4 inch doors, and the Dexter C1000 Series runs Grade 1 in classroom, classroom security and asylum functions. Those specific peers are non-keyed passage or other functions though, so match the function first: the 5417LN is the apartment exit / public toilet one. Grade 2 alternatives such as the Hager 2540 or Falcon B511CP6D are lighter duty and suit lower traffic openings.
14) Are flat fronts or lead shielding available on the 5400LN series lock?
Standard front is a 2-1/4 x 1-1/8 inch beveled front; flat fronts can be ordered when the door edge is square rather than beveled. Lead shielding is also an order option, which is what you specify for X-ray rooms in a healthcare build. Both are order-time selections on the 5417LN, not field changes.
15) Is there a lighter-duty lever lock alternative to the Accentra 5417LN Monroe for a lower-traffic opening?
Yes. The Accentra 5417LN Monroe is ANSI/BHMA A156.2 Series 4000 Grade 1 with a heavy-gauge steel mechanism. For lower traffic, Grade 2 cylindrical levers include the Hager 2525 commercial entry lever and Hager 2580 storeroom lever, both for 1-3/8 inch to 2 inch doors, the Cal-Royal AG05 storeroom lever for 1-3/8 inch to 1-3/4 inch doors, and the Falcon B511CP6D entry/office lever, rated medium duty.
16) What looks like a substitute for the Accentra 5417LN Monroe lever lock but will not latch a door?
Dummy trims. The BEST 9K Series 1DT single dummy trim is a Grade 1 non-keyed lever with no latch, as is the BEST 7KC Series 1DT in Grade 2, and the Emtek Arts and Crafts and Cortina dummy pairs and Callan Bentley dummy lever are also dummy function. The Accentra 5417LN Monroe is a working cylindrical lockset with a 1/2 inch stainless steel latchbolt throw and a guardbolt that deadlocks the latchbolt when the door is closed.
17) I want keyless entry on a restroom or apartment door instead of the keyed Accentra 5417LN Monroe. What are the options?
The Accentra 5417LN Monroe uses a brass 6-pin keyed-random cylinder with two keys furnished. For keyless operation, the Lockey 2835 mechanical pushbutton keyless lever lock is ADA compliant with passage function for 1-3/16 inch to 2 inch doors, the Lockey 2835DC adds a double combination, and the Lockey 1150 heavy duty mechanical keypad lever set covers 1-1/8 inch to 2 inch doors. Electronic options include the Delaney LP250 keypad leverlock in Grade 2 and the Emtek Classic keypad leverset.
18) Which finishes does the Accentra 5417LN Monroe lever come in?
Nine finishes are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus BSP black suede and WSP white suede powder coat. PVD is standard on 605 and 606, and PVD lifetime options exist for 613, which matters if the doors are exterior or get heavy hand traffic and you do not want the plating to wear.
19) Does the Monroe lever free-wheel when the lock is secured?
Yes, the Accentra cylindrical lever design uses a free wheeling lever mechanism with wear-resistant chassis plates. When the outside lever is locked it turns without driving the retractor, so someone hanging on the handle or forcing it does not transfer load into the chassis. On a public restroom door that is the failure mode you are designing against.
20) Do any alternatives to the Accentra 5417LN Monroe offer a knob instead of a lever?
Yes. The Accentra 5417LN uses the Monroe lever with a free wheeling mechanism. Knob-trim cylindrical locks include the Arrow MK02-TA Tudor knob privacy lock for 1-3/4 inch to 2 inch doors, the Arrow HK11 ball knob turn-pushbutton entrance lock for 1-3/8 inch to 1-3/4 inch doors, and the Arrow MK33-BD-CS ball knob asylum lock. Knob trim does not meet the ADA lever-operation preference that a lever set satisfies.
