Yale Commercial Yale 6405LN Pacific Beach Heavy Duty Storeroom or Closet Lever Lock YAL-PB6405LN

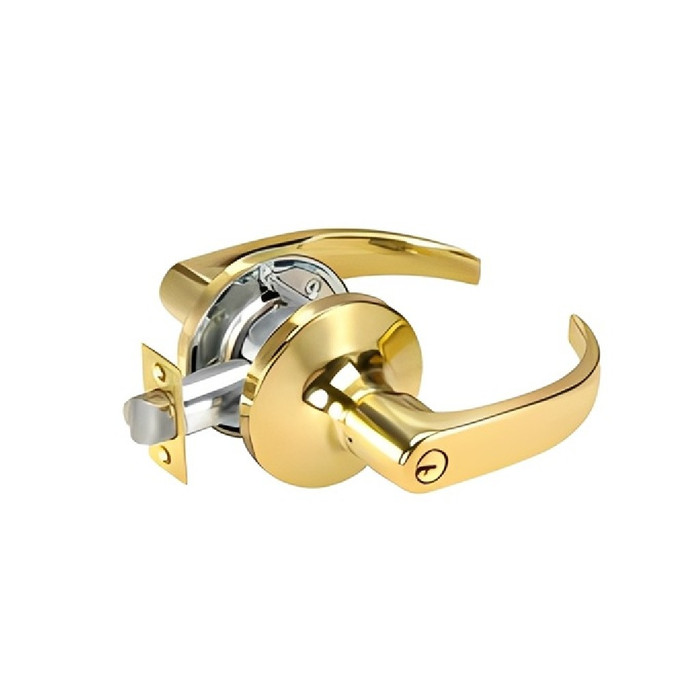

Accentra 6405LN Pacific Beach Heavy Duty Storeroom Lever Lock with 2-3/4" Backset

(No reviews yet) Write a Review

Model: YAL-PB-6405LN-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,676.00
$1,300.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 6405LN Pacific Beach Heavy Duty Storeroom Lever Lock with 2-3/4" Backset

Professional Grade Cylindrical Lever Lock for Commercial Applications

The Accentra 6405LN Pacific Beach lever lock delivers heavy-duty performance with ANSI/BHMA Grade 1 certification for demanding commercial storeroom and closet applications. Built on Yale's robust cylindrical lockset design, this preassembled lock features a 2-3/4" backset, 1/2" stainless steel latchbolt throw, and heavy-gauge steel mechanism with zinc plating and dichromate finish. UL-cUL fire-rated up to 1-1/2 hours and ADA compliant for accessibility, this lock provides reliable security with a 7-year mechanical warranty.

Professional Features & Benefits

  • UL-cUL: UL-cUL fire-rated up to 1-1/2 hours
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4"
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 1-3/4" only
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order.
  • Reversibility: Handing must be specified for all functions and designs
  • Strikes: 1-1/4" lip ANSI strike supplied; other lip lengths and strikes available to order; all reversible
  • Finishes: Available in 626 finish only
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" only, stile width, and handing as this lock requires specified handing for all functions.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2-3/4" backset configuration.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for cylindrical lockset installation.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of the latchbolt and strike.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying guardbolt engagement when door is closed.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever locks deliver professional-grade reliability with heavy-gauge steel construction and ANSI/BHMA Grade 1 certification for the most demanding commercial applications. UL-cUL fire-rated up to 1-1/2 hours with a comprehensive 7-year mechanical warranty for added confidence and protection. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
6400 Series
Subcategory:
Cylindrical
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Storeroom/Closet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-6405LN
Product Function:
Storeroom
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-6405LN-626 – Frequently Asked Questions

1) Do I have to specify handing when ordering the 6405LN lever lock?
Yes, handing has to be called out. Accentra requires handing to be specified for all functions and designs in the 6400 Series, so get the door hand right before the order goes in. The strike is the one reversible piece, the 1-1/4 inch lip ANSI strike that ships with it works either hand. If you want a non-handed lever for a spare-stock situation, look at something like the Falcon K101 Grade 1 passage lock with non-handed levers, though that is passage function, not storeroom.
2) What does storeroom function mean on this Accentra lever, and is it the right choice for a supply closet?
Storeroom function means the outside lever is always locked. Key retracts the latch for entry, the lever does not unlock and stay unlocked, and the inside lever always allows free egress. That is what you want on a supply closet, electrical room, janitor closet, or stockroom where the door should never be left unsecured. It is single cylinder and keyed on the outside only.
3) Will the 6405LN latch into the strike prep I already have?
It depends on two things. Backset is 2-3/4 inches, the standard commercial bore centerline, so it drops into an existing 2-3/4 inch prep. Latchbolt throw is 1/2 inch stainless, and a 1-1/4 inch lip ANSI strike is supplied. If your frame is prepped for a different lip length, Accentra offers other lip lengths and strikes to order. On a 2-3/8 inch backset door this will not line up.
4) Can the Accentra 6405LN go on a fire-rated door?
Yes. The 6405LN is UL-cUL fire rated up to 1-1/2 hours, which covers the common 20, 45, 60 and 90 minute openings in corridors and stairwells. It is also ADA compliant, and the lever handle itself is what makes it so, no tight grasping or twisting to operate.
5) What cylinder and keying comes with the 6405LN, and can I key it into my existing system?
It ships with a brass 6-pin, keyed-random cylinder and two keys. Keyed random means each lock arrives on its own random key, so if you are building a masterkeyed facility you need to have it keyed to your system rather than taking it as supplied. A 7-pin cylinder is available to order for systems that run 7-pin.
6) What is another storeroom lever lock I can use instead of the Accentra 6405LN Pacific Beach?
Two storeroom-function lever locks make direct alternatives. The Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever and a door thickness range of 1-3/8 inch to 2 inch. The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt, rated for 1-3/8 inch to 1-3/4 inch doors. The Accentra 6405LN is ANSI/BHMA Grade 1 and fits 1-3/4 inch doors only, so if your openings vary in thickness the Hager 2580 covers the wider range, while the 6405LN is the Grade 1 option.
7) I need a Grade 1 cylindrical lever lock but the door is 2 inches thick - what works?
The Accentra 6405LN Pacific Beach is built for 1-3/4 inch doors only, so for a thicker door look at the Grade 1 Corbin Russwin CL3110 or the Falcon K101, which list door thickness ranges of 1-3/4 inch to 2 inch and 1-3/8 inch to 2-1/4 inch respectively. Both are passage function rather than storeroom, so confirm the function you need for the opening before ordering.
8) What do I order instead of the Accentra 6405LN for a classroom or institutional door?
Storeroom function keeps the outside lever locked at all times, which is not what most classrooms want. For a keyed classroom opening, the Dexter C1000 is a Grade 1 classroom cylindrical lever lock with clutching for 1-3/8 inch to 1-3/4 inch doors, and the C1000 classroom security version adds key control from both sides. The Cal-Royal AG03 classroom lever in the AG Series uses a 6-pin Schlage C keyway and a 2-3/4 inch backset, matching the 2-3/4 inch backset of the Accentra 6405LN. For patient-room or utility openings, the Dexter C1000 asylum F87 is Grade 1 for 1-3/8 inch to 2 inch doors.
9) Is the Accentra 6405LN heavy duty enough for a school or hospital storeroom door?
It carries ANSI/BHMA Grade 1, the highest commercial rating, with a heavy-gauge steel mechanism that is zinc plated and dichromated for corrosion resistance. Grade 1 is what specifications call for in schools, healthcare, government and high-traffic office buildings. Lead shielding is available to order if the opening is an X-ray or imaging room.
10) What is the guardbolt on this Accentra lever lock for?
The guardbolt deadlocks the latchbolt as soon as the door closes, which is what stops someone from carding or shimming the latch open. It is standard on all locking functions in the 6400 Series, so the 6405LN storeroom lock has it. On an exterior or high-value stockroom door this is the difference between a lock and a latch.
11) What are the Grade 1 storeroom alternatives if the 6405LN does not suit the opening?
Within cylindrical lever locks, Corbin Russwin's CL3300 Series covers 1-3/4 to 2 inch doors, and the CL33903 Grade 1 fail safe electrified lever with 12VAC/DC is the option when the storeroom needs to release on an access control signal. Dexter's C1000 Series runs Grade 1 in classroom and classroom security functions for doors from 1-3/8 to 1-3/4 inches. If Grade 2 is acceptable and you need a wider door thickness range, the Hager 2580 storeroom lever covers 1-3/8 to 2 inches.
12) Can I use a passage lever like the Falcon K101 in place of the Accentra 6405LN?
No. The Falcon K101 is a Grade 1 heavy duty cylindrical lock with passage function and non-handed levers, so it latches but does not lock and takes no key. The Accentra 6405LN is a keyed storeroom lock with a brass 6-pin cylinder and two keys furnished, where the outside lever stays locked. A passage set like the K101, the Falcon T101, or the Corbin Russwin CL3110 is only a substitute where the door does not need to be secured.
13) Is a Kwikset or Baldwin lever an equivalent to the Accentra 6405LN?
They serve different openings. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Baldwin Estate 5103 comes in passage, privacy, and left- and right-hand half dummy versions. The Accentra 6405LN Pacific Beach is a keyed Grade 1 storeroom lock, UL-cUL fire rated up to 1-1/2 hours, for commercial storeroom and closet openings. Use the Kwikset and Baldwin levers on residential interior doors, not as a security substitute.
14) What matching dummy or passage lever can I use on the adjacent inactive leaf next to a 6405LN storeroom door?
The Accentra 6405LN Pacific Beach is a keyed storeroom lock and has no dummy version of its own in the set. For the inactive leaf, the BEST 9K Series 1DT is a Grade 1 heavy duty single dummy trim cylindrical lever, and the BEST 7KC Series 1DT is the Grade 2 medium duty equivalent. If the leaf needs to latch instead, the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever for 1-3/4 inch to 2 inch doors.
15) I want keyless entry on a storeroom door instead of the Accentra 6405LN - what are my options?
The Accentra 6405LN uses a brass 6-pin keyed cylinder with two keys furnished. For a code-based opening, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, and the 2835DC adds a double combination. The Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, and the 1150S version has an adjustable backset. The Delaney LP250 is a Grade 2 electronic keypad leverlock. Note these are passage-function keypad sets rather than a keyed storeroom lock, so key control and keying into an existing system are not carried over.
16) What should I use in place of the Accentra 6405LN if the storeroom door needs to release on a fire alarm?
The Accentra 6405LN Pacific Beach is a mechanical storeroom lock with no electrified option. For access control or alarm release, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock operating on 12VAC/DC for 1-3/4 inch to 2 inch doors, available with the NZ lever and D rose and in a keyed version.
17) What finish does the Accentra 6405LN Pacific Beach lever come in?
626 satin chrome, and that is the only finish offered on the 6405LN. If your building standard is oil-rubbed bronze or satin brass, this one will not match. Satin chrome is the default commercial finish, so it usually lines up with existing hardware in offices, schools and healthcare.
18) Does the 6405LN come preassembled or do I build it up on the door?
It comes preassembled as a cylindrical lockset, so installation is door prep, template, mount, and adjust. Standard cylindrical prep for a 2-3/4 inch backset. After mounting, check latchbolt to strike alignment and confirm the guardbolt is depressing against the strike when the door is shut, otherwise the latch will not be deadlocked.
19) The Accentra 6405LN only comes in 626 satin chrome - what if I need a brass or nickel lever?
The Accentra 6405LN Pacific Beach is offered in 626 satin chrome only. If the opening calls for a different finish, the Bravura Miramar with round trim is a Grade 2 passage leverset in US4 satin brass, and the Callan Asheville is a Grade 3 passage leverset in satin nickel. Both are passage function rather than the keyed Grade 1 storeroom function of the 6405LN, so they suit a finish-driven interior door rather than a secured storeroom.
20) What is the difference between the Accentra 6405LN and a knob-style cylindrical lock like the Arrow MK33?
The Accentra 6405LN Pacific Beach uses a lever handle, which supports ADA accessibility. The Arrow MK33-BD-CS is a heavy duty Grade 2 asylum/institution/utility cylindrical lock with a ball knob and a conventional cylinder in the Schlage C keyway, and the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob. Knob trim is not an ADA-compliant substitute where the code requires lever operation.
