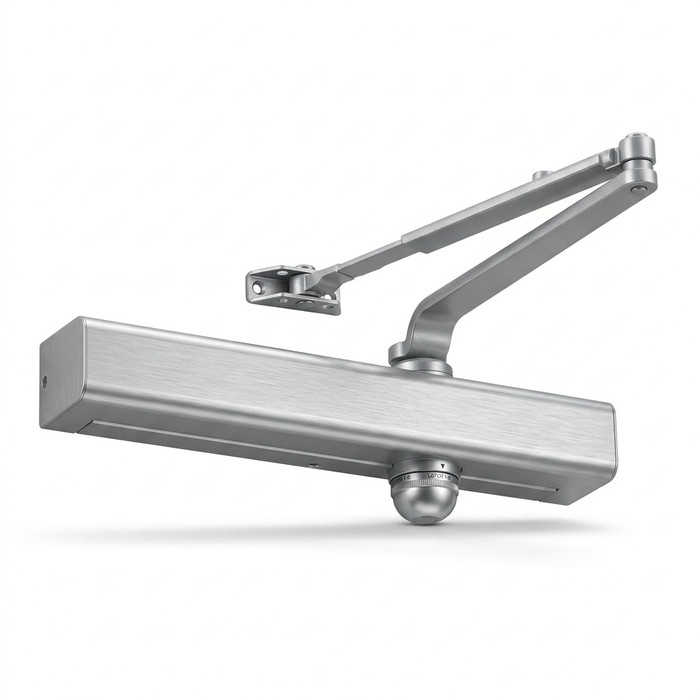

Yale Commercial Yale TJ3101 Architectural Door Closer (Non-Hold Open) - Top Jamb 2-3/4" to 7" Reveal (To 150 degrees) YAL-TJ3101

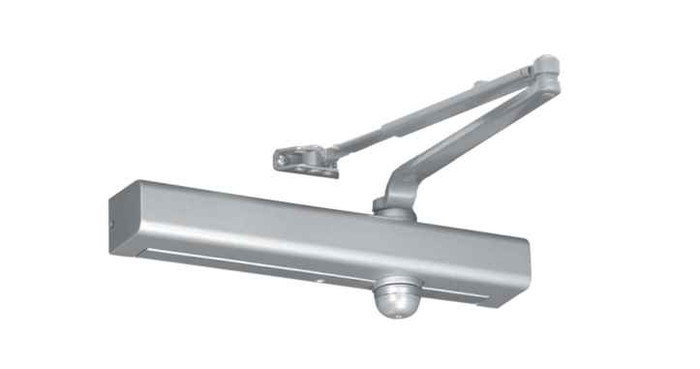

Accentra TJ3101 3000 Series Architectural Door Closer - Top Jamb Mount Non-Hold Open

(No reviews yet) Write a Review

Model: TJ3101 600
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$430.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra TJ3101 3000 Series Architectural Door Closer - Top Jamb Mount Non-Hold Open

Professional Grade Architectural Door Closer Solution

The Accentra TJ3101 3000 Series architectural door closer delivers professional-grade performance with top jamb mounting for 2-3/4" to 7" reveal applications up to 150 degrees. This ANSI/BHMA Grade 1 certified closer features a cast aluminum body with rack and pinion design, adjustable spring sizes 1 through 6, and exceeds 25 million cycles for exceptional durability in commercial applications.

Professional Features & Benefits

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, reveal dimensions (2-3/4" to 7"), and mounting surface compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door jamb and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the closer to door and frame per manufacturer torque specifications.
  5. Adjust spring force (sizes 1-6) and operational components including latch, sweep, and backcheck valves for proper alignment and smooth operation throughout the full range of motion up to 150 degrees.
  6. Test closer operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 3000 Series door closers deliver professional-grade reliability with cast aluminum construction and rack and pinion design rated to exceed 25 million cycles. ANSI/BHMA Grade 1 certification ensures long life and dependable performance. Engineered for demanding commercial applications where consistent door control and ADA compliance are essential.

Product Specs

Series:
3000 Series
Subcategory:
Architectural Door Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Product Model:
YAL-TJ3101
Product Category:
Door Controls
Department:
Door Hardware

Accentra TJ3101 600 – Frequently Asked Questions

1) What reveal will the Accentra TJ3101 door closer work with on a top jamb mount?
Top jamb mounting on the TJ3101 covers a reveal of 2-3/4 inches to 7 inches, and the door can swing to 150 degrees. If your frame reveal is deeper than 7 inches, this closer will not reach in a top jamb application and you need a different mounting approach.
2) Do I need to order a left hand and right hand version of this Accentra closer?
No. The TJ3101 is non-handed, so one closer covers both left and right hand openings. That makes it easy to stock a single part number across a building rather than splitting inventory by handing.
3) Can the Accentra TJ3101 be mounted regular or parallel arm instead of top jamb?
It ships tri-packed, so the hardware for regular, parallel, and top jamb mounting is all in the box. You can set it up on the pull side, on the push side parallel to the door, or on the frame face at the top jamb without ordering a separate arm package.
4) Will one Accentra TJ3101 cover both a light interior office door and a heavier exterior door?
Spring power is adjustable through sizes 1 to 6, so the same closer can be dialed down for a narrow interior door or up for a wide, heavier exterior leaf. Latch speed, sweep speed, and backcheck intensity are separate independent valves, so you can tune closing and protect the door on a hard swing without the adjustments fighting each other.
5) Is this Accentra closer ADA compliant and Grade 1 for a school or healthcare corridor?
The TJ3101 is ANSI/BHMA Grade 1 certified and ADA compliant, and it is rated to exceed 25 million cycles. The adjustable spring sizing is what lets you set opening force down to an ADA-acceptable level on a given door. It is specified for commercial use, including educational and healthcare facilities.
6) Does the TJ3101 hold the door open, or does it always close?
This is the non-hold open version, so the door returns closed every time. That is what you want on fire rated and smoke barrier openings and on any door that has to stay latched. If you need the leaf to stand open, look at a hold open arm closer such as the Orca BHDC1958 hold open model instead.
7) What is the closest cross-brand equivalent to the Accentra TJ3101 door closer?
The TJ3101 is a Grade 1 surface closer with a cast aluminum body, adjustable spring sizes 1 through 6, and tri-packed regular, parallel, and top jamb mounting. The closest cross-brand matches on those points are the Norton Rixson 8501A, a Grade 1 tri-mount surface closer with adjustable size 1-6 spring, and the Arrow DCN325, a Grade 1 tri-pack surface closer with adjustable spring size 1 to 6. The Dormakaba 8616 AF86P FC SNB1 689 is also a Grade 1 tri-pack with a flat non-hold-open arm.
8) Which door closers are also rated for top jamb mounting if the TJ3101 does not fit my frame reveal?
The TJ3101 covers top jamb mounting for a 2-3/4 inch to 7 inch reveal. Other closers offered with top jamb capability include the Dexter DCH1000 and DCH4000 Grade 1 tri-mount closers, which are listed for regular, parallel, or top jamb mounting, the Dexter DCL2000 and DCM1000 tri-mount closers, and the Stanley Security A45-501HL, which is a top jamb closer supplied with a long hold open arm rather than a non-hold-open arm.
9) I need a hold-open arm instead of the non-hold-open TJ3101. What should I order?
The TJ3101 ships as a non-hold-open closer. For a hold-open opening, the Orca Hardware BHDC1958HO/PA is a tri-packed hold-open arm closer, and the Stanley Security A45-501HL is a top jamb closer with a long hold open arm. If you want the door to pause before closing rather than stand open, the Orca BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket.
10) What finishes does the Accentra TJ3101 come in?
Ten finishes: 600 primed for painting, 613E dark oxidized satin bronze equivalent, 689 aluminum painted, 690 dark bronze painted, 691 light bronze painted, 693 black painted, 694 medium bronze painted, 696 satin brass painted, BSP black suede powder coat, and WSP white suede powder coat. The 600 primed option is the one to take if the closer is being painted to match a frame color on site.
11) Is a cast aluminum closer body strong enough for a high traffic entrance?
The TJ3101 uses a cast aluminum body with a rack and pinion mechanism and staked valves, rated past 25 million cycles. Staked valves matter on public openings because they cannot be backed out and lost by someone fiddling with the adjustment. If you specifically want cast iron on an abusive opening, the Sargent 281 Powerglide is a cast iron heavy duty surface closer.
12) What other Grade 1 tri-mount surface closers could I use instead of the Accentra TJ3101?
Comparable Grade 1 tri-mount surface closers include the Norton Rixson 8501A with adjustable size 1 to 6 spring, the Dexter DCH4000 Series tri-mount, and the BEST HD8000 Series heavy duty. The Norton 8501A matches the 1 to 6 adjustable range most closely. Note the Falcon SC91A is Grade 3, so it is not an equivalent on a Grade 1 spec.
13) Is there a lighter-duty alternative to the Accentra TJ3101 for a low-traffic interior door?
The TJ3101 is a Grade 1 commercial closer rated to exceed 25 million cycles. For lighter service, the BEST SL6000 Series is a Grade 1 light duty surface closer with adjustable spring sizes, the Norton Rixson 160 Series is a Grade 1 light duty closer with an adjustable spring, and the Arrow DC314 is a Grade 1 light duty closer. The Falcon SC91A is a Grade 3 light duty cast aluminum closer, and the Cal-Royal 400 Series is a Grade 2 hydraulic closer, so confirm your specification allows a grade below Grade 1 before substituting either.
14) What is a heavier-duty step up from the TJ3101 for an abusive high-traffic entrance?
The TJ3101 uses a cast aluminum body with rack and pinion action. If the opening calls for a heavier closer, the BEST EHD9000 Series is an extra heavy-duty Grade 1 closer with adjustable spring sizes 1-6, the BEST HD8000 Series is a heavy duty Grade 1 closer, and the Sargent 1431 Powerglide is a heavy-duty Grade 1 closer with adjustable spring power. The Sargent 281 Powerglide and the LCN 1261 use cast iron bodies rather than aluminum.
15) Which closers match the TJ3101 spring range of sizes 1 through 6?
The TJ3101 adjusts across spring sizes 1 through 6. Peers with the same range include the Arrow DCN325, the BEST EHD9000 Series, the Norton Rixson 8501A, the Dormakaba 8916-JT, the LCN 1450, and the Imperial USA TC4300 Series. Narrower ranges include the Arrow DCN314 and Dormakaba 7414 at sizes 1 to 4, the LCN 1250 at sizes 1 to 5, and the Calibre CA9901 at sizes 2 to 5.
16) Which items that come up alongside the TJ3101 are not actually door closers?
A few parts sit near the TJ3101 in a closer search but will not close a door. The Arrow DCN500DP is a parallel drop plate for the DCN500, a mounting accessory only. The Stanley Security 327 and 341 are wardrobe pivots for hanging doors, and the Stanley Security 57-0100 is a box of 100 steel machine screws for architectural hinges. The TJ3101 itself is the complete surface-mounted closer body and arm.
17) If I need a slide track or flat arm instead of the TJ3101 standard arm, what are the options?
The TJ3101 comes tri-packed for regular, parallel, and top jamb mounting with a standard arm. Where the opening calls for a track, the Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm for pull side mounting, and the Dormakaba 8916-JT is a Grade 1 jamb track closer for frame face, pull side mounting. For a flat arm in a parallel application, the Dormakaba 8616 AF86P FC SNB1 689 uses a flat non-hold-open arm.
18) Are there other ADA-compliant barrier free closers comparable to the Accentra TJ3101?
The TJ3101 is ADA compliant with separate latch, sweep, and backcheck valves. Comparable barrier free options include the Cal-Royal 500S, a Grade 1 barrier free closer with adjustable back-check, the Cal-Royal N900PBF barrier free Grade 1 hydraulic closer, the Calibre CA4001 adjustable spring tension ADA hydraulic closer, and the LCN 1250 with all-weather fluid. The Calibre CA8001P is an ADA closer supplied as a parallel arm size 1, so confirm the spring size suits your door width.
19) What other tri-packed non-hold-open closers can I standardize on across a facility alongside the TJ3101?
The TJ3101 is non-handed and tri-packed for regular, parallel, and top jamb mounting, which lets one part number cover mixed openings. Other tri-packed non-hold-open closers include the Design Hardware 116 and 416 Series heavy duty closers, the Design Hardware 316 Series in medium to heavy duty, the Orca BHDC1958RA/PA with regular arm and parallel bracket, and the Norton Rixson 1601P Grade 1 tri-mount closer with 180 degree swing.
20) How does the Accentra TJ3101 compare with the Falcon SC61A, SC71A, and SC81A cast aluminum closers?
All four use cast aluminum bodies. The TJ3101 is Grade 1 with adjustable spring sizes 1 through 6 and tri-packed mounting. The Falcon SC61A is Grade 1 rated light to medium duty, the SC81A is Grade 1 medium duty, and the SC71A is Grade 1 heavy duty, so the Falcon line separates by duty level across three series where the Accentra covers the range through spring adjustment on one closer.
21) Which Corbin Russwin closers line up with the TJ3101 for a 1-3/4 inch commercial door?
Corbin Russwin lists the DC3200, DC6200, and DC8200 as Grade 1 surface closers for 1-3/4 inch doors, the DC3200 with a regular arm and the DC6200 and DC8200 with a double lever regular arm on pull side mounting. The TJ3101 differs in that it ships tri-packed for regular, parallel, and top jamb mounting on one non-handed body, so it does not have to be ordered by mounting side.
22) Is there a top jamb closer with a hold open arm if the TJ3101 will not work for my opening?
For a top jamb application that needs to stand the door open, the Stanley Security A45-501HL is a long hold open arm, top jamb closer. The Accentra TJ3101 covers the top jamb mount but only in non-hold open.
23) Are installation templates and instructions available for the Accentra 3000 Series closer?
Yes. Accentra publishes tri-packed non-handed 3000 Series installation instructions plus a 3000 Series door closer catalog, and there is a separate instruction sheet for the PR3000 and 3020 parallel rigid and holder stop arms if you are adding one of those arm options. Use the manufacturer template to lay out the frame face holes before drilling.
24) I want a closer with a full cover rather than the exposed body. What compares to the TJ3101?
For a covered installation, the Dexter DCH1000 is a Grade 1 tri-mount surface closer supplied with a full cover, and the Design Hardware 316 Series is a medium to heavy duty tri-packed non-hold-open closer supplied with a cover. By contrast the Arrow DCN314 and DCN325 are Grade 1 tri-pack closers sold less cover.
