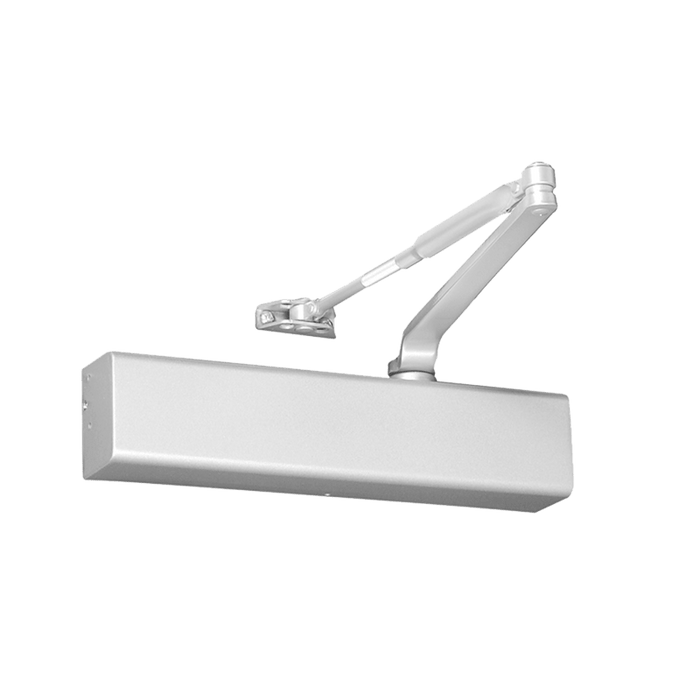

Yale 3501 Series Architectural Door Closers with Full Cover

Accentra TJ3511 3000 Series Top Jamb Door Closer with Hold Open Arm and Full Cover

(No reviews yet) Write a Review

Model: TJ3511 613E
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$620.00
$480.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra TJ3511 3000 Series Top Jamb Door Closer with Hold Open Arm and Full Cover

Professional Architectural Door Closer Solution

The Accentra TJ3511 3000 Series door closer delivers professional-grade performance with adjustable spring sizes 1 through 6 and accommodates 2-3/4" to 6-3/4" reveals for versatile top jamb mounting applications. This ANSI/BHMA Grade 1 certified closer features a cast aluminum body with rack and pinion design, exceeding 25 million cycles for exceptional durability in commercial environments. The tri-packed mounting system provides regular, parallel, and top jamb installation options with non-handed operation for maximum flexibility.

Professional Features & Benefits

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, frame reveal dimensions (2-3/4" to 6-3/4"), and mounting surface adequacy.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door jamb and frame surfaces for top jamb installation.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the selected mounting configuration.
  4. Install all mounting hardware and secure the closer to door and frame per manufacturer torque specifications, ensuring proper alignment with reveal dimensions.
  5. Adjust spring power (sizes 1-6) and valve settings for latch, sweep, and backcheck intensity to achieve proper door operation and closing speed.
  6. Test closer operation through full door cycle to verify proper function, hold open operation, and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 3000 Series door closers deliver professional-grade reliability with cast aluminum construction and rack and pinion design rated to exceed 25 million cycles. ANSI/BHMA Grade 1 certification ensures long life and dependable performance in demanding commercial applications. Engineered with precision valve control and tri-packed mounting versatility for installations where consistent door control is essential.

Product Specs

Series:
3000 Series
Subcategory:
Architectural Door Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Product Model:
YAL-3501
Product Function:
Top Jamb 2-3/4" to 6-3/4" Reveal Hold Open Arm
Product Size:
Adjustable 1-6
Product Category:
Door Controls
Department:
Door Hardware

Accentra TJ3511 613E – Frequently Asked Questions

1) What reveal can the Accentra TJ3511 top jamb door closer handle?
The TJ3511 arm is built for top jamb mounting with reveals from 2-3/4 inches to 6-3/4 inches. That covers most deep-reveal frames where the closer body sits on the frame face and the arm reaches back to the door. If your reveal is under 2-3/4 inches, this arm is the wrong one for the opening.
2) Do I have to order the Accentra 3000 Series closer handed left or right?
No. The 3000 Series closer is non-handed, so one unit works on a left or right hand door. It's also tri-packed with regular, parallel, and top jamb mounting hardware in the carton, so if the job changes from top jamb to parallel arm you are not buying a second closer.
3) Will one Accentra TJ3511 closer cover both a light interior door and a heavy exterior door?
Spring power is field adjustable through sizes 1 to 6, so the same closer can be dialed down for a narrow interior door or up for a wide, heavy exterior door. Latch speed, sweep, and backcheck intensity are separate independent valves, so you can slow the sweep without losing latching force.
4) What is a cross-brand equivalent to the Accentra TJ3511 top jamb door closer with a hold open arm?
The Orca Hardware BHDC1958HO/PA is the closest functional match in a hold open configuration - it is a tri-packed hold open arm closer for 1-3/4 inch doors. The Accentra TJ3511 is also a hold open arm closer with tri-packed regular, parallel, and top jamb mounting and adjustable spring sizes 1 through 6. The Stanley Security A45-501HL is another hold open option, supplied as a long hold open arm standard for top jamb mounting.
5) What should I use instead of the Accentra TJ3511 on a high-abuse exterior opening?
Step up to a heavy-duty body. The BEST HD8000 and EHD9000 Series are Grade 1 heavy duty surface closers, the Falcon SC71A Series is a Grade 1 heavy-duty surface-mount closer, the Sargent 1431 Powerglide is a Grade 1 heavy duty closer with adjustable spring power, and the Sargent 281 Powerglide uses a cast iron body. The Accentra TJ3511 is a Grade 1 cast aluminum closer rated to exceed 25 million cycles.
6) Which Grade 1 surface closers besides the Accentra TJ3511 also cover adjustable spring sizes 1 through 6?
Several do. The BEST EHD9000 Series is an extra heavy-duty Grade 1 closer with adjustable spring sizes 1-6, the Dorma 8916-JT is a Grade 1 heavy-duty closer adjustable size 1-6 with a jamb track arm for frame face pull side mounting, and the Norton Rixson 8501A is a Grade 1 tri-mount closer with an adjustable size 1-6 spring. The Accentra TJ3511 is Grade 1 certified with adjustable spring sizes 1 through 6 and a cast aluminum body.
7) Which closers look like substitutes for the Accentra TJ3511 but will not give me hold open?
Watch the arm description. The Design Hardware 116, 316, and 416 Series are all supplied with a tri-packed non-hold open arm, the Dormakaba 8616 AF86P FC is a tri-pack flat arm non-hold open closer, and the Orca BHDC1958RA/PA is a tri-packed non-hold open arm closer. Those share tri-mount flexibility with the Accentra TJ3511 but not its hold open arm function. Also note the Stanley 327 and 341 are wardrobe pivots, not closers at all.
8) Which other closers can be mounted top jamb like the Accentra TJ3511?
The Dexter DCH1000 Series is a Grade 1 tri-mount closer for regular, parallel, or top jamb mounting with a full cover, and the DCH4000, DCL2000, and DCM1000 Series are Grade 1 tri-mount closers in the same regular/parallel/top jamb arrangement. The Stanley A45-501HL is furnished specifically for top jamb with a long hold open arm. The Accentra TJ3511 is tri-packed for regular, parallel, and top jamb mounting and accommodates 2-3/4 inch to 6-3/4 inch reveals.
9) For standardizing a building on ADA-compliant closers, what else besides the Accentra TJ3511 is listed as ADA?
The Calibre CA9901 is a Grade 1 tri-pack arm ADA closer in size 2-5, the Calibre CA4001 is a Grade 1 adjustable spring tension ADA hydraulic closer, the Imperial USA TC4300 is a heavy duty size 1-6 ADA closer, and the LCN 1250 is ADA compliant in sizes 1-5. The Accentra TJ3511 is ADA compliant with adjustable spring sizes 1 through 6, which gives a single part number to tune across mixed openings.
10) Is the Accentra TJ3511 rated for high traffic commercial openings?
It's ANSI/BHMA Grade 1 with a cast aluminum body and rack and pinion operation, tested to exceed 25 million cycles. That's the level specified for school corridors, hospital and office entries, and multi-family common doors where the door is worked all day.
11) Does the Accentra TJ3511 meet ADA opening force requirements?
The closer is listed as ADA compliant, and because spring power adjusts down through size 1 you can set opening force to what an accessible interior opening needs. Setting it that low is only appropriate where the door is not fighting wind or stack pressure.
12) What is the difference between a top jamb closer and a parallel arm closer?
Top jamb puts the closer body on the frame face above the door with the arm to the push side of the door, which is the standard answer when the door itself has no room for the body, such as narrow top rail aluminum doors or full glass. Parallel arm mounts the body on the push face of the door with the arm tucked back along the frame, which keeps the arm out of the traffic path and off the reveal entirely. The 3000 Series ships tri-packed for regular, parallel, and top jamb, so you can choose at install.
13) Is there another tri-mount Grade 1 closer comparable to the Accentra 3000 Series?
Several. The Dexter DCH1000 Series is a Grade 1 surface closer with tri mount for regular, parallel or top jamb and a full cover, which is the closest match feature for feature. The Norton Rixson 8501A is a Grade 1 tri-mount closer with adjustable size 1-6 spring, and the Norton Rixson 1600 Series is Grade 1 tri-mount rated for 180 degree swing.
14) Is there a Grade 2 closer I could use where the Accentra TJ3511 is more than the job needs?
The Cal-Royal 400 Series is a Grade 2 commercial hydraulic door closer. If the specification still calls for Grade 1 but a simpler barrier-free arrangement suits, the Cal-Royal 500S is a Grade 1 barrier free closer with adjustable back-check and the 700S is a Grade 1 dual valve sized closer with an adjustable tube arm. The Accentra TJ3511 is ANSI/BHMA Grade 1 with separate latch, sweep, and backcheck intensity valves.
15) If a door needs to stay open on a timer rather than latch back, what replaces the Accentra TJ3511?
Look at delayed action instead of hold open. The Orca BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket for 1-3/4 inch doors. The Accentra TJ3511 uses a hold open arm, which holds the leaf open at a set point rather than slowing the close cycle.
16) What is a medium-duty alternative to the Accentra TJ3511 for interior office doors?
The Sargent 1131 and 1331 are Grade 1 medium duty adjustable surface closers, the 1331 with a universal aluminum body. The Falcon SC81A is a Grade 1 medium duty cast aluminum closer, the Norton Rixson 1601P is a Grade 1 medium duty tri-mount closer with 180 degree swing, and the Dormakaba 7303 Series is a Grade 1 medium duty surface closer. The Accentra TJ3511 has a cast aluminum body with rack and pinion design and a full cover.
17) Is the Corbin Russwin DC3200 a direct swap for the Accentra TJ3511?
Not arm for arm. The Corbin Russwin DC3200 is a Grade 1 surface mounted closer furnished with a regular arm for 1-3/4 inch doors, and the DC5230 uses a slide track arm on pull side mounting while the DC6200 and DC8200 use a double lever regular arm on pull side mounting. The Accentra TJ3511 is furnished as a top jamb hold open arm closer, so matching the arm and mounting style matters more than matching the grade.
18) What finishes does the Accentra TJ3511 door closer come in, and can I match existing hardware?
Seven finishes: 613E dark oxidized satin bronze equivalent, 689 aluminum painted, 690 dark bronze painted, 691 light bronze painted, 693 black painted, 694 medium bronze painted, and 696 satin brass painted. All ship with a full metal cover, so the body is concealed and the finish is what shows across a run of doors.
19) I need a top jamb closer with a long hold open arm from another brand. What are my options?
Stanley Security offers the A45-501HL in the D-455 series, a long hold open arm standard configured for top jamb mounting. That's the direct alternative if the Accentra hold open top jamb arm doesn't suit the frame.
20) Why does the Accentra 3000 Series use staked valves?
The latch, sweep, and backcheck valves are staked, which keeps them from backing out of the body under repeated cycling or tampering in a public corridor. Each is still independently adjustable at install, so you set the door once and it holds the setting.
