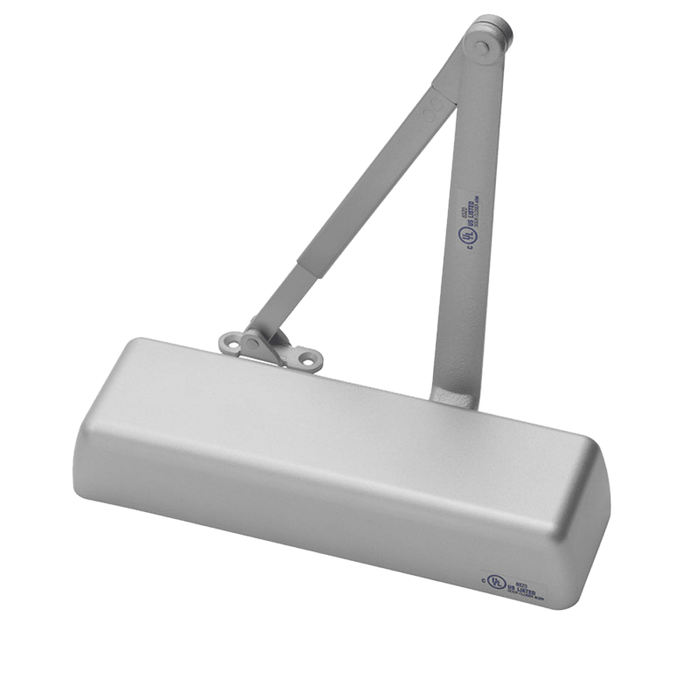

Yale 3501 Series Architectural Door Closers with Full Cover

Accentra TJ3501 3000 Series Architectural Door Closer with Top Jamb Mounting and 2-3/4" to 7" Reveals

(No reviews yet) Write a Review

Model: TJ3501 613E
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$553.00
$428.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra TJ3501 3000 Series Architectural Door Closer with Top Jamb Mounting and 2-3/4" to 7" Reveals

Professional Architectural Door Closer Solution

The Accentra TJ3501 3000 Series architectural door closer delivers professional-grade performance with top jamb mounting capability for 2-3/4" to 7" reveals. This ANSI/BHMA Grade 1 certified closer features adjustable spring sizes 1 through 6, cast aluminum body construction, and exceeds 25 million cycles for exceptional durability. The rack and pinion design with staked valves provides precise control with separate and independent latch, sweep, and backcheck intensity valves.

Professional Features & Benefits

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Product Features

  • ADA compliant
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6
  • Tri-packed: regular, parallel, and top jamb mounting
  • Non-handed
  • Staked valves
  • Rack and pinion design
  • Separate and independent latch, sweep, and backcheck intensity valves

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, frame construction, and reveal dimensions of 2-3/4" to 7" for top jamb mounting.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the selected mounting configuration.
  3. Prepare door and frame by drilling required holes per manufacturer specifications using self-drilling and tapping screws provided.
  4. Install the closer body and arm assembly according to the selected mounting option (regular, parallel, or top jamb) ensuring proper alignment.
  5. Adjust spring force to match door weight and usage requirements using the adjustable spring sizes 1 through 6 capability.
  6. Fine-tune operational settings using the separate and independent latch, sweep, and backcheck intensity valves for optimal door control and ADA compliance. Refer to manufacturer documentation for complete installation details and valve adjustment procedures.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 3000 Series door closers deliver professional-grade reliability with cast aluminum construction rated to exceed 25 million cycles. ANSI/BHMA Grade 1 certification ensures long life and dependable performance in demanding commercial applications. Engineered with precision rack and pinion design and staked valves for consistent operation where reliable door control is essential.

Product Specs

Series:
3000 Series
Subcategory:
Architectural Door Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Product Model:
YAL-3501
Product Function:
Top Jamb 2-3/4" to 7" Reveal Non-Hold Open Arm
Product Size:
Adjustable 1-6
Product Category:
Door Controls
Department:
Door Hardware

Accentra TJ3501 613E – Frequently Asked Questions

1) What reveal can the Accentra TJ3501 door closer handle on a top jamb installation?
The TJ3501 is set up for top jamb mounting on reveals from 2-3/4 inches to 7 inches. That is the deep-reveal arm configuration, so if your frame face sits well back from the door face on the push side, this is the version to order. Reveals under 2-3/4 inches need a different arm arrangement.
2) Does the Accentra TJ3501 closer have to be top jamb mounted, or can I use it regular or parallel arm?
It ships tri-packed, so the same closer covers regular arm, parallel arm, and top jamb mounting. The TJ3501 designation reflects the top jamb arm for 2-3/4 to 7 inch reveals, but the body and hardware allow the other two mounting styles. The body is also non-handed, so one unit works on a left or right hand door.
3) Will one Accentra 3000 Series closer work on both an interior office door and a heavier exterior door?
Spring power is field adjustable through sizes 1 to 6, so a single TJ3501 covers light interior doors up through wide or heavy exterior openings. You set the force on site to match door width and weight instead of stocking multiple sized closers, which is why property managers use one part number across a building.
4) Is the Accentra TJ3501 ADA compliant for opening force on a public entrance?
The closer is stated ADA compliant, and the adjustable size 1 to 6 spring plus independent latch, sweep, and backcheck valves let you dial opening force and closing speed down to the barrier-free setting an accessible opening needs. It is also ANSI/BHMA Grade 1 certified.
5) What is a direct equivalent to the Accentra TJ3501 top jamb door closer from another manufacturer?
The Accentra TJ3501 is a Grade 1 surface closer with adjustable spring sizes 1 through 6, tri-packed for regular, parallel, and top jamb mounting, with a non-hold open arm. The closest peers on the same terms are the Norton Rixson 8501A, a Grade 1 tri-mount surface closer with adjustable size 1-6 spring, and the Dexter DCH1000 Series, a Grade 1 surface closer that tri-mounts regular, parallel, or top jamb with a full cover. The Dormakaba 8616 AF86P FC SNB1 689 is also Grade 1 heavy duty with a flat non-hold open arm supplied tri-pack.
6) My opening is an exterior door that takes heavy abuse - is there a heavier closer than the TJ3501?
The Accentra TJ3501 is Grade 1 with a cast aluminum body and adjustable sizes 1 through 6. If you want a heavier-duty body, the BEST EHD9000 Series is an extra heavy-duty Grade 1 closer with adjustable spring sizes 1-6, the Sargent 281 Powerglide is a heavy-duty Grade 1 closer with a cast iron body, and the LCN 1460T is a heavy duty Grade 1 closer in a powder coat finish.
7) My frame reveal is deeper than 7 inches for top jamb mounting - what closer should I use instead?
The Accentra TJ3501 arm is specified for top jamb reveals of 2-3/4 inch to 7 inch, so a deeper reveal calls for a different arm approach. A track closer mounted on the frame face handles that condition: the Dorma 8916-JT is a Grade 1 jamb track closer for frame face pull side mounting with adjustable size 1-6, and the Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm in pull side mounting.
8) I need the door to stay open - does the TJ3501 do that, and what should I order if not?
No. The Accentra TJ3501 is furnished with a non-hold open arm, so it closes the door on every cycle. If you need the door to stand open, the Orca Hardware BHDC1958HO/PA is a tri-packed hold open arm closer with a parallel bracket, and the Stanley Security A45-501HL is a long hold open arm standard in top jamb mounting.
9) Does this closer hold the door open, or does it always close?
The TJ3501 uses a non-hold-open arm. It returns the door to the closed and latched position every cycle, which is what you want on a fire-rated or smoke-barrier opening. If you need the leaf to stay open, you need a hold-open arm version instead.
10) What adjustments can I make after the Accentra 3000 closer is installed?
Latch speed, sweep speed, and backcheck intensity are separate, independent valves, so you can slow the sweep without losing latch power or add backcheck to stop the door slamming into an adjacent wall. Valves are staked to prevent them backing out or being removed. Spring size is adjusted separately, 1 through 6.
11) How does the Accentra 3000 Series compare to other Grade 1 tri-mount surface closers?
The TJ3501 is a cast aluminum body, Grade 1, adjustable size 1-6 closer rated past 25 million cycles. Close equivalents ZenSupply carries include the Dexter DCH1000 Series, a Grade 1 tri-mount closer available with full cover, and the Norton Rixson 8501A, a Grade 1 tri-mount with the same adjustable 1-6 spring range in a medium duty rating. If you want a heavier body for abusive traffic, the BEST EHD9000 Series is extra heavy duty with sizes 1-6.
12) I need a top jamb closer that holds the door open. What should I look at instead of the TJ3501?
The TJ3501 arm is non-hold-open, so it will not park the door. For a top jamb mounted hold-open, the Stanley Security A45-501HL uses a long hold open arm in a top jamb configuration. Note that hold-open arms are not appropriate on fire-rated openings unless tied to a release device.
13) Is the Accentra 3000 Series closer durable enough for a high traffic school or hospital entrance?
Cycle life exceeds 25 million cycles with a cast aluminum body and rack and pinion mechanism, and it carries ANSI/BHMA Grade 1 certification, which is the highest durability class for surface closers. It is specified for commercial use, including educational and healthcare facilities.
14) The TJ3501 is more closer than I need for an interior office door. What is a lighter option?
For lighter interior traffic, the BEST SL6000 Series is a Grade 1 light duty surface closer with adjustable spring sizes, and the Norton Rixson 160 Series is a Grade 1 light duty closer with an adjustable spring for light commercial openings. The LCN 1250 Series is also light duty, sized 1-5 with all-weather fluid and ADA compliance. The Accentra TJ3501 covers the wider 1 through 6 spring range and exceeds 25 million cycles.
15) Is the Cal-Royal 400 Series a substitute for the Accentra TJ3501?
They are not equivalent on certification. The Cal-Royal 400 Series is a Grade 2 commercial hydraulic closer, while the Accentra TJ3501 is ANSI/BHMA Grade 1. If a Grade 1 Cal-Royal is what the spec calls for, the 500S is a Grade 1 barrier free closer with adjustable back-check and the 700S is a Grade 1 dual valve sized closer with an adjustable tube arm.
16) I am standardizing a building on one closer - which alternates also cover the full size 1 through 6 range?
The Accentra TJ3501 adjusts across spring sizes 1 through 6, so one part covers light interior doors and heavier exterior leaves. Peers that state the same range are the Norton Rixson 8501A Grade 1 tri-mount, the BEST EHD9000 Series extra heavy duty Grade 1, the Arrow DCN325 Grade 1 tri-pack regular/parallel arm, the LCN 1450 medium duty, and the Imperial USA TC4300 Series heavy duty ADA closer.
17) What are the medium duty Grade 1 alternatives to the Accentra TJ3501 for interior corridor doors?
For medium duty Grade 1 service, the Sargent 1131 is an adjustable surface closer for medium-traffic commercial openings, the Sargent 1331 has a universal aluminum body, the Falcon SC81A is a medium duty cast aluminum closer, and the Norton Rixson 1601P is a Grade 1 medium duty tri-mount closer with 180 degree swing. The Accentra TJ3501 likewise uses a cast aluminum body and is Grade 1.
18) I need delayed action on a healthcare door - can the Accentra TJ3501 do it?
The Accentra TJ3501 provides separate and independent latch, sweep, and backcheck intensity valves with a non-hold open arm. If delayed action is required, the Orca Hardware BHDC1958DA/PA is a delayed action closer with a regular arm and parallel bracket, and the BHDC2011DA/PA is a delayed action closer in the same arm configuration.
19) Is the Falcon SC91A an acceptable swap for the Accentra TJ3501?
Only where a Grade 1 closer is not required. The Falcon SC91A is a light duty cast aluminum closer certified Grade 3, while the Accentra TJ3501 is ANSI/BHMA Grade 1 and exceeds 25 million cycles. For a Grade 1 Falcon, the SC61A is light to medium duty and the SC71A is heavy duty.
20) What finishes does the Accentra TJ3501 come in to match the rest of my door hardware?
Seven finishes: 689 aluminum painted, 690 dark bronze painted, 691 light bronze painted, 693 black painted, 694 medium bronze painted, 696 satin brass painted, and 613E dark oxidized satin bronze equivalent. Six are painted finishes, so matching existing painted closers on a building standard is straightforward.
21) What fasteners come with the Accentra TJ3501 and do I need to tap the frame?
Self-drilling and tapping screws are supplied, and Accentra provides mounting templates for each of the three mounting positions so you can mark the frame and door accurately. Full installation and valve adjustment procedures are in the 3000 Series installation instructions supplied with the closer.
22) Will the Arrow DCN500DP drop plate work with the Accentra TJ3501?
No. The Arrow DCN500DP is a parallel drop plate made for the Arrow DCN500 closer, not an arm or mounting accessory for the Accentra TJ3501. The TJ3501 ships tri-packed for regular, parallel, and top jamb mounting with the top jamb arm covering 2-3/4 inch to 7 inch reveals, so order Accentra mounting accessories for that closer.
