Arlington Industries 90 Degree Zinc Die-Cast Flex Connector for 2-1/2" Knockout

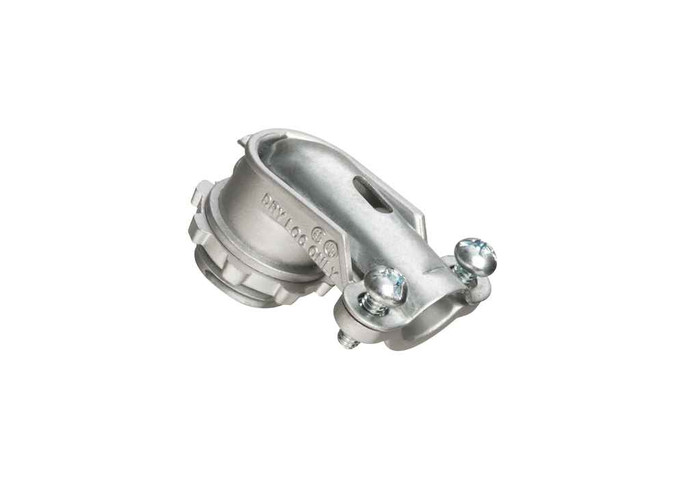

Arlington Industries 90 Degree Zinc Die-Cast Flex Connector

Professional-Grade Right Angle Connection Solution

The Arlington Industries 90 Degree Zinc Die-Cast Flex Connector is an innovative right-angle connector designed to solve challenging flexible conduit routing problems. This zinc die-cast connector features a precision 90-degree bend with dual-screw securing system for aluminum and steel flex applications, delivering the reliable performance and space-saving design that electrical professionals demand.

Innovative Features & Benefits

Superior Construction Design

• Zinc Die-Cast Body - Provides exceptional durability and corrosion resistance for long-lasting installations
• 90 Degree Configuration - Eliminates need for additional fittings in tight spaces, saving installation time
• Dual-Screw Securing System - Ensures reliable grip on both aluminum and steel flexible conduit
• Precision Cable Range - Accommodates cables from 2.6 to 3.1 inches for versatile applications

Installation Efficiency

• 2-1/2" Knockout Compatibility - Standard sizing for seamless integration with existing electrical boxes
• Die-Cast Locknut Included - Complete assembly for secure panel mounting without additional hardware
• cULus and CSA Listed - Meets rigorous safety standards for professional installations

Technical Specifications

Trade size accommodates 2-1/2" knockouts with zinc die-cast construction. Cable range: 2.450" - 2.975" (2.6 - 3.1). Height: 7.187". Silver finish. cULus and CSA listed for safety compliance. Compatible with aluminum and steel flexible conduit systems.

Quick Installation Process

1. Insert connector through 2-1/2" knockout opening from interior side
2. Thread die-cast locknut onto connector from exterior panel surface
3. Tighten locknut securely against panel using appropriate wrench
4. Insert flexible conduit into connector opening ensuring proper cable range fit
5. Secure flexible conduit using both mounting screws alternately
6. Verify tight connection and proper 90-degree routing alignment

Perfect Applications

Ideal for:

• Industrial Control Panels - Motor control centers, switchgear, and automation equipment connections
• Commercial Electrical Systems - Office buildings, retail spaces, and institutional facility installations
• Manufacturing Equipment - Machine tool connections, conveyor systems, and production line wiring
• HVAC Applications - Air handling units, rooftop equipment, and climate control system connections
• Telecommunications Infrastructure - Equipment racks, server rooms, and communication panel installations
• Food Processing Facilities - Washdown areas requiring corrosion-resistant connections
• Maintenance and Retrofit Projects - Upgrading existing flexible conduit systems with reliable connections
• Space-Constrained Installations - Areas where straight connectors cannot accommodate required routing

Right-Angle Connection Advantage

Arlington's 90-degree design eliminates the need for multiple fittings and excessive conduit bending, reducing installation time while providing cleaner, more professional-looking installations in confined spaces where traditional straight connectors would create routing challenges.

Why Choose Arlington Innovation?

Since 1949, Arlington Industries has engineered solutions that solve real-world electrical installation challenges. This zinc die-cast flex connector represents decades of innovation in creating reliable, time-saving products that electrical professionals trust for demanding commercial and industrial applications.
