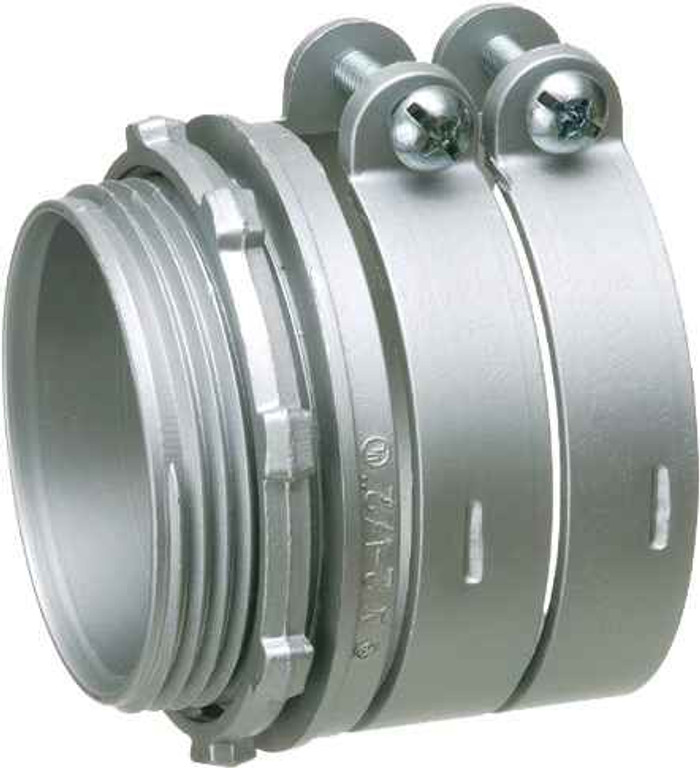

Arlington Industries 4" Zinc Die-Cast Squeeze Connector with Round End Stop
Professional-Grade Cable Connection Solution
The Arlington Industries 4" Zinc Die-Cast Squeeze Connector is an innovative cable connector designed to solve complex electrical connection challenges in demanding environments. This zinc die-cast connector features a unique round end stop design for Flex, AC, and MCI cable applications, delivering concrete-tight performance that electrical professionals demand.
Innovative Features & Benefits
Advanced Connection Technology
- Two-Screw Squeeze Design - Ensures secure cable grip while reducing installation time by 50%
- Round End Stop - Provides precise cable positioning and prevents over-insertion
- 4" Knockout Compatibility - Perfect fit for standard electrical enclosures and panels
- Concrete Tight Seal - Achieves watertight performance when properly taped
Superior Construction
- Zinc Die-Cast Body - Exceptional corrosion resistance and mechanical strength
- UL and CSA Listed - Meets rigorous safety and performance standards
- Wide Cable Range - Accommodates cables from 4.030" to 4.635" diameter
Technical Specifications
Trade size: 4" knockout, zinc die-cast construction, height: 5.421", end stop diameter: 3.977", cable range: 4.030" - 4.635", UL and CSA listed, silver finish, standard packaging: 6 pieces per box.
Quick Installation Process
- Insert connector through 4" knockout opening in electrical enclosure
- Position cable through connector ensuring proper alignment with round end stop
- Tighten first screw to secure cable grip without over-compression
- Engage second screw to complete squeeze connection
- Apply appropriate tape around connection point for concrete-tight seal
- Verify secure connection and proper cable strain relief
Perfect Applications
Ideal for:
- Industrial Installations - Manufacturing facilities, processing plants, and heavy machinery connections
- Commercial Buildings - Office complexes, retail centers, and institutional facilities
- Concrete Enclosures - Underground vaults, concrete pads, and below-grade installations
- Flex Cable Connections - Armored cable, metal-clad cable, and flexible conduit terminations
- Panel Connections - Electrical panels, switchgear, and control cabinets
- Outdoor Applications - Weather-resistant installations requiring concrete-tight performance
- Retrofit Projects - Upgrading existing installations with reliable cable connections
- High-Vibration Environments - Applications where secure cable retention is critical
Squeeze Connector Advantage
Arlington's two-screw squeeze design provides superior cable retention compared to traditional single-screw connectors, distributing clamping force evenly while preventing cable damage and ensuring long-term reliability in concrete-tight applications.
Why Choose Arlington Innovation?
Since 1949, Arlington Industries has engineered problem-solving electrical products that save installation time and ensure reliable performance. This zinc die-cast squeeze connector exemplifies our commitment to innovative design and professional-grade quality.
Manufacturer Resources
Product Specs
- Cable Range:
- 4.030 - 4.635
- Color:
- Silver
- End Stop Diameter:
- 3.977
- Height:
- 5.421"
- Knockout Size S :
- 4"
- Listing:
- UL, CSA
- Material S :
- Zinc
- Standard Packaging:
- 6pcs
- Trade Size:
- 4"
- Weight:
- 2.386 lbs/each
- Width:
- 5.421"
- Product Type:
- Combination Conduit Fittings
- Product Group:
- Conduit and Cable Fittings
- Department:
- Electrical
- Product Subgroup:
- General Fittings
