Hammond Manufacturing 1414PHL6...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$278.06
$241.41

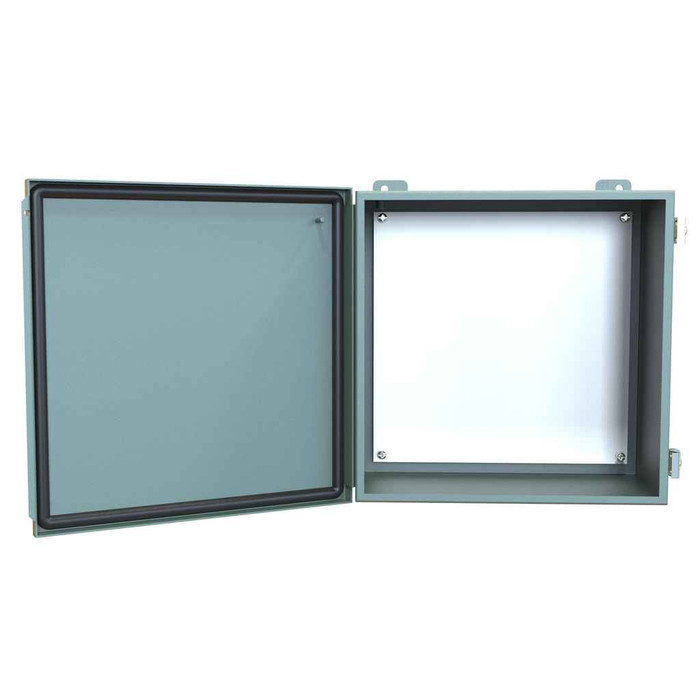

Hammond Manufacturing 1414PHL6 NEMA 12 HNGD CVR 12X12X6 - 12 x 12 x 6

Hammond Manufacturing 1414PHL6 NEMA 12 HNGD CVR 12X12X6 - 12 x 12 x 6

(No reviews yet) Write a Review

Model: 1414PHL6
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$278.06
$241.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
NEMA 12 HNGD CVR 12X12X6 - 12 x 12 x 6

1414PHL6 - spec sheet

Manufacturer Resources

Product Specs

Country Of Origin:
Canada
Csa Cert :
LR21001
Ip Rating:
IP54
Panel:
Included
Product Height:
12
Product Material:
Mild Steel
Product Weight:
17 lbs
Product Width:
12
Reach Compliant:
Yes
Rohs Compliant:
Yes
Standards:
csa, ul, ce
Type Rating:
type-12, type-13
Ul File :
E65324
Usmca Compliant:
Yes
Product Depth:
6
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosures
Product Type:
Hinged-Cover Enclosure

Hammond Manufacturing 1414PHL6 – Frequently Asked Questions

1) Does the Hammond 1414PHL6 enclosure come with a back panel, or do I order that separately?
A panel is included with the 1414PHL6. You get the 12 x 12 x 6 inch hinged cover enclosure with its mounting panel, so you can start laying out components without sourcing a subpanel as a separate line item.
2) Is the Hammond 1414PHL6 rated for a dusty or oily machine shop environment?
Yes. The 1414PHL6 carries Type 12 and Type 13 ratings, which cover indoor protection against falling dirt, circulating dust, lint and dripping non-corrosive liquids, with Type 13 adding oil and coolant spray. It is also IP54 rated. It is an indoor enclosure, not a washdown or outdoor box.
3) Is the Hammond 1414PHL6 UL and CSA listed for an inspected installation?
It is built to csa, ul and ce standards, with UL file E65324 and CSA certification LR21001. Those file numbers are what an inspector or a submittal package will ask for on a Type 12 enclosure.
4) What are the usable inside dimensions of the 1414PHL6, and will a 6 inch deep component fit?
The enclosure measures 12 inches high, 12 inches wide and 6 inches deep. That 6 inch depth is the overall body depth, so a component stack that is a full 6 inches deep will not clear once the panel and cover are in place. Plan around panel thickness and standoff height when you lay out breakers or drives.
5) What material is the 1414PHL6 enclosure, and can I use it in a damp or corrosive area?
The body is mild steel. Mild steel suits normal indoor industrial areas, but it is not the choice for corrosive chemical exposure, frequent washdown or outdoor wet locations; a stainless or non-metallic enclosure is the right call there.
6) Does the 1414PHL6 meet RoHS and REACH requirements for our procurement spec?
Yes, the 1414PHL6 is both RoHS and REACH compliant. It is also USMCA compliant and made in Canada, which matters for trade-agreement and domestic-content sourcing on government and institutional orders.
7) Is a hinged cover better than a screw cover for a control enclosure like this?
A hinged cover, which is what the 1414PHL6 has, pays off anywhere you open the box more than once: troubleshooting, resetting a drive, or adding circuits. The cover stays captive instead of being set on the floor, and you keep both hands free. Screw covers make sense for boxes you close up and leave alone, where the lower cost and a flush profile matter more than access.
8) How heavy is the 1414PHL6 box for wall mounting?
It weighs 17 lbs empty with the panel. One person can hang it, but on drywall or a hollow block wall you want anchors rated well above that, since the installed weight climbs once components and wire are inside and the hinged cover swings the load outward when open.
9) What exact part number do I order for the Hammond 12 x 12 x 6 NEMA 12 hinged cover enclosure?
The manufacturer part number is 1414PHL6 from Hammond Manufacturing. That number covers the 12 x 12 x 6 inch mild steel Type 12 hinged cover enclosure with panel included.
