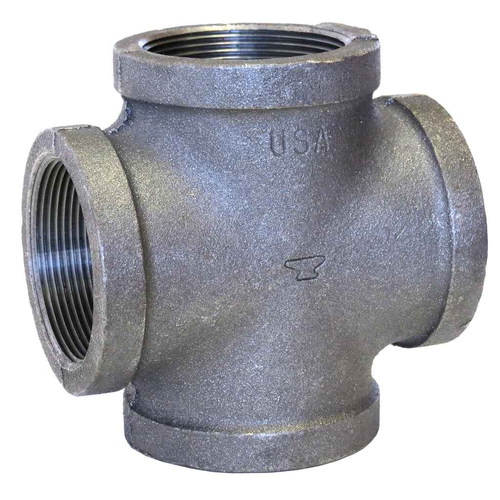

1 GALV MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 1
- Size 3:
- 1
- Size 4:
- 1
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 1.14 lbs
ASC Engineered Solutions 311070205 – Frequently Asked Questions
1) Are all four openings on this 1 inch galvanized malleable iron cross the same size?
Yes, it's a straight 1 inch cross. All four outlets are 1 inch with FPT (female pipe thread) connections, so it takes 1 inch threaded pipe on every branch with no reducing outlet.
2) Will this cross thread onto standard 1 inch black or galvanized steel pipe?
It will. The threads are cut to ASME B1.20.1, which is standard NPT taper thread, so it mates with any 1 inch NPT male pipe nipple or threaded pipe end. Use pipe dope or PTFE tape on the male threads as usual.
3) What pressure class is this 1 inch malleable iron cross?
It's standard class (STD), rated and dimensioned to ASME B16.3, the governing standard for threaded malleable iron fittings. If your drawing calls for a 300 class extra heavy fitting, this one will not meet it.
4) Is the galvanizing on this malleable iron fitting good enough for wet or outdoor piping?
The coating is hot dip galvanizing to ASTM A-153, the standard for zinc coating on iron and steel hardware. That's the finish normally specified for damp, outdoor, and wet-pipe sprinkler service where bare malleable iron would rust.
5) Will this cross lay in with fittings from another manufacturer on the same run?
It should. Both the face to end dimensions and the threads follow published standards, ASME B16.3 for the fitting body and ASME B1.20.1 for the thread, so it interchanges dimensionally with any other standard class 1 inch threaded malleable iron cross built to the same specs.
6) What material is this cross actually made from, and can it take a wrench?
Malleable iron to ASTM A-197, which is the cast fitting grade made to bend rather than crack under load. It takes normal pipe wrench makeup without the brittleness of plain cast iron. The fitting weighs 1.14 lbs.
