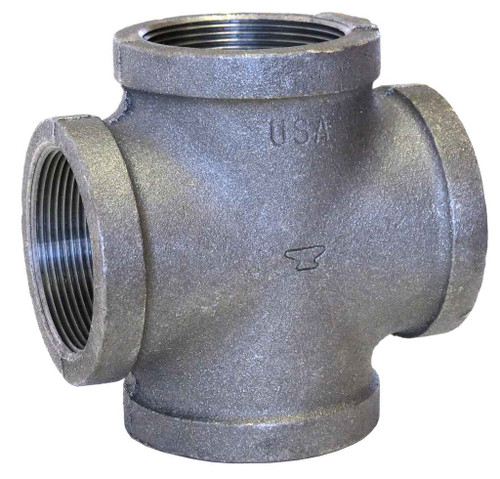

ASC Engineered Solutions 1/8 GALV MI CROSS

All four outlets on the ASC Engineered Solutions cross are 1/8 inch FPT, meaning female NPT threads cut to ASME B1.20.1. It mates directly with 1/8 inch male threaded pipe nipples on every branch, no reducer or adapter needed. Because all four ports are the same size, it is a straight cross rather than a reducing one.

Yes, the ASC Engineered Solutions 1/8 galvanized cross carries UL/FM recognition, which is what a fire protection contractor needs when the fitting goes into a sprinkler or standpipe assembly rather than general plumbing. It is a standard (STD) pressure class fitting rated per ASME B16.3.

The galvanizing here is a hot-dip zinc coating to ASTM A153, which is the spec for hardware dipped after fabrication, so the threads and the casting body are both coated. That is the usual choice for wet systems, exterior runs, and sprinkler piping where black iron would corrode. In an air or dry-gas line galvanized is not required, but it does no harm.

It is malleable iron to ASTM A197, not gray cast iron. Malleable iron takes threading and tolerates the wrenching load of tightening a nipple without cracking the way brittle cast iron can, which is why it is the standard body material for threaded pipe fittings. The dimensional layout follows ASME B16.3, so it interchanges with any other B16.3 malleable fitting of the same size and class.

A cross gives you four outlets from one fitting: a straight run through plus two opposed branches on the same centerline. Use it where two branches take off at the same point, such as a gauge and a drain on opposite sides of a small header, or a four-way manifold junction. Two tees do the same job but add a nipple between them and shift the branches apart, so pick the cross when the branches must be directly opposite and the space is tight. This ASC fitting is the 1/8 inch straight cross, all four ports female threaded.

That is the typical use. At 1/8 inch FPT this ASC cross is an instrumentation-size fitting, too small for supply piping but right for gauge trees, sensor tappings, pressure switch and test-port assemblies where you need several small connections at one point. It weighs 0.13 lbs, so it hangs off a nipple without needing its own support.
