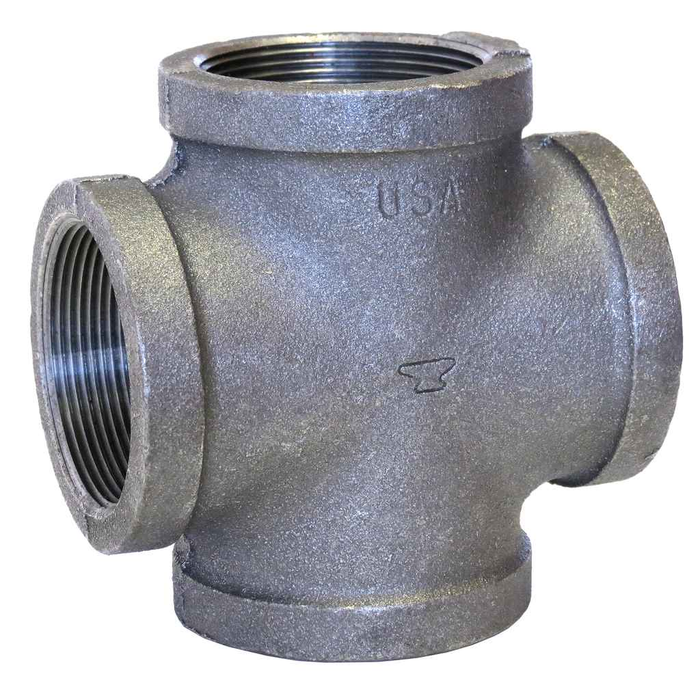

1/4 GALV MI CROSS
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- End Conn Size 4:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.25
- Size 2:
- 0.25
- Size 3:
- 0.25
- Size 4:
- 0.25
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Crosses
- Product Type:
- Cross
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.19 lbs
ASC Engineered Solutions 311069405 – Frequently Asked Questions
1) Are all four openings on the ASC 1/4 inch galvanized malleable iron cross the same size?
Yes, it's a straight cross: all four outlets are 1/4 inch female pipe thread (FPT). There's no reducing outlet, so any of the four branches takes the same 1/4 inch male-threaded pipe or nipple.
2) Can I use a galvanized malleable iron cross on a potable water line?
Galvanized malleable iron fittings like this one are commonly run on water, air, and low pressure steam and gas lines. The casting meets ASTM A-197 and the zinc coating is hot dip per ASTM A-153. Note this is a standard (STD) class fitting, not extra heavy, so match it to standard weight pipe and the pressure class for your service.
3) What pressure class is this 1/4 inch cross rated to?
The fitting is a standard class malleable iron cross rated per ASME B16.3, the same standard that governs its dimensions. Pressure-temperature ratings for 150 class malleable iron come from that standard, so if your drawing calls out an ASME B16.3 fitting, this meets it. For higher pressures you'd step up to an extra heavy (300 class) fitting.
4) Should I use a cross or two tees for a four-way pipe branch?
A cross gives you four outlets in one fitting on a single centerline, which keeps the assembly short and cuts two joints out of the job compared with back-to-back tees. Use two tees when the branches need to be offset from each other or run on different planes. This one is 1/4 inch FPT on every leg, so all four branches take the same pipe size.
