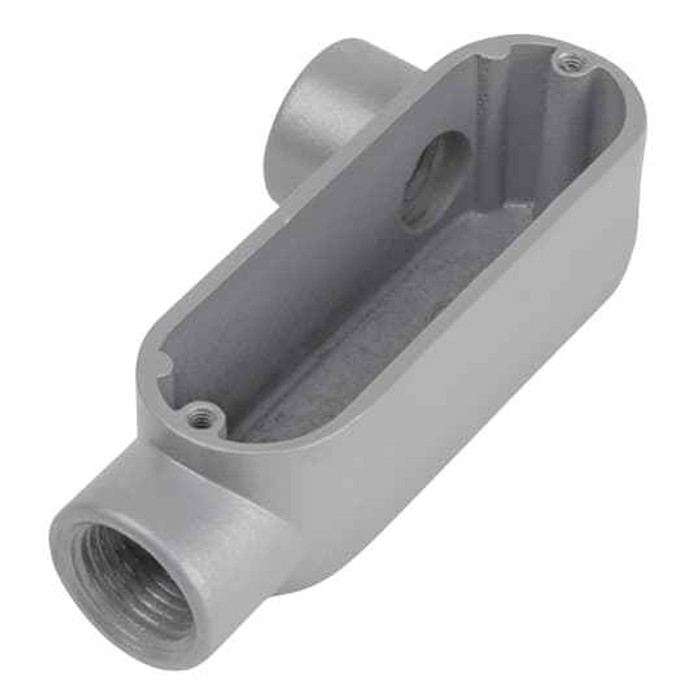

Thomas & Betts 1 Inch Aluminum Die Cast LR Conduit Body for Rigid/IMC Applications
Professional Grade Conduit Body for Electrical Installations
The Thomas & Betts 1 inch LR conduit body delivers reliable electrical conduit routing and wire pulling access for rigid and IMC conduit systems. Constructed from durable aluminum die cast material, this conduit body provides professional-grade performance for electrical installations requiring secure conductor routing and maintenance access points.
Professional Features & Benefits
- 1 Inch Trade Size: Compatible with standard 1 inch rigid and IMC conduit systems for versatile installation applications
- Aluminum Die Cast Construction: Provides superior durability and corrosion resistance for long-term electrical system reliability
- LR Configuration: Left-right design enables efficient conduit routing around obstacles and through tight spaces
- Rigid/IMC Compatibility: Engineered specifically for use with rigid metal conduit and intermediate metal conduit systems
- Professional Grade Design: Meets electrical industry standards for conduit body applications in commercial and industrial installations
- Access Point Functionality: Facilitates wire pulling and provides maintenance access for electrical conductor systems
Technical Specifications
- Department: Electrical
- Material: Aluminum Die Cast
- Number Of Batteries: 0
- Product Group: Conduit & Fittings
- Product Subgroup: Conduit Bodies
- Product Type: Conduit Body - Series A - Rigid/IMC
Professional Applications
- Commercial Building Electrical Systems
- Industrial Facility Conduit Installations
- Institutional Electrical Infrastructure
- Multi-Unit Residential Properties
- Professional Office Buildings
- Retail and Service Establishments
- Educational Facility Electrical Systems
Why Choose Thomas & Betts Quality?
Thomas & Betts conduit bodies deliver proven reliability through aluminum die cast construction and professional-grade engineering. The Series A design ensures consistent performance in rigid and IMC conduit applications, providing electrical contractors and facility managers with dependable conduit routing solutions for demanding electrical installations.
Manufacturer Resources
Spec Sheet
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Raceway
- Product Type:
- Type LR Conduit Body
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies & Covers
- Product Material:
- Aluminum Die Cast
Thomas & Betts ALR-3 – Frequently Asked Questions
1) What does the LR in the Thomas & Betts ALR-3 conduit body mean, and when do I use it instead of an LB or LL?
LR means the conduit enters the back of the body and turns to the right side. Use it when your run has to change direction to the right at a wall or around an obstruction while keeping a pull point. An LB turns back into a wall, an LL turns left. Same 1 inch rigid/IMC body, different exit direction, so pick the letter that matches which way your run has to go.
2) Is an aluminum conduit body OK outdoors or in a damp industrial area?
The ALR-3 is aluminum die cast, which resists corrosion well in typical exterior and industrial air. Watch two things: aluminum should not sit in direct contact with concrete or be used where it will be exposed to strong alkaline or chloride conditions, and a wet location needs the matching cover and gasket.
3) Can I make splices inside the ALR-3, or is it only a pull point?
A 1 inch LR body gives you wire pulling access and a maintenance access point on the run. Whether you can splice in it depends on the body's cubic inch capacity against your conductor count under NEC box fill rules, so count your conductors before you plan a splice there. As a directional pull elbow it handles the turn without a field bend.
4) Can I use the ALR-3 to replace a steel or malleable iron 1 inch LR body?
Threading is the same 1 inch NPT rigid/IMC thread, so it will land on the same conduit. The difference is material: the ALR-3 is aluminum die cast rather than iron. Keep the material consistent on a run where dissimilar metal contact or a specified iron body matters, and use the cover made for the aluminum Series A body rather than reusing the old iron cover.
5) What part number do I order for the 1 inch Thomas & Betts aluminum LR body?
Order Thomas & Betts ALR-3. That is the 1 inch trade size, aluminum die cast, LR configuration Series A body for rigid and IMC.
