Metallics JPMP40 10-24 x 1 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.47
$0.47

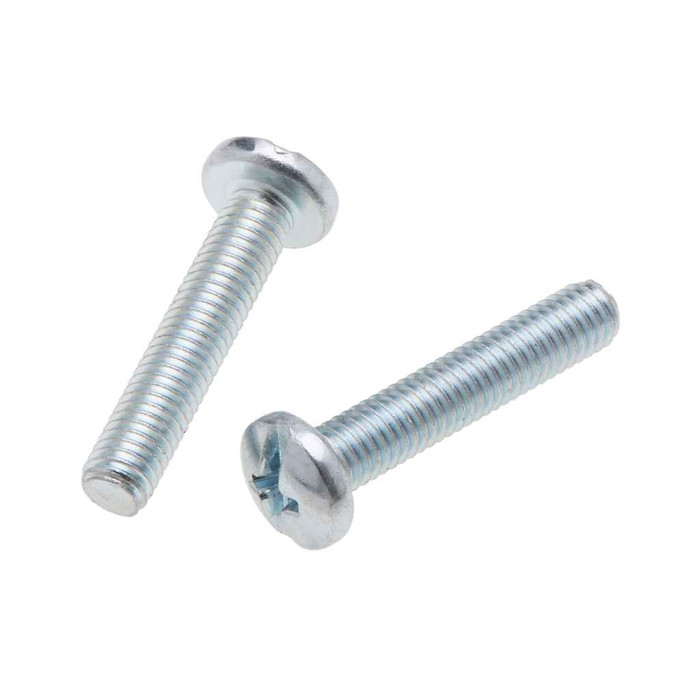

Metallics JPMP40 10-24 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP40 10-24 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP40
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.47
$0.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Pan head with Phillips Drive
    • 10-24 Diameter, 1" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
U
Buy American Compliant:
U
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Color:
Silver
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.81 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
24
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP40 – Frequently Asked Questions

1) Will a 10-24 x 1 in. pan head machine screw thread into a standard electrical box or device ring?
The Metallics JPMP40 is a 10-24 UNC machine screw, which is the thread used on standard steel outlet box device screws and mud ring tappings, so it threads into those 10-24 tapped holes. At 1 inch long it gives extra reach for mounting devices through thick plaster rings or stacked spacers, where the common box screw is shorter.
2) What size Phillips driver do I need for these Metallics machine screws?
Use a #2 Phillips. The recess is a Phillips drive with a 0.192 inch recess diameter and a gaging depth of 0.089 to 0.113 inch, which is why a #1 bit cams out and a #3 will not seat.
3) How is the JPMP40 packaged and what is the minimum order?
These 10-24 x 1 in. screws come in a jar, 100 count minimum. Jar weight is listed at 0.81 lbs, with jar dimensions of 3 in by 3 in by 2.15 in, which is useful if you are stocking a van drawer or MRO bin.
4) Are these machine screws made to a recognized dimensional spec?
Yes. The JPMP40 pan head Phillips machine screw is made to ASME B18.6.3-2010, the dimensional standard for inch-series machine screws, so head and recess geometry are interchangeable with any other screw built to that spec.
5) How strong are these zinc plated steel screws, and are they hard enough to drive without the heads twisting off?
Tensile strength is 60,000 psi minimum with a hardness of Rockwell B70 to B100, made from AISI 1006 to 1022 low carbon steel. That is standard low carbon machine screw strength, fine for device mounting, panel covers, and strut hardware, but it is not a graded high strength fastener for structural load.
6) Can I use zinc plated machine screws outdoors or in a wet location?
Zinc plated steel is a dry, indoor-duty finish. The JPMP40 is zinc over steel with a silver head, which handles normal interior humidity but will rust in exterior, damp, or coastal service. For wet locations or corrosive environments go to a stainless machine screw of the same 10-24 x 1 in. size.
7) Does the Metallics JPMP40 come with nuts or washers?
No, it is screws only, 100 to the jar. If you are through-bolting rather than threading into a tapped hole, order 10-24 UNC nuts and washers separately.
8) Is the JPMP40 Buy American or ARRA compliant for a government job?
Country of origin on the JPMP40 is listed as multiple, and the ARRA and Buy American status is undetermined, so do not spec it where a domestic-origin certification is a contract requirement.
