Metallics JPMP1032 10-32 x 1 i...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.49
$0.49

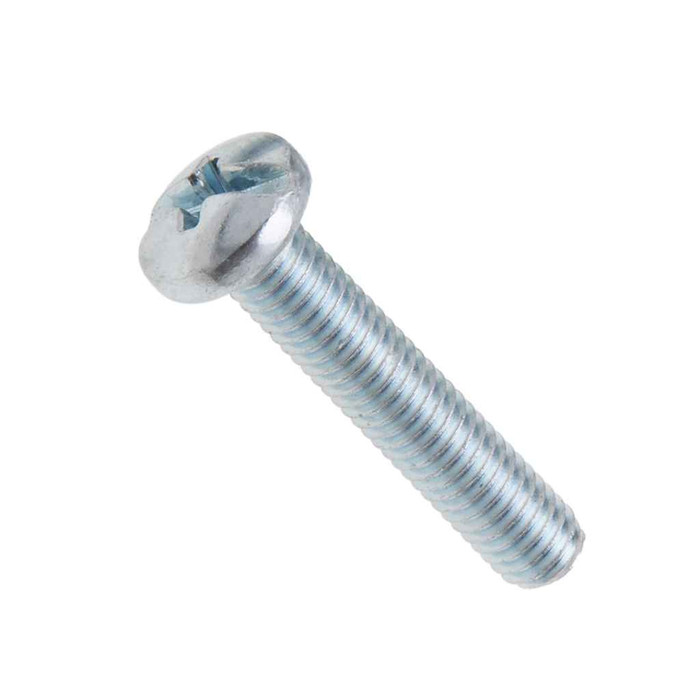

Metallics JPMP1032 10-32 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

Metallics JPMP1032 10-32 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JPMP1032
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.49
$0.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Pan Head Phillips Machine Screws - Steel Zinc - 100qty

  • Features

    • Pan head with Phillips Drive
    • Steel Zinc Material
    • 10-32 Diameter, 1" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
0.95 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Remarks:
The catalog UPC differ from the tarnsaction daat spreadsheet UPC
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
PMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JPMP1032 – Frequently Asked Questions

1) Is 1 inch too long for mounting a device in a 2-1/8 inch deep box?
The JPMP1032 has a 1 inch shank length, which is longer than the 1/2 inch screws that ship with most devices. That extra length is what you want when you are picking up an extension ring, a plaster ring, or stacking through a thick cover or spacer. If you are threading into a shallow tapped ear with no clearance behind it, the screw will bottom out or protrude, so for a flush device mount with no added material a shorter machine screw is the right call.
2) Do these screws meet Buy American or ARRA requirements for a public project?
No. The Metallics JPMP1032 is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. If your contract carries a domestic sourcing clause, this part will not satisfy it and you need a domestically produced machine screw instead.
3) What screwdriver or bit do I need for these Metallics pan head screws?
A #2 Phillips. The drive is Phillips with a recess diameter of 0.192 inch and a recess penetration gaging depth of 0.089 to 0.113 inch, so a #2 bit seats fully. A #1 will cam out and a #3 will not seat.
4) How do these 10-32 screws ship, and what is the minimum I can buy?
They come in a jar of 100, and 100 is the order minimum. Jar weight is 0.95 lbs. Metallics notes other sizes and quantities in the PMP machine screw line are available by request.
5) Is a machine screw the right fastener here, or do I need a self-tapping sheet metal screw?
A machine screw like the JPMP1032 needs a pre-tapped hole or a nut, it will not cut its own thread. Use it where the hole is already threaded, such as device ears, box screw holes, strut nuts, and enclosure bosses. For fastening into un-tapped sheet metal or a drilled blank hole, a self-drilling or sheet metal screw is the correct part.
6) What is the tensile strength and hardness of these Metallics machine screws?
60,000 psi minimum tensile, with hardness in the Rockwell B70 to B100 range, made from AISI 1006 to 1022 low carbon steel. That is standard commercial-grade machine screw material, suited to device and enclosure mounting rather than structural or high-torque clamping loads.
