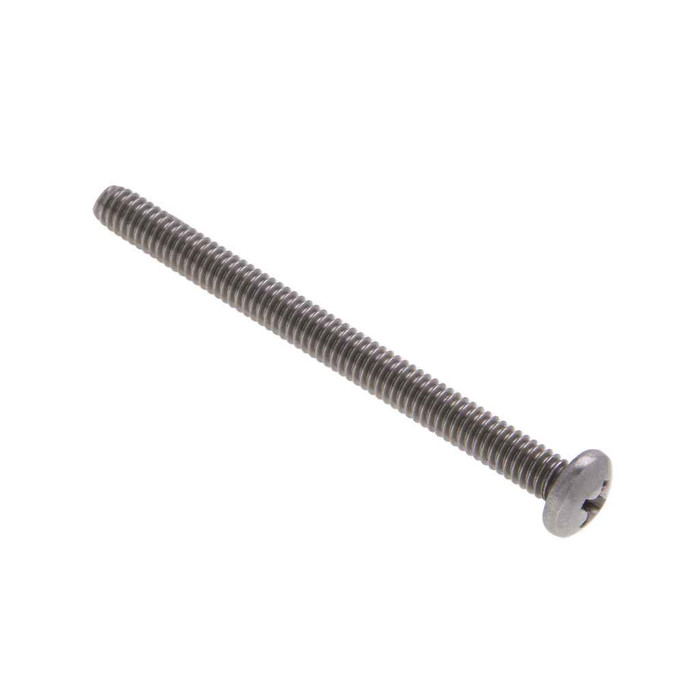

Metallics JSPMP2SS 10-24 x 3/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP2SS 10-24 x 3/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP2SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.54
$0.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 3/4 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with Phillips Drive
    • 18-8 Stainless Material
    • 10-24 Diameter, 3/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.74 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
24
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP2SS – Frequently Asked Questions

1) Will a 10-24 machine screw thread into a standard electrical box or device ring?
Yes. The Metallics JSPMP2SS is a 10-24 machine screw, 24 threads per inch, which is the standard machine screw thread used for device mounting in outlet boxes, mud rings and plaster rings. At 3/4 inch long it gives enough thread engagement for most box tapped holes without bottoming out behind the box.
2) Are these 18-8 stainless screws OK for outdoor or damp-location work?
The material is 18-8 stainless, which is the common austenitic grade used where corrosion resistance matters, so these hold up in damp and wet-location work far better than plated steel machine screws. Metallics lists the field application as the electrical, plumbing, heating and air conditioning trades.
3) Are these Buy American or ARRA compliant for a federal or public project?
No. The JSPMP2SS is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your job carries a domestic-sourcing requirement, these stainless pan head screws will not satisfy it.
4) How many screws come in a jar of Metallics JSPMP2SS?
They ship 100 to a jar, and the jar is the order minimum. Jar weight is listed at 0.74 lbs.
5) What size Phillips driver or bit do these stainless machine screws take?
A #2 Phillips. The recess diameter is 0.192 in. with a gaging depth of 0.089 to 0.113 in., so a #2 bit seats fully; a #1 will cam out and a #3 will not seat.
6) How much does the pan head stick up, and will it clear a cover plate?
Head height runs 0.122 to 0.133 in. with a head width of 0.357 to 0.373 in. That is a low, broad pan profile with a flat bearing face, so it sits close to the surface and spreads load over a sheet metal or plastic part rather than pulling through. It is not a flush head, so it will not sit down in a countersink.
7) Do these machine screws meet a dimensional spec I can put on a submittal?
Head and recess dimensions conform to ASME B18.6.3-2010, the inch-series standard for slotted and recessed head machine screws, and material is called out to SAE. Tensile strength is listed at 80,000 psi minimum, with hardness Rockwell BBS-B9S. Metallics notes that stainless screw tensile values are approximations, since there is no single performance standard for stainless machine screws.
8) Can I get 10-24 pan head stainless screws in a different length or a larger quantity?
Yes. Metallics offers other sizes and quantities in this pan head Phillips machine screw line by request; the JSPMP2SS itself is fixed at 10-24 x 3/4 in. in a 100-count jar.
