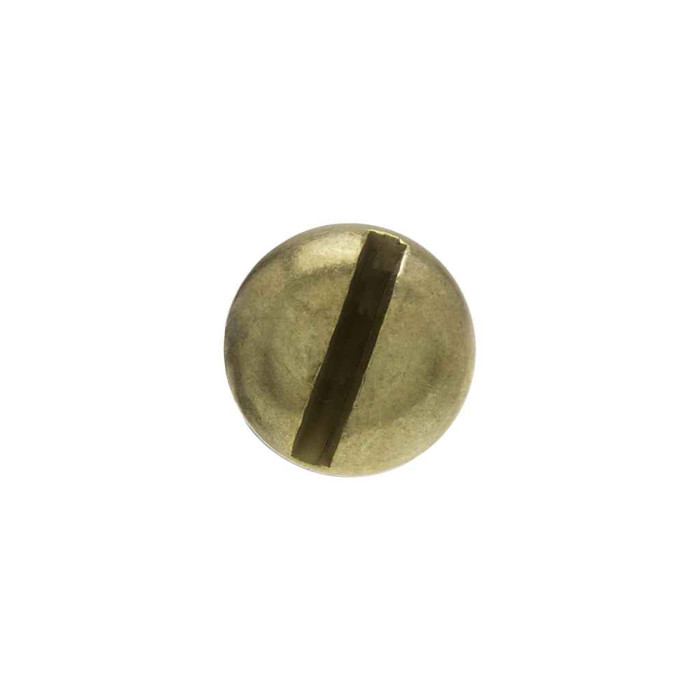

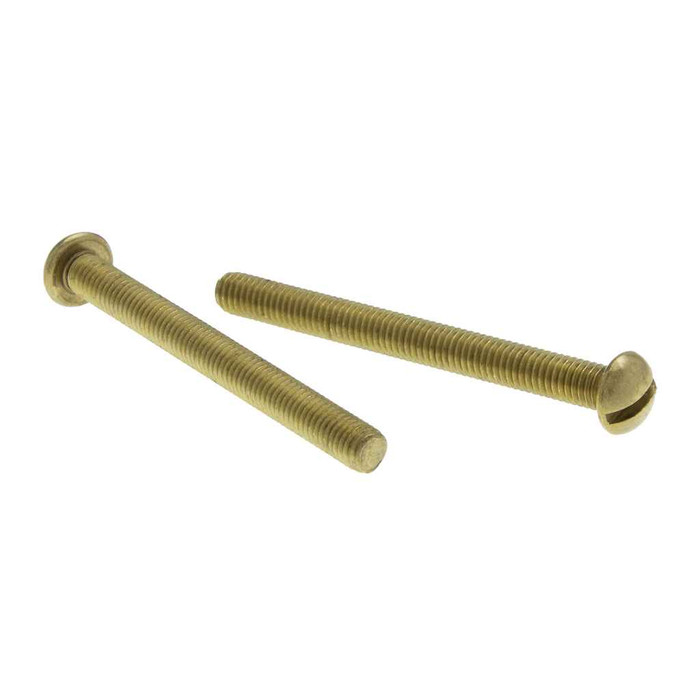

Metallics JRMB92 10-24 x 3/4 in. Round Head Slotted Machine Screws - Brass - 100qty

Metallics JRMB92 10-24 x 3/4 in. Round Head Slotted Machine Screws - Brass - Each

(No reviews yet) Write a Review

Model: JRMB92
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 3/4 in. Round Head Slotted Machine Screws - Brass - 100qty

  • Features

    • Brass Material
    • 10-24 Diameter, 3/4" Length
    • Round head with slotted Drive

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.79 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
ANSI/ASME B1.1
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRMB
Product Details:
Machine Screw
Product Material:
Brass

Metallics JRMB92 – Frequently Asked Questions

1) Will a 10-24 machine screw thread into a standard electrical box or device ground hole?
Yes. 10-24 is the thread used for box mounting holes and ground screw holes in standard steel outlet and switch boxes, and the Metallics JRMB92 is cut to 10-24 at 24 threads per inch to the ANSI/ASME B1.1 thread standard, so it will mate with any tapped 10-24 hole. At 3/4 inch long it gives enough engagement for a ground pigtail or a mounting bracket; for deeper stack-ups you need a longer screw.
2) Are these Metallics brass machine screws Buy American or ARRA compliant for a government job?
No. The JRMB92 is not Buy American compliant and is not ARRA compliant, and country of origin is listed as multiple. If your contract carries a domestic sourcing clause, this part will not satisfy it.
3) Why pick a brass machine screw instead of steel or stainless for electrical work?
Brass is conductive and corrosion resistant, which is why it is the usual choice for bonding and grounding connections rather than plain steel. The JRMB92 is solid brass, 10-24 x 3/4 inch, and is intended for the electrical, plumbing, heating and air conditioning trades. Brass is softer than steel, so do not use it where high clamp load or torque is the point, use it where the connection has to stay conductive and not rust.
4) Does a machine screw like this cut its own thread, or do I need a tapped hole?
A machine screw has a blunt, uniform thread and does not form its own thread. The JRMB92 needs a pre-tapped 10-24 hole or a 10-24 nut behind the work. If you are fastening into sheet metal or plastic with no tapped hole, you want a self-tapping or sheet metal screw instead, not this.
