Metallics JRMB7 10-24 x 3/8 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.69
$0.69

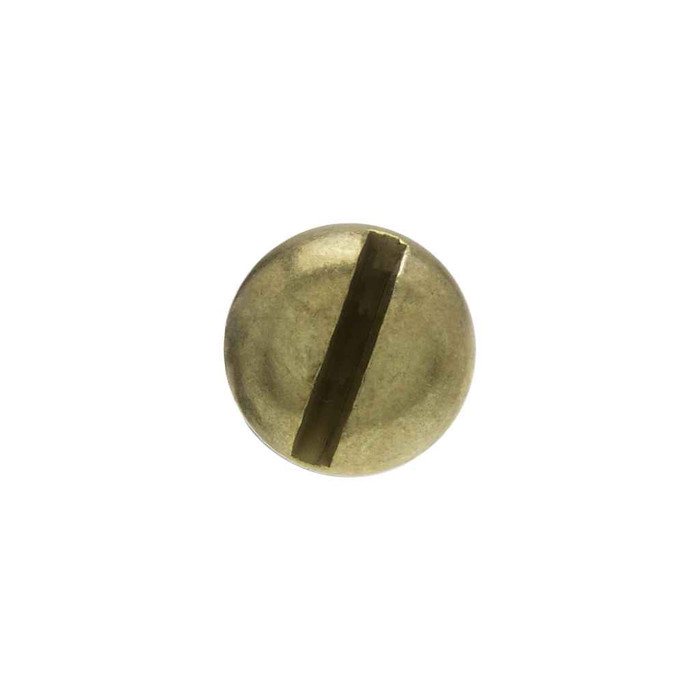

Metallics JRMB7 10-24 x 3/8 in. Round Head Slotted Machine Screws - Brass - 100qty

Metallics JRMB7 10-24 x 3/8 in. Round Head Slotted Machine Screws - Brass - Each

(No reviews yet) Write a Review

Model: JRMB7
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.69
$0.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 3/8 in. Round Head Slotted Machine Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • 10-24 Diameter, 3/8" Length
    • Round head with slotted Drive
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
8-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.45 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
ANSI/ASME B1.1
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRMB
Product Details:
Machine Screw
Product Material:
Brass

Metallics JRMB7 – Frequently Asked Questions

1) Can I use these on a federally funded job with Buy American requirements?
No. The JRMB7 brass machine screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. For a project with domestic sourcing requirements you need a domestically manufactured fastener instead.
2) Why choose brass machine screws instead of steel or stainless?
Brass is the material on the JRMB7, and electricians use it where the screw is part of a bonding or grounding path or where corrosion in a damp location would seize a plated steel screw. It is softer than steel, so do not drive it hard with a power driver into a damaged thread. If you need higher tensile strength, a steel or stainless screw of the same 10-24 x 3/8 size is the better pick.
3) How are these brass machine screws packaged, and is there a minimum order?
They ship in a jar of 100. Order minimum on the JRMB7 is one jar, and the packed jar weighs 0.45 lbs. Other sizes and quantities are available by request.
4) Do these brass screws meet a recognized dimensional spec for submittals?
Head, slot and thread dimensions on the JRMB7 conform to ASME B18.6.3, the standard for inch-series machine screws, and the threads to ANSI/ASME B1.1. That pair of references is what a spec reviewer looks for on a machine screw submittal.
5) Are these only for electrical work, or can plumbing and HVAC crews use them too?
Field application covers the electrical, plumbing, heating and air conditioning trades. It is a general-purpose 10-24 x 3/8 in. brass machine screw, so anywhere you have a tapped 10-24 hole in a panel, box, strap or fixture it will serve, regardless of trade.
