Metallics JFMP19SS 10-24 x 3/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JFMP19SS 10-24 x 3/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JFMP19SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.31
$0.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-24 x 3/8 in. Flat Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Stainless steel machine screws are used in applications which require general atmospheric corrosion resistance, in food processing machinery and refrigeration equipment.
    • 18-8 Stainless Material
    • Flat head with Phillips Drive
    • 10-24 Diameter, 3/8" Length
    • Stainless is also superior to steel in withstanding some elevation in application operating temperature while maintaining its strength.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
8-Mar
Gaging Diameter:
0.313
Hardness:
Rockwell B85-B95
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Depth:
0.124
Phillips Recess Diameter:
0.198
Phillips Recess Width:
0.032
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.38 lbs
Product Width:
3 in
Protrusion Gaging Diameter:
0.025 - 0.042 Above
Sub Division:
Electrical-E H2
Tensile Strength:
1050 lb minimum
Thread Per Inch:
24
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JFMP19SS – Frequently Asked Questions

1) Will a 10-24 x 3/8 in. machine screw thread into standard electrical box and device mounting holes?
The Metallics JFMP19SS is a 10-24 UNC thread screw cut to ANSI/ASME B1.1, with 24 threads per inch, so it mates with any tapped 10-24 hole. That is the thread used on most steel outlet and device box mounting ears and on cover plate bosses. At 3/8 in. long it is short, so it suits a single-thickness bracket or ear; if you are stacking a plaster ring plus a bracket you need a longer screw.
2) Will a flat head machine screw sit flush, and what countersink does it need?
Flat head means it is designed to finish flush in a countersunk or chamfered hole. On the JFMP19SS the head measures 0.333 to 0.362 in. across with a head height of 0.098 to 0.116 in., so the countersink has to accept roughly a 3/8 in. head. In a plain punched hole with no chamfer the head will stand proud by about the head height. The screws are made to ASME B18.6.3-1998 head dimensions, so they interchange with any other B18.6.3 flat head 10-24.

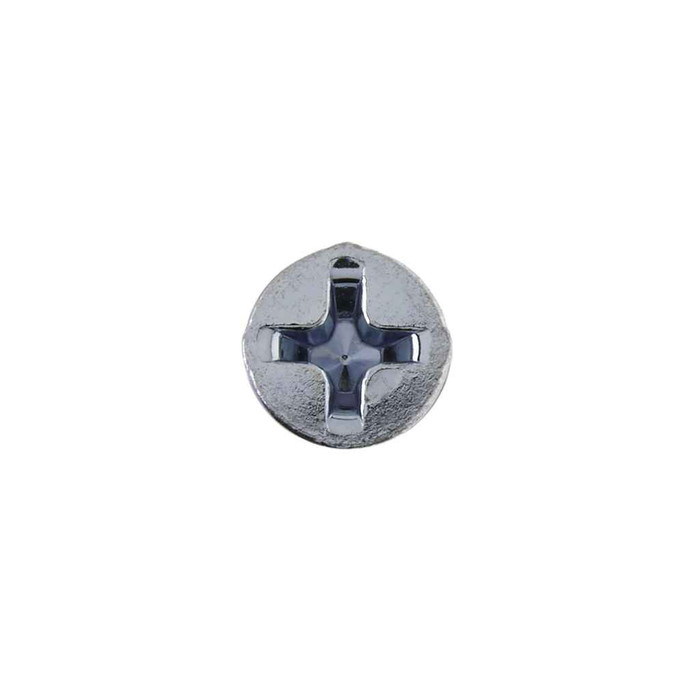

3) What size Phillips driver do I need for these Metallics 10-24 stainless screws?
A #2 Phillips. The recess on the JFMP19SS measures 0.198 in. diameter with a 0.124 in. depth, which is a #2 recess, so a #2 bit seats fully and keeps you from camming out in stainless. Stainless is softer than hardened steel and will chew a recess quickly with an undersized bit.
4) Are these stainless screws suitable for outdoor, washdown, or refrigeration use?
Yes. The JFMP19SS is 18-8 stainless, which is used where general atmospheric corrosion resistance is needed, including food processing machinery and refrigeration equipment. 18-8 also holds its strength better than plain steel at elevated operating temperatures. For heavy salt or chemical exposure, 18-8 is not the same as a 316 grade.
5) Do these screws meet Buy American or ARRA requirements for a public project?
The JFMP19SS carries both an ARRA compliant and a Buy American compliant designation in Metallics' data, with country of origin listed as China. Institutional and government buyers working to a specific domestic-content clause should match the clause wording against those designations, since the two programs are written differently.
6) Is a machine screw the right choice, or should I be using a sheet metal or self-tapping screw?
A machine screw like the JFMP19SS has a uniform 10-24 UNC machine thread with a blunt end, so it needs a tapped hole or a nut on the back side. It will not cut its own thread. If you are fastening into unthreaded sheet steel with no access behind, use a self-tapping or sheet metal screw instead. Where the hole is already tapped 10-24, as on device boxes and equipment chassis, the machine screw is correct.
7) How are these Metallics JFMP19SS screws packaged and what is the minimum order?
They come in a jar of 100 pieces, and 100 count is the order minimum. Packaged weight is 0.38 lbs. For an MRO crib or a service van, the jar keeps the count contained rather than loose in a bin.
8) Can I get this Metallics flat head stainless screw in other lengths or diameters?
The JFMP19SS is the 10-24 x 3/8 in. size in Metallics' FM and FMP flat head machine screw series, and other sizes and quantities in that series are available by request. If you need the same 18-8 stainless flat head Phillips in a longer shank for stacked brackets, ask for the series size you need rather than substituting a different head style.
