Metallics JSPMP36SS 10-32 x 1-...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.69
$0.69

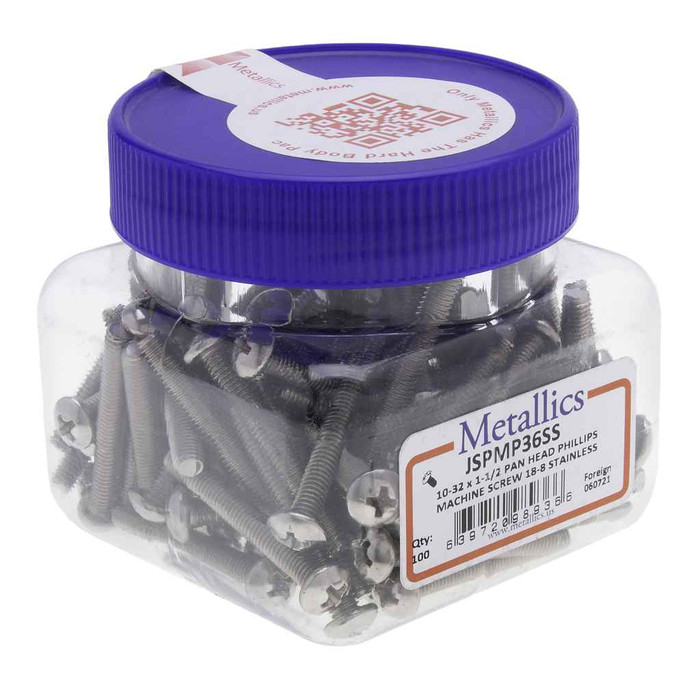

Metallics JSPMP36SS 10-32 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP36SS 10-32 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP36SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.69
$0.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • 10-32 Diameter, 1-1/2" Length
    • Pan head with Phillips Drive
    • 18-8 Stainless Material

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1/1/02
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.14 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP36SS – Frequently Asked Questions

1) Is 18-8 stainless the right choice for outdoor or damp-location electrical work?
18-8 stainless is the usual pick for wet locations, exterior boxes, coastal jobs, and food or wash-down areas where a plated steel screw rusts and seizes in the tapped hole. The JSPMP36SS is 18-8 stainless throughout, not plated, so there is no coating to wear through at the threads or the driver recess.
2) Will the pan head sit flush enough under a cover plate or clear a device strap?
Pan head, so it sits proud of the surface rather than countersunk. Head height runs 0.122 to 0.133 inch and head width 0.357 to 0.373 inch. That is a low, broad bearing surface that spreads load on sheet metal and slotted straps, but if your detail needs the fastener to finish flush you want a flat head in a countersunk hole instead.
3) What screwdriver or bit do I need for these Metallics pan head screws?
A #2 Phillips bit. The recess is a Phillips drive with a 0.192 inch recess diameter and a gaging depth of 0.089 to 0.113 inch, so a #2 seats fully. A #1 will cam out and chew the recess; a #3 will not bottom in it.
4) How much load will a 10-32 stainless machine screw take?
Tensile strength is 80,000 psi minimum, with hardness reported as Rockwell BBS-B9S. Worth knowing: there is no single standard for the performance requirements of stainless machine screws, so tensile values for stainless are approximations. If a drawing calls out a specific grade or proof load, a graded steel fastener is the safer specification.
5) Do these screws meet Buy American and ARRA requirements for a public works project?
The JSPMP36SS is flagged compliant for both Buy American and ARRA, with country of origin listed as multiple. For a federally funded job, cite the Metallics part number on your submittal and the compliance flags carry through on the product record.
6) Can I use a machine screw like this in wood or drywall?
No. A machine screw has a uniform straight thread with no point, so it needs a tapped hole or a nut to engage. For wood, drywall, or sheet metal with no pre-tapped hole you want a wood screw, self-tapping sheet metal screw, or a self-drilling screw. Use the 10-32 x 1-1/2 in. stainless pan head where there is already a 10-32 tapped hole, such as a device box ear or a mounting bracket.
7) What dimensional standard do these pan head screws conform to, for a spec submittal?
Head and recess geometry conform to ASME B18.6.3-2010, the standard for machine screws and tapping screws, with material called out to SAE. That is what lets you confirm the 0.357 to 0.373 inch head width and the Phillips recess will match anything else on the job specified to the same standard.
