Metallics JSPMP33SSV 10-32 x 1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.44
$0.44

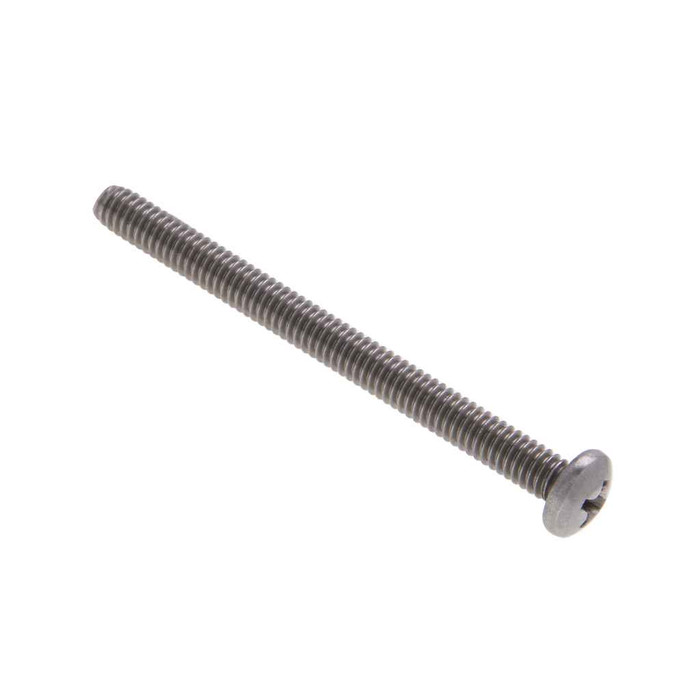

Metallics JSPMP33SSV 10-32 x 1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 500qty

Metallics JSPMP33SSV 10-32 x 1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP33SSV
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.44
$0.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1/2 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 500qty

  • Features

    • Pan head with Phillips Drive
    • 18-8 Stainless Material
    • 10-32 Diameter, 1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
2-Jan
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP33SSV – Frequently Asked Questions

1) Will a 10-32 pan head machine screw thread into a standard electrical box or device yoke?
Yes. 10-32 at 32 threads per inch is the standard machine screw thread used for device mounting in outlet boxes, switch boxes and ground screw holes, so the Metallics JSPMP33SSV threads straight into those tapped holes. At 1/2 inch long it suits mounting devices, covers and straps where the tapped hole is shallow.
2) Are these Metallics machine screws corrosion resistant enough for outdoor or damp locations?
They are 18-8 stainless, the austenitic 300 series grade used where plated carbon steel would rust. That makes them suitable for damp, washdown and exterior-exposed mounting work. Note stainless is not a high-strength material: tensile strength is listed at 80,000 psi minimum and hardness at Rockwell BBS-B9S, so use them for fastening, not for highly loaded structural connections.
3) Are these machine screws Buy American or ARRA compliant for a federal or government job?
No. The JSPMP33SSV is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project carries domestic-sourcing requirements, these will not satisfy them.
4) Will a 10-32 machine screw work in a self-drilling or sheet metal application?
No. A machine screw has a uniform straight thread and no point, so it needs a pre-tapped hole or a nut. For bare sheet metal or an untapped hole you want a self-tapping sheet metal screw instead. Use the 18-8 stainless pan head Phillips where the hole is already threaded, such as device straps, boxes and enclosure bodies.
5) What size Phillips screwdriver or bit do I need for 10-32 pan head screws?
A #2 Phillips. The recess diameter is 0.192 in. with a gaging depth of 0.089 to 0.113 in., which is what a #2 bit is cut for. A #1 will cam out and a #3 will not seat.
6) How are these 10-32 stainless machine screws packaged, and is there a minimum quantity?
They ship in a jar of 500 pieces, with 500 each as the order minimum. Good for a shop or truck stock bin rather than a one-off repair.
7) Do these screws meet a dimensional spec I can put on a submittal?
The Metallics JSPMP33SSV is made to ASME B18.6.3-2010, the dimensional standard for inch-series machine screws, with material called out to SAE. That covers head geometry, thread and recess dimensions, so it interchanges with any other B18.6.3 10-32 pan head Phillips screw.
