Metallics JSPMP35SS 10-32 x 1 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.63
$0.63

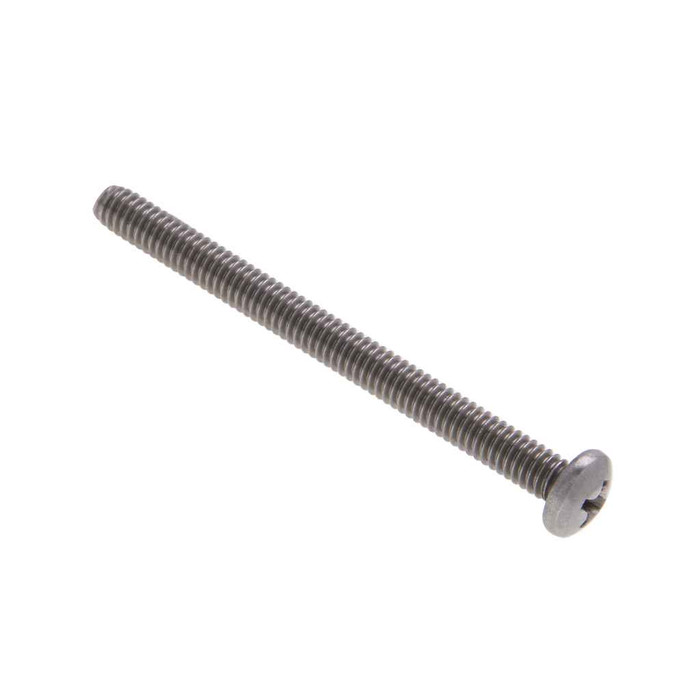

Metallics JSPMP35SS 10-32 x 1 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP35SS 10-32 x 1 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP35SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.63
$0.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Pan head with Phillips Drive
    • 18-8 Stainless Material
    • 10-32 Diameter, 1" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
1.02 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP35SS – Frequently Asked Questions

1) Are these stainless screws OK for outdoor or damp-location electrical work?
The JSPMP35SS is 18-8 stainless, which is the austenitic grade commonly specified for corrosion resistance in wet and outdoor locations, so it holds up far better than a plated steel machine screw in a damp basement, exterior box, or coastal install. For heavy chloride exposure a 316 grade is the step up.
2) Can I use these on a Buy American or ARRA-funded project?
No. The JSPMP35SS is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. On a federally funded job with domestic sourcing requirements you will need a domestically produced fastener instead.
3) Will a machine screw like this bite into wood or drywall?
No. A machine screw has a uniform straight thread and needs a tapped hole or a nut, so it threads into the 10-32 holes already in a box, strut channel fitting, panel, or bracket. For wood framing or drywall you want a wood screw or a self-drilling sheet metal screw, not a 10-32 machine screw.
4) What size Phillips driver fits these Metallics pan head machine screws?
A #2 Phillips. The recess diameter is 0.192 in. with a gaging depth of 0.089 to 0.113 in., so a #2 bit seats fully. Going to a #1 will cam out and chew the recess, especially in stainless.
5) How much room does the pan head take up once the screw is seated?
The pan head measures 0.357 to 0.373 in. across with a head height of 0.122 to 0.133 in., so it sits roughly an eighth of an inch above the surface. That low profile clears most cover plates and panel doors, but if you need the head flush with the surface you want a flat head screw instead, not this pan head.
6) How are these 10-32 machine screws packaged and what is the minimum order?
They ship in a jar of 100, which is the order minimum, and the jar weighs 1.02 lbs. It is a shop-stock quantity rather than a loose single screw, so plan on the full 100-count unit.
7) Do these Metallics machine screws meet a dimensional spec I can put on a submittal?
They are made to ASME B18.6.3-2010, the dimensional standard for inch-series machine screws, with SAE material standard and a hardness of Rockwell BBS-B9S. Tensile strength is 80,000 psi minimum, though Metallics notes stainless machine screw tensile values are approximations because there is no single performance standard for them.
8) What trades commonly stock the Metallics SPMP series machine screws?
Metallics lists the SPMP pan head Phillips series for the electrical, plumbing, heating and air conditioning industries. It is general MRO mounting hardware, used for devices, covers, brackets, and equipment panels wherever a 10-32 tapped hole is involved.
9) I need a different length or thread in the same stainless pan head screw. Is that possible?
Yes, Metallics offers other sizes and quantities in this pan head Phillips stainless line by request. The JSPMP35SS itself is fixed at 10-32 x 1 inch in 18-8 stainless.
