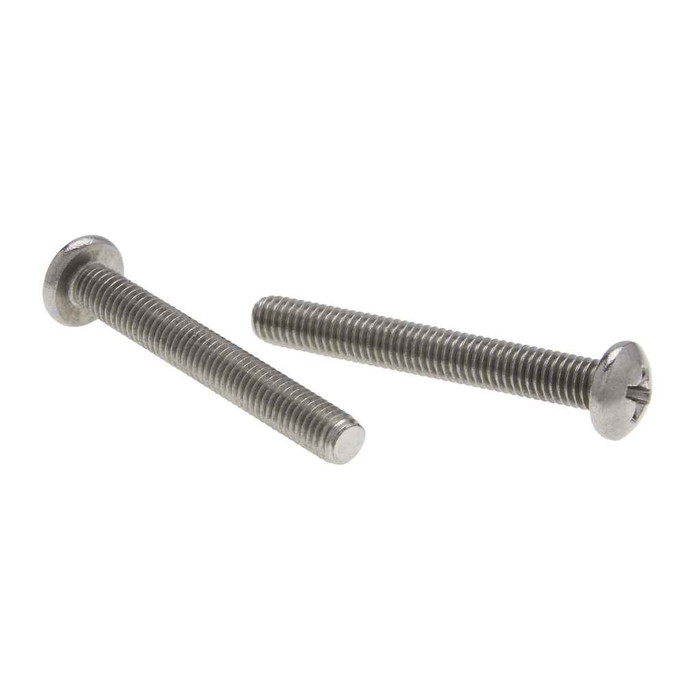

Metallics JSPMP23SS 10-32 x 7/8 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

Metallics JSPMP23SS 10-32 x 7/8 in. Pan Head Phillips Machine Screws - 18-8 Stainless - Each

(No reviews yet) Write a Review

Model: JSPMP23SS
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.57
$0.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 7/8 in. Pan Head Phillips Machine Screws - 18-8 Stainless - 100qty

  • Features

    • 18-8 Stainless Material
    • Pan head with Phillips Drive
    • 10-32 Diameter, 7/8" Length

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#2
Fastener Head Height:
0.122 - 0.133 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.357 - 0.373 in.
Fastener Length:
8-Jul
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell BBS-B9S
Language Code:
EN
Material Standard:
SAE
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Head_Screw_St_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.192
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.73 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.089 - 0.113
Sub Division:
Electrical-E H2
Tensile Strength:
80000 psi minimum
Thread Per Inch:
32
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
SPMP
Product Details:
Machine Screw
Product Material:
18-8 Stainless

Metallics JSPMP23SS – Frequently Asked Questions

1) Are these stainless screws suitable for outdoor or damp-location electrical work?
They are 18-8 stainless, the austenitic grade normally specified for wet, damp, and exterior locations where a plated steel screw would rust and seize. Metallics lists the application as the electrical, plumbing, heating and air conditioning trades, so they suit outdoor boxes, mechanical rooms, and coastal or washdown areas.
2) Can I use these on a federally funded job with Buy American requirements?
No. The JSPMP23SS is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. For a project with domestic sourcing requirements you need a fastener with a documented domestic origin instead.
3) What size Phillips bit do I need for these Metallics machine screws?
A #2 Phillips. The recess is a Phillips with a 0.192 in. recess diameter and a gaging depth of 0.089 to 0.113 in., so a #2 driver seats fully. A #1 will cam out and a #3 will not bottom in the recess.
4) How wide is the pan head, and will it cover an oversized or slotted mounting hole?
The head measures 0.357 to 0.373 in. across with a head height of 0.122 to 0.133 in. That bearing surface covers the slotted mounting holes common on device straps and box ears, and the low profile keeps it from interfering with a wall plate sitting flush.
5) How many 10-32 x 7/8 stainless pan head screws come in a jar, and can I buy fewer?
They ship as a 100-piece jar, which is the order minimum. The pack weighs 0.73 lbs. Metallics does offer other sizes and quantities in the SPMP line by request, but the 100-count jar is the standard unit for the JSPMP23SS.
6) What is the tensile strength of these 18-8 stainless machine screws?
80,000 psi minimum, with a hardness of Rockwell BBS-B9S. Metallics notes that tensile values for stainless machine screws are approximations because there is no single performance standard for them, so if your drawing calls out a specific grade and proof load, a plated steel screw to a defined grade is the safer specification.
7) Do these screws meet a dimensional standard I can put on a submittal?
The JSPMP23SS is made to ASME B18.6.3-2010, the dimensional standard for inch-series machine screws, with material to SAE. That covers head dimensions, recess geometry, and thread form, which is what a spec reviewer looks for on a fastener submittal.
