Metallics JRMB73 10-32 x 1-1/2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.29
$1.69

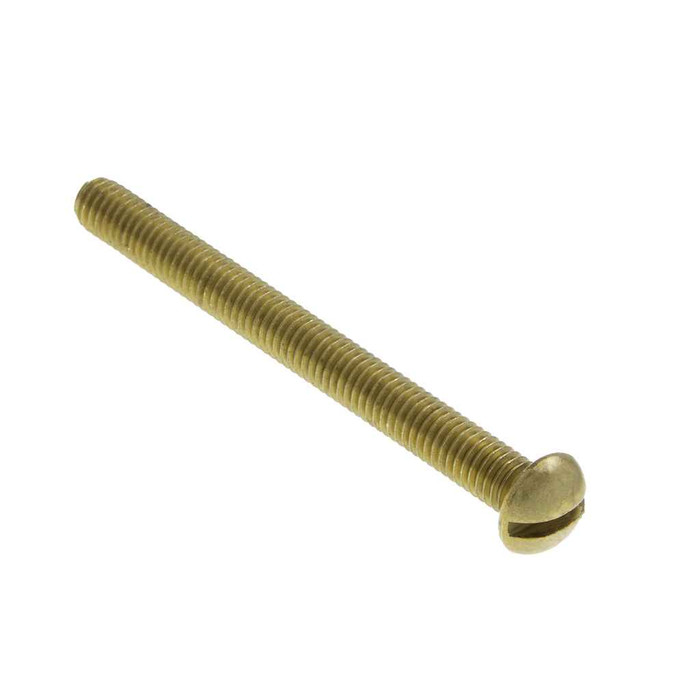

Metallics JRMB73 10-32 x 1-1/2 in. Round Head Slotted Machine Screws - Brass - 100qty

Metallics JRMB73 10-32 x 1-1/2 in. Round Head Slotted Machine Screws - Brass - Each

(No reviews yet) Write a Review

Model: JRMB73
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.29
$1.69
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/2 in. Round Head Slotted Machine Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • Round head with slotted Drive
    • 10-32 Diameter, 1-1/2" Length
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ASME B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1/1/02
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.35 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRMB
Product Details:
Machine Screw
Product Material:
Brass

Metallics JRMB73 – Frequently Asked Questions

1) Will a Metallics JRMB73 machine screw thread into a 10-32 tapped hole in a device box or fixture strap?
Yes. The JRMB73 is a 10-32 machine screw, meaning a #10 diameter with 32 threads per inch, cut to ANSI/ASME B1.1. That is the standard thread used in outlet box ears, fixture straps and device mounting holes, so it drops into any 10-32 tapped hole. The 1-1/2 inch length gives you the reach for deep-set boxes or stacked plaster rings.
2) Can I use these brass machine screws on a federally funded or Buy American job?
No. The JRMB73 is not Buy American compliant and not ARRA compliant, and country of origin is listed as multiple. On a job with domestic sourcing requirements in the spec, you need a screw certified to those provisions instead.
3) Why choose a brass machine screw instead of steel or stainless for electrical work?
Brass is the material on the JRMB73, and it is chosen where corrosion resistance and conductivity matter more than raw strength: grounding and bonding connections, damp locations, and fixture hardware where a rusted screw head would be a problem later. Steel and stainless carry more tensile load. If you are hanging weight or torquing hard, brass is the wrong pick.
4) How many Metallics JRMB73 screws come in a jar?
They ship 100 to a jar, and the jar is the minimum order quantity. If you need a different count or a different size in the same round head slotted brass family, Metallics offers other sizes and quantities by request.
5) How much clearance does the round head on this 10-32 brass screw take up?
The round head measures 0.334 to 0.359 inches across and stands 0.123 to 0.137 inches proud of the surface, per ASME B18.6.3. That domed profile sits on top of the work rather than sinking in, so if you need the head flush you want a flat head countersunk screw instead, not this one.
6) What size flat blade screwdriver fits the slot on the JRMB73?
The slot runs 0.05 to 0.06 inches wide and 0.065 to 0.087 inches deep, so a cabinet-tip or keystone flat blade in that thickness range seats properly. Brass is soft, so an undersized blade will chew the slot out before the screw is home. Slotted is the only drive on this screw, there is no Phillips or combo option.
7) What trades actually stock the Metallics JRMB series brass machine screws?
They are carried for the electrical, plumbing, heating and air conditioning trades. Typical use is device and fixture mounting, panel and enclosure hardware, and bonding points where a brass fastener is preferred. MRO and facilities crews keep a jar on the truck for the same reason.
