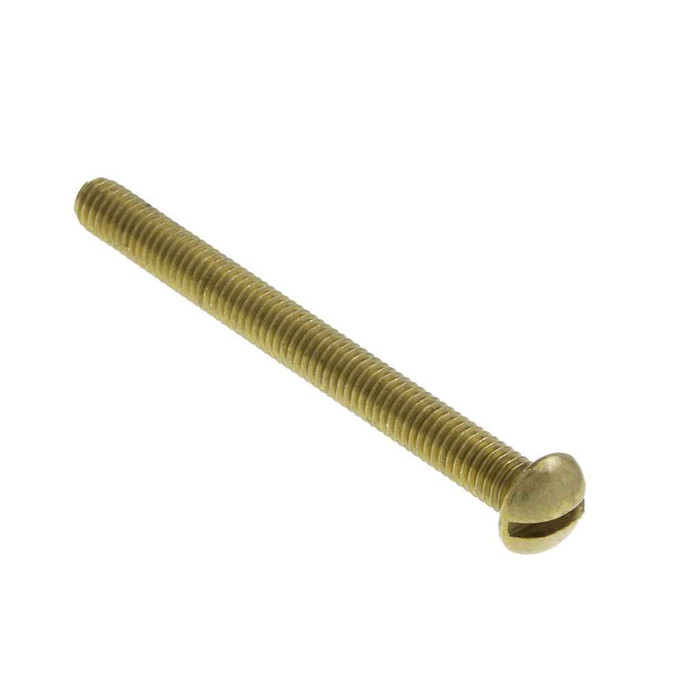

Metallics JRMB98 10-32 x 1 in. Round Head Slotted Machine Screws - Brass - 100qty

Metallics JRMB98 10-32 x 1 in. Round Head Slotted Machine Screws - Brass - Each

(No reviews yet) Write a Review

Model: JRMB98
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1 in. Round Head Slotted Machine Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Tensile strength values for stainless screws are offered as approximations only; there is no single standard for the performance requirements of stainless machine screws.

  • Features

    • 10-32 Diameter, 1" Length
    • Round head with slotted Drive
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.123 - 0.137 in.
Fastener Head Type:
Round
Fastener Head Width:
0.334 - 0.359 in.
Fastener Length:
1
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Round_Head_Machine_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.91 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.082 - 0.108
Slot Depth:
0.065 - 0.087
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
JRMB
Product Details:
Machine Screw
Product Material:
Brass

Metallics JRMB98 – Frequently Asked Questions

1) Will a round head slotted screw sit flush, or does the head stand proud?
It stands proud. The JRMB98 has a round (domed) head, not a flat or oval countersunk head, so it seats on top of the surface rather than sinking into a chamfer. Head height is 0.123 to 0.137 in. and head width 0.334 to 0.359 in. If you need the head flush with a cover plate or a finish surface, specify a flat head instead.
2) Do these machine screws meet Buy American requirements for a federally funded job?
The JRMB98 is flagged ARRA compliant and Buy American compliant in the manufacturer's data, which is what a public-agency or institutional submittal normally asks for on fasteners. Country of origin is listed as multiple, so if your specification requires a single named origin on the certification, state that when you order.
3) Why pick a brass machine screw over a plated steel one?
Brass is the material here, and the reason to specify it is corrosion resistance and electrical conductivity. Brass is standard for bonding and grounding connections and for damp-location work where a zinc-plated steel screw will eventually rust. It is also a softer metal than steel, so it will strip sooner if you drive it with an impact driver. Hand-drive it.
4) How do these screws ship, and is there a minimum quantity?
The JRMB98 is sold in a jar of 100 count, with 100 as the order minimum. The jar weighs 0.91 lbs. Other sizes and quantities are available by request.
5) Are these dimensionally standard screws, or a proprietary head?
Standard. The head and drive are made to ASME B18.6.3, the dimensional standard for inch-series slotted and recessed head machine screws, and the thread to ANSI/ASME B1.1. That means the JRMB98 interchanges with any other spec-conforming 10-32 x 1 in. round head slotted screw on a drawing or bill of materials.
6) Can I rely on a published tensile strength for these?
No tensile figure should be read off this item. Metallics notes that tensile values for stainless machine screws are approximations only because there is no single performance standard for stainless machine screws, and the JRMB98 is brass, a softer material still. Treat it as a fastener specified by material and dimension, not by strength grade. For a load-bearing connection, use a graded steel fastener.
