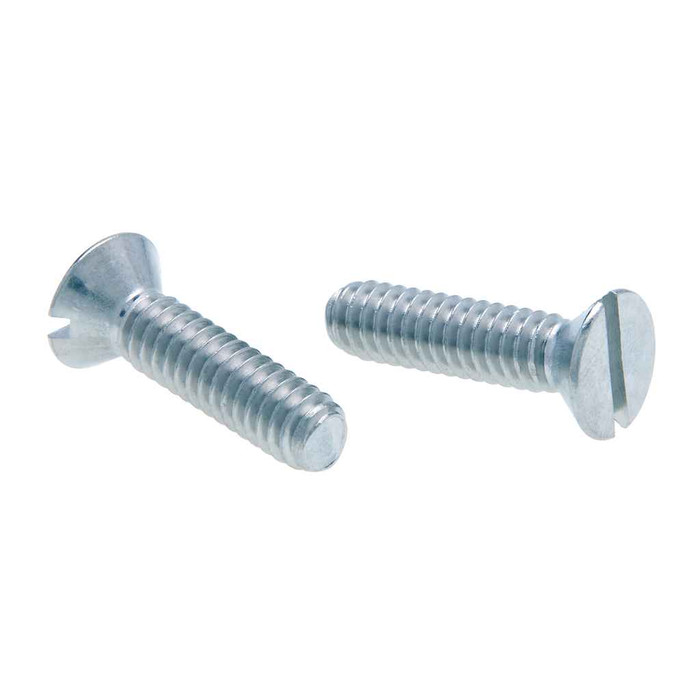

Metallics JFM69 10-32 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM69 10-32 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM69
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$0.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Steel Zinc Material
    • Flat head with slotted Drive
    • 10-32 Diameter, 1-1/4" Length
    • Zinc yellow screws are popular in electronics applications.

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.96 lbs
Product Width:
3 in
Slot Depth:
0.034 - 0.053
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM69 – Frequently Asked Questions

1) Will a Metallics JFM69 10-32 machine screw thread into a standard electrical box or device ring?
Yes. The JFM69 is a 10-32 screw with 32 threads per inch, made to the ANSI/ASME B1.1 thread standard, which is the thread used for device mounting and grounding holes in standard steel boxes, mud rings and plaster rings. At 1-1/4 inch long it gives extra reach for deep rings or where spacers stack up behind the device.
2) Are these screws Buy American or ARRA compliant for a government or public works job?
No. The JFM69 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your contract carries a domestic sourcing clause, these will not satisfy it.
3) How many 10-32 x 1-1/4 screws come in a jar of Metallics JFM69?
They ship in a jar of 100, and 100 is the order minimum, so the jar is the buying unit rather than a loose count. The jar weighs 0.96 lbs.
4) Is a slotted drive the right choice, or should I be buying Phillips for this work?
Slotted is what the JFM69 uses, with a slot 0.05 to 0.06 inch wide and 0.034 to 0.053 inch deep. That suits electrical work where techs drive by hand with a flat blade on an insulated screwdriver and want to feel the seat. If you are running devices with a drill or impact driver, a Phillips or combination head holds the bit far better; slotted cams out of the blade under power.
5) Can I use these zinc plated machine screws outdoors or in a wet location?
Zinc plated steel is a dry to mildly damp duty finish. The JFM69 is steel with a zinc finish, which gives light corrosion protection indoors but will rust in exterior, washdown or coastal exposure. For wet locations, step up to a stainless machine screw in the same 10-32 x 1-1/4 size.
6) Do Metallics flat head machine screws meet a dimensional spec I can put on a submittal?
Yes. Head and slot geometry conform to ASME B18.6.3-1998 and the threads to ANSI/ASME B1.1 in the UNF series. That pairing is what lets you call out a dimensionally interchangeable 10-32 flat head slotted screw from any conforming supplier.
7) What trades actually use a 10-32 x 1-1/4 flat head slotted screw?
Metallics lists the field application as the electrical, plumbing, heating and air conditioning industries. In practice that means mounting devices and covers in boxes, fastening straps and clips, and securing panels and sheet metal on mechanical equipment. The yellow zinc version of these is also common in electronics work.
8) I need a different length or a bigger quantity of this Metallics machine screw. Is that possible?
Other sizes and quantities in the FM and FMP machine screw series are available by request. The JFM69 itself is fixed at 10-32 x 1-1/4 inch in a 100 piece jar, so a shorter or longer screw is a different part number in the same family.
