Metallics JFM48 10-32 x 3/4 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.20
$0.20

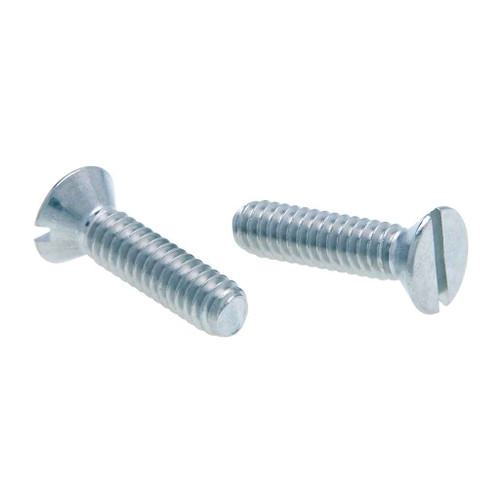

Metallics JFM48 10-32 x 3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM48 10-32 x 3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM48
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.20
$0.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 3/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Flat head with slotted Drive
    • Steel Zinc Material
    • 10-32 Diameter, 3/4" Length

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.73 lbs
Product Width:
3 in
Slot Depth:
0.034 - 0.053
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM48 – Frequently Asked Questions

1) Do Metallics JFM48 screws meet Buy American or ARRA requirements for a government job?
No. The JFM48 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded or domestic preference project these will not pass, so you need a domestically sourced fastener.
2) Is 10-32 a coarse or fine thread, and can I mix these with 10-24 screws?
10-32 is the fine pitch, UNF, at 32 threads per inch. 10-24 is the coarse version of the same No. 10 diameter and the two do not interchange, even though the screws look nearly identical in a jar. If the tapped hole or nut you are mating to is 10-24, these will cross thread and bind, so check the existing hardware before mixing them on a job.
3) How many screws come in a jar of Metallics JFM48, and can I buy fewer?
These ship 100 to a jar, and 100 is the order minimum. If you need a different size or a different count, Metallics offers other lengths and quantities in the FM and FMP series by request.
4) What driver do I need for these screws, and will a screw gun strip them?
Slotted drive only, with a slot 0.05 to 0.06 in. wide and 0.034 to 0.053 in. deep. That calls for a flat blade of matching thickness, hand driven or on low torque. A slot that shallow cams out easily under an impact or a high speed gun, so if you are running hundreds of screws with a driver, a Phillips or combo head version is the better pick.
5) Can I use zinc plated machine screws outdoors or in a wet location?
Zinc plated steel is the finish here, which is built for dry indoor and protected work. Zinc gives moderate corrosion resistance and will eventually rust in standing moisture, salt air, or exterior exposure. For wet, washdown, or coastal installs, go to a stainless machine screw in the same 10-32 x 3/4 in. size.
6) What dimensional standard do these flat head machine screws conform to?
Head and thread geometry follow ASME B18.6.3-1998 for dimensions and ANSI/ASME B1.1 for the thread, with a UNF thread form. That means the 10-32 x 3/4 in. screw interchanges with any other fastener made to the same standard, so a submittal calling out B18.6.3 flat head slotted machine screws is satisfied.
7) How much does a jar of these 10-32 machine screws weigh for shipping or stocking a van?
A jar of 100 weighs 0.73 lbs and the container measures 3 x 3 x 2.15 in., so it drops into a parts bin or a van drawer without taking a shelf.
