Metallics JFM94 10-32 x 3 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.46
$0.46

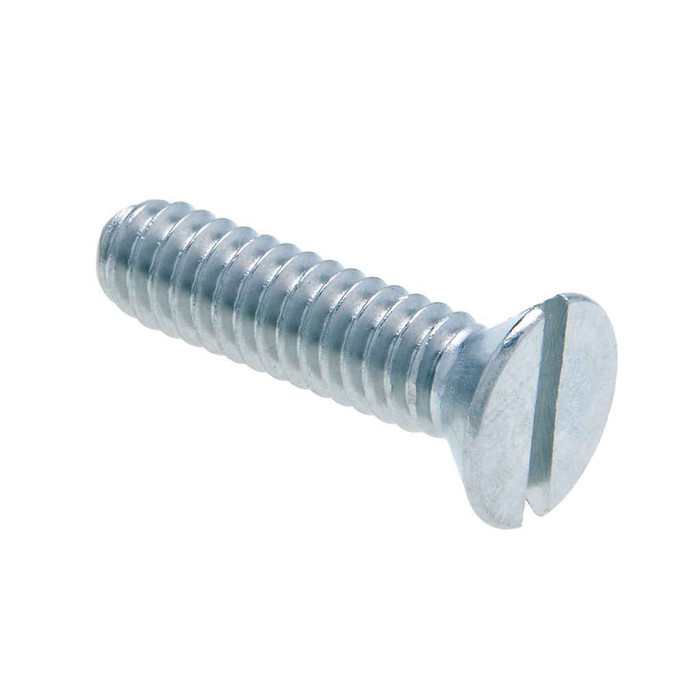

Metallics JFM94 10-32 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM94 10-32 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM94
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.46
$0.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10-32 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Zinc yellow screws are popular in electronics applications.
    • Steel Zinc Material
    • Flat head with slotted Drive
    • 10-32 Diameter, 3" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.098 - 0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.333 - 0.362 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
2.01 lbs
Product Width:
3.5 in
Slot Depth:
0.034 - 0.053
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Tensile Strength:
1200 lb minimum
Thread Per Inch:
32
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNF
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM94 – Frequently Asked Questions

1) Will a Metallics JFM94 10-32 machine screw thread into a standard device box or fixture strap?
The JFM94 is a 10-32 screw with 32 threads per inch, cut to ANSI/ASME B1.1 in the UNF series. That is the thread used throughout electrical device boxes, mounting straps and fixture hardware, so it mates with any tapped 10-32 hole. At 3 inches long it is meant for deep builds, not flush device mounting.
2) Do Metallics JFM94 screws meet Buy American or ARRA requirements for a public job?
No. The JFM94 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic-sourcing clause, this part will not satisfy it.
3) Does the JFM94 flat head sit flush, or does it need a countersunk hole?
Flat head means it only sits flush in a countersunk or pre-dimpled hole. Against a flat unprepared plate the head stands proud by 0.098 to 0.116 inch. If the plate or bracket is not countersunk, a pan or round head is the better choice for that job.
4) What driver fits the Metallics JFM94, and can it be run with a drill?
Slotted drive only, no Phillips or square recess. The slot is 0.05 to 0.06 inch wide and 0.034 to 0.053 inch deep, so a thin flat cabinet tip seats properly and a thick carpenter's blade will cam out. Slotted drives have no self-centering, so these are hand-driven work rather than impact-driver work.
5) How many 10-32 x 3 in. Metallics screws come in a jar?
They are packed in a jar of 100, and 100 is the order minimum. If you only need a handful for one opening, you are still buying the full jar, which is normally the sensible way to stock a common 10-32 length on a truck anyway.
6) Are these zinc plated screws OK for damp or outdoor locations?
The JFM94 is carbon steel with a zinc finish, which is a plating for indoor and protected-location corrosion resistance. It is not stainless. For wet, coastal or chemically exposed work, specify a stainless machine screw in the same 10-32 x 3 size instead.
7) What dimensional standard do these flat head machine screws conform to?
Head geometry follows ASME B18.6.3-1998 and the threads follow ANSI/ASME B1.1 in UNF. If a submittal calls for a B18.6.3 flat head slotted machine screw in 10-32, this part answers that spec line.
8) Is a 10-32 x 3 in. machine screw only for electrical work?
Metallics lists the field application as the electrical, plumbing, heating and air conditioning trades. A machine screw into a tapped hole behaves the same regardless of trade, so the same jar covers fixture straps, equipment panels and mechanical covers alike.
