Metallics JTEKD18V 10 x 1-1/4 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.29
$0.29

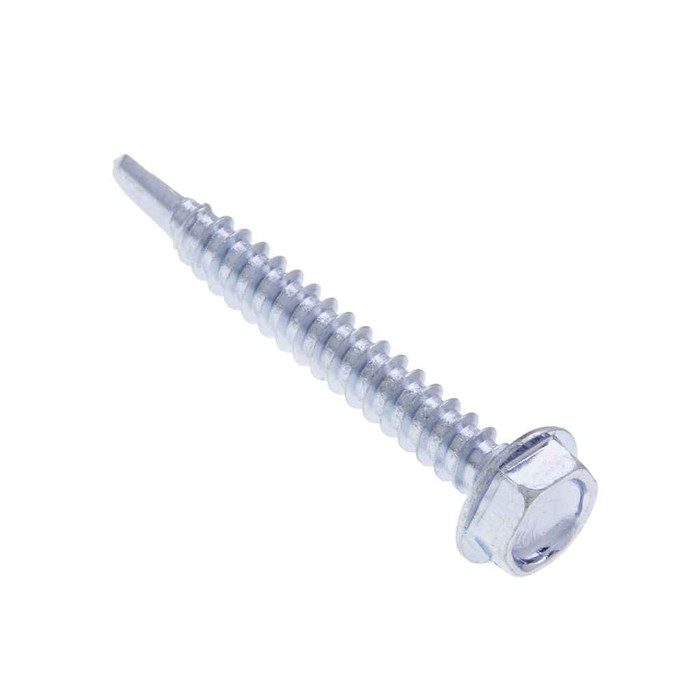

Metallics JTEKD18V 10 x 1-1/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

Metallics JTEKD18V 10 x 1-1/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD18V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.29
$0.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1-1/4 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

  • Features

    • 5/16 Indented Hex Head with Hex Drive
    • #2 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • Steel Zinc Material
    • 10 Diameter, 1-1/4" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Color:
Silver
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
1/1/04
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.110 IN
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
4.45 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD18V – Frequently Asked Questions

1) What metal thickness can the Metallics JTEKD18V self-drilling screw drill through?
The #2 drill point on the JTEKD18V is rated for panel thickness of 0.035 to 0.110 in. That covers typical light-gauge steel studs, strut, and sheet metal enclosures. Thicker structural steel is outside its range, so pick a heavier drill point for that.
2) Do I need to pre-drill or tap for the Metallics JTEKD18V screw?
No. It is a Type BSD self-drilling and tapping screw, so the drill point cuts the hole and the threads form their own mating thread in one pass. No pilot hole, no tapping.
3) Is the Metallics JTEKD18V screw Buy American compliant for a government or public-works job?
It is flagged both ARRA compliant and Buy American compliant, with country of origin listed as multiple. For a federally funded spec, cite those compliance flags along with the applicable standards it is built to: ASME B18.6.3-2010 dimensionally and SAE J78-2013 for threads.
4) What driver or socket fits the JTEKD18V hex head screw?
It takes a 5/16 in. hex driver. The indented hex head measures 0.305 to 0.312 in. across the flats and 0.34 in. across corners, with a head height of 0.105 to 0.12 in. A standard 5/16 magnetic nut setter in an impact or screwgun drives it.
5) Does the JTEKD18V come with a built-in washer, or do I buy washers separately?
The washer is integral to the head, so nothing extra to order. Washer outside diameter runs 0.384 to 0.414 in. with a thickness of 0.019 to 0.031 in., which spreads the clamp load on sheet metal and thin panels and resists pull-through better than a plain hex head.
6) How many screws come in a jar of Metallics JTEKD18V, and is there an order minimum?
They ship in a jar at a 500-count order minimum, so a single buy gets you 500 screws. Jar weight is listed at 4.45 lbs.
7) Will the JTEKD18V zinc-plated screw hold up outdoors or in a damp location?
The JTEKD18V is carbon steel with a zinc finish, which is a dry-interior or protected-location fastener. For exterior, wet, or corrosive runs, use a stainless self-drilling screw instead; zinc plating will eventually corrode in those conditions.
8) What thread does the #10 Metallics JTEKD18V screw have, and will it strip out in light-gauge steel?
It is a #10 with 16 threads per inch, UNC form. Torsional strength is 61 lb-in minimum and the screw is heat treated to Rockwell C32-40, so the point stays hard enough to cut while the body resists snapping. Set your impact or screwgun clutch rather than running it to stall and you will not shear heads or strip thin panel.
9) Is a 1-1/4 in. self-drilling screw long enough for my application?
The JTEKD18V is a #10 x 1-1/4 in. screw. Subtract the panel you are drilling into (0.035 to 0.110 in. of its rated range) and you still have over an inch of grip length, so it handles stacking a bracket, clip, or strap onto light-gauge steel. For thicker assemblies or deeper standoffs, step up to a longer screw in the same series.
10) What steel is the Metallics JTEKD18V made from?
Carbon steel per AISI 1016-1024, case hardened to Rockwell C32-40 and zinc plated. That is the standard material range for self-drilling tapping screws and it is what lets the point cut steel without rolling over.
