Metallics JTEKD5M 10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 1000qty

Metallics JTEKD5M 10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD5M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.21
$0.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 1000qty

  • Features

    • #2 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • 5/16 Indented Hex Head with Hex Drive
    • Steel Zinc Material
    • 10 Diameter, 1/2" Length

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

Manufacturer Resources

Product Specs

Minimum Purchase:
1000 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Color:
Silver
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2-Jan
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
1000
Order Minimum Uom Imperial:
TH
Pack Type:
Jar
Panel Thickness:
0.035 - 0.110 IN
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
5 lbs
Product Width:
3.5 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD5M – Frequently Asked Questions

1) Do I need to pre-drill for the Metallics JTEKD5M screws?
No pilot hole. It's a Type BSD self-drilling and tapping screw: the #2 drill point cuts the hole and the threads tap it in one pass. Drill time runs about 2.5 seconds through a 1 mm plate.

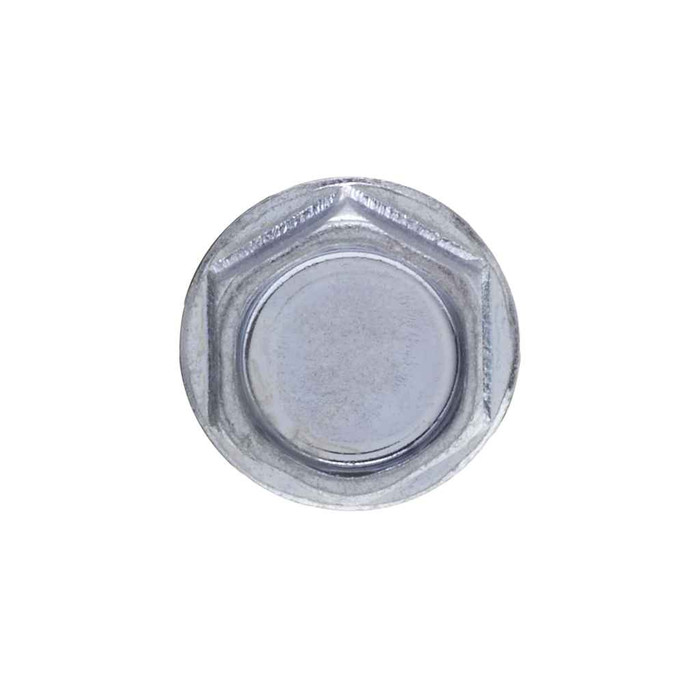

2) Is the washer on the JTEKD5M bonded to the head or a loose washer?
It's an integral washer under the indented hex head, 0.384 to 0.414 inch outside diameter and 0.019 to 0.031 inch thick. The wider bearing surface spreads load on thin sheet and helps seat flat on slotted strut or enclosure panels, so you don't need to add a separate washer.
3) Will a #10 self-drilling screw hold up to impact driving without snapping the head off?
Minimum torsional strength on this #10 screw is 61 lb-in, with case hardness at Rockwell C32-40 over an AISI 1016-1024 steel core. Threads are made to SAE J78-2013 and head dimensions to ASME B18.6.3-2010. Drive it to seat, not past it, since over-torquing a #10 past 61 lb-in is what shears heads.
4) What is the thread pitch on the Metallics JTEKD5M, and will it thread into an existing 10-16 hole?
16 threads per inch, UNC thread form, in a #10 diameter by 1/2 inch length. That makes it a standard 10-16 self-drill, so it will re-thread an existing hole tapped by another 10-16 self-drilling screw. It will not match a 10-24 or 10-32 machine screw hole.
5) Are these Metallics screws suitable for outdoor or damp locations?
The JTEKD5M is zinc plated carbon steel. Zinc plating is fine for dry interior electrical work, enclosures and conduit support indoors, but it is not a marine or sustained-wet finish. For exterior or washdown areas, step up to a stainless self-drilling screw.
6) Do the Metallics JTEKD5M screws meet Buy American requirements for a government job?
Metallics lists the JTEKD5M as both ARRA compliant and Buy American compliant. Country of origin is recorded as multiple, so if your contract requires a single documented origin per lot, ask for lot documentation with the order.
7) Is 1/2 inch long enough for a #10 self-drilling screw, or do I need a longer one?
At 1/2 inch overall, the JTEKD5M suits thin stacked sheet metal: panel capacity tops out at 0.110 inch, so with the drill point and washer consuming part of the length it is sized for single or light double layers. If you are fastening through a thicker assembly or a spacer, move to a longer #10 self-drill.
8) How are these self-drilling screws packaged and what is the minimum order?
They ship in a jar of 1,000 pieces, which is the order minimum. Jar weight is listed at 5 lbs. That is a stocking quantity for a van or shop bin rather than a small job pack.
