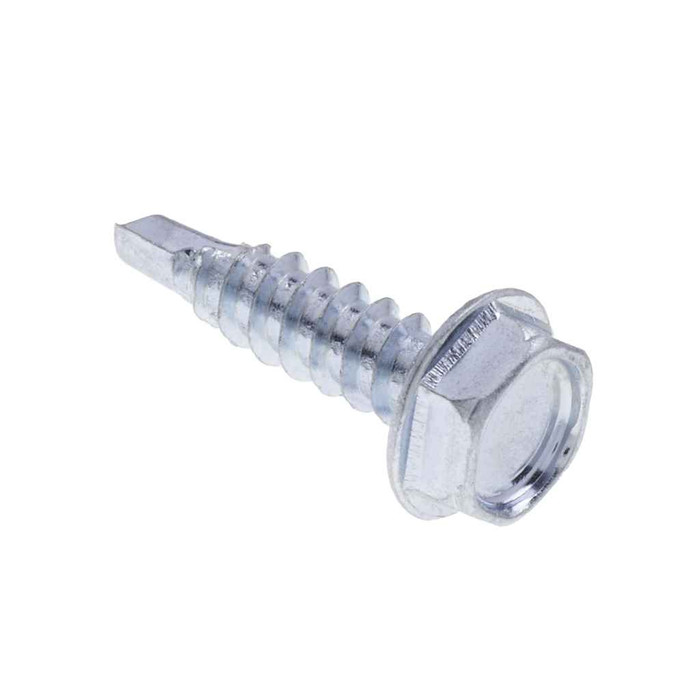

Metallics JTEKD5V 10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

Metallics JTEKD5V 10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTEKD5V
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.23
$0.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 1/2 in. 5/16 Indented Hex Head Self-Drilling & Tapping Screws with Washer - #2 Drill Point - Steel Zinc - 500qty

  • Additional Notes

    • Other sizes and quantities available by request. | SAE J78 does not include Specifications for #7 diameter drill screws. | This table is only a guide and does not constitute a warranty of any type.

  • Features

    • #2 Drill Point
    • Minimum torques are the same for stainless and steel self-drill screws. Drill time is 2.5 seconds for a 1 mm thick plate.
    • Steel Zinc Material
    • 10 Diameter, 1/2" Length
    • 5/16 Indented Hex Head with Hex Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
500 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#2
Drive Type:
Hex
Fastener Head Color:
Silver
Fastener Head Height:
0.105 - 0.12 in.
Fastener Head Type:
Indented Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2-Jan
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Head_Self-Drill_TS_Indent_Hex_Washer.pdf
Order Minimum Imperial:
500
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Panel Thickness:
0.035 - 0.110 IN
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
2.5 lbs
Product Width:
3 in
Screw Point Type:
Drill Point
Slot Depth:
0.057 - 0.072
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
16
Thread Standard:
SAE J78 - 2013
Thread Type:
UNC
Torsional Strength:
61 lb-in minimum
Washer Od:
0.384 - 0.414 in.
Washer Thickness:
0.019 - 0.031 IN
Width Across Corners:
0.34
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type BSD Self-Drilling & Tapping Screw
Type2:
Type BSD Self-Drilling & Tapping Screw
Series:
JTEKD
Product Finish:
Zinc
Product Details:
Type BSD Self-Drilling & Tapping Screw
Product Material:
Steel Zinc

Metallics JTEKD5V – Frequently Asked Questions

1) Do I need to pre-drill a pilot hole for these hex head tapping screws?
No. It's a Type BSD self-drilling and tapping screw with a #2 drill point, so it cuts its own hole and forms its own thread in one pass. The listed drill time is 2.5 seconds through a 1 mm thick plate.
2) Is a #10 x 1/2 in. self-drilling screw long enough for my application?
At 1/2 in. overall length with a #10 diameter and 16 threads per inch UNC, the JTEKD5V is a short fastener meant for attaching directly to sheet metal or strut, not for stacking thick material. The drill point consumes part of that length, so plan on thin single-ply or two thin layers within the 0.035 to 0.110 in. panel range. For thicker buildups, step up to a longer length in the same series.
3) What driver or socket do I need for the Metallics JTEKD5V screw?
A 5/16 in. hex driver. The head is an indented hex washer head with a hex drive, measuring 0.305 to 0.312 in. across the flats and 0.34 in. across the corners, so a standard 5/16 magnetic nut setter in an impact or screw gun drives it.
4) Will these zinc plated screws hold up outdoors or in a wet location?
The JTEKD5V is carbon steel with a zinc finish, which is a dry-location and interior-grade coating. It's fine for metal stud framing, interior enclosures and strut runs. For exterior, roof or washdown work, specify a stainless self-drill instead.
5) How many Metallics JTEKD5V screws come in a package?
They ship 500 per jar, with 500 count as the order minimum. Package weight is listed at 2.5 lbs.
6) Do these Metallics self-drilling screws meet Buy American requirements for a government job?
The JTEKD5V is flagged as both ARRA compliant and Buy American compliant in the manufacturer data. Country of origin is listed as multiple, so if your spec requires a single named origin on the submittal, confirm the origin on the lot you receive.
7) What standards do these #10 self-drilling tapping screws conform to?
Dimensions follow ASME B18.6.3-2010 and the thread follows SAE J78 - 2013, UNC at 16 threads per inch. Head height is 0.105 to 0.12 in. Those are the two callouts an engineer or inspector usually wants on a fastener submittal.
8) Are these screws hard enough to drill steel without snapping the point?
Case hardness is Rockwell C32-40 with a minimum torsional strength of 61 lb-in, from AISI 1016-1024 steel. That is the spec band for a drill screw that cuts its own hole. The practical caution is gun speed and torque: back off the clutch on an impact so you stop at seating rather than shearing the head.
9) Can I substitute a #8 or #7 drill screw for this #10 if that's what I have on the truck?
Not interchangeably. The JTEKD5V is a #10 diameter with a 5/16 hex head, so a #8 leaves a looser fit in a hole already drilled by a #10 and uses a 1/4 in. driver instead. Worth knowing on the #7 size: SAE J78 does not include specifications for #7 diameter drill screws, so there is no equivalent standard thread callout at that size.
