Metallics JFW92 10 x 23/4 in. ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.41
$0.41

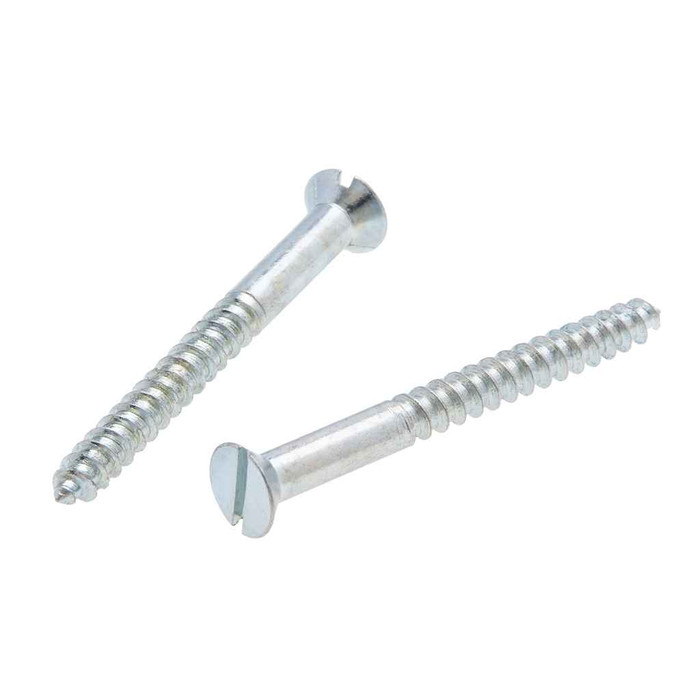

Metallics JFW92 10 x 23/4 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

Metallics JFW92 10 x 23/4 in. Flat Head Slotted Wood Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFW92
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.41
$0.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 23/4 in. Flat Head Slotted Wood Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

  • Features

    • Screws of nominal lengths too short to accomodate the minimum thread length shall have threads extending as close to the underside of the head as practicable.
    • 10 Diameter, 23/4" Length
    • Steel Zinc Material
    • Flat Head with Slotted Drive

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
C
Buy American Compliant:
C
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
2/3/04
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
CT
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
4.57 in
Product Length:
3 in
Product Weight:
1.8 lbs
Product Width:
3 in
Screw Point Type:
Tapered Point
Slot Depth:
0.034 - 0.053
Slot Width:
0.05 - 0.06
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFW
Product Finish:
Zinc
Product Details:
Wood Screw
Product Material:
Steel Zinc

Metallics JFW92 – Frequently Asked Questions

1) How many screws come in a pack of the Metallics JFW92 wood screws?
The JFW92 ships 100 screws to a jar, and 100 count is the order minimum. If you need a different quantity or size in the JFW wood screw line, other sizes and quantities are available by request.
2) Will a #10 x 2-3/4 in. flat head wood screw sit flush in a countersunk hole?
Yes, that is what the flat head is for. Head height is 0.116 in. and head width runs 0.34 to 0.385 in., so a standard countersink for a #10 flat head takes it flush with the surface. The head conforms to ASME B18.6.1 dimensions, so it matches any countersink cut for that standard.
3) Do these Metallics wood screws take a Phillips bit or a flat blade?
Flat blade only. The JFW92 has a slotted drive, with slot width 0.05 to 0.06 in. and slot depth 0.034 to 0.053 in., so you want a cabinet-tip screwdriver or a slotted power bit ground to about that thickness. A Phillips or square bit won't engage. If your crews are driving these with impact drivers, slotted is slow going and prone to cam-out, so spec a Phillips-drive wood screw instead for volume work.
4) Are zinc plated steel wood screws OK outdoors or in a damp location?
Zinc plated steel is a mild corrosion coating meant for dry interior work, electrical rough-in, blocking, and trim. The JFW92 is steel with a zinc finish, so keep it inside. For exterior framing, treated lumber, or wet locations use stainless or a coated deck screw instead, since zinc over plain steel will bleed rust and treated lumber chemistry attacks it.
5) Do these Metallics screws qualify for a Buy American or ARRA funded job?
The JFW92 is flagged compliant for both Buy American and ARRA. Note the country of origin is listed as China, so if your contract requires domestic melt and manufacture rather than the compliance flag, confirm which test your spec writer is applying before you submit it.
6) Do these wood screws meet a recognized dimensional standard for a submittal?
Yes. Head, slot, and thread dimensions on the JFW92 follow ASME B18.6.1, with the thread specifically to ASME B18.6.1-1997. That's the standard for wood screws, so an inspector or spec writer asking for a B18.6.1 flat head slotted wood screw is asking for this.
7) How much does a 100 count jar of the Metallics JFW92 screws weigh?
About 1.8 lbs for the jar of 100. Useful if you're building out a van stock list or working to a shipping weight on a bulk fastener order.
