Metallics JFWPB34 10 x 3 in. F...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$578.57
Metallics JFWPB34 10 x 3 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB34 10 x 3 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB34
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$578.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

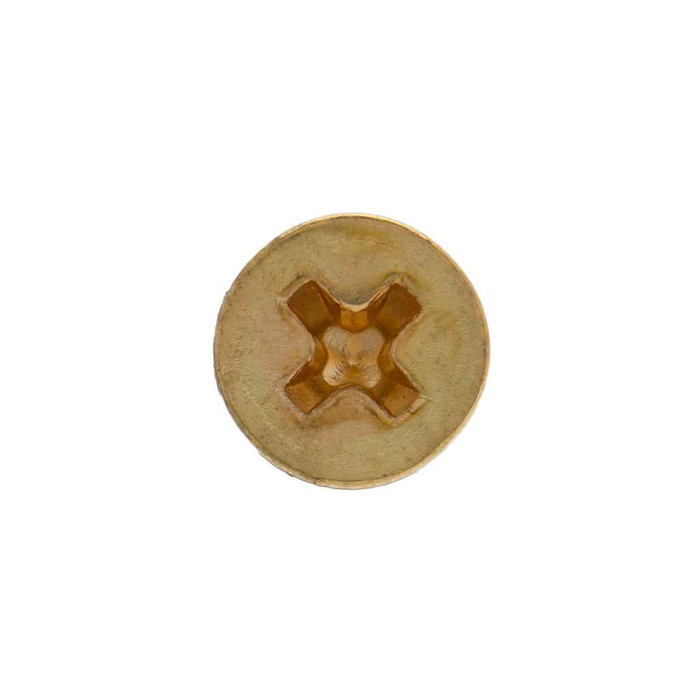

10 x 3 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Features

    • Flat Head with Phillips Drive
    • Brass Material
    • 10 Diameter, 3" Length

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Wood_Screw_Brass.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.123 - 0.146
Phillips Recess Diameter:
0.245 - 0.258
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
1.821 lbs
Product Width:
3.5 in
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB34 – Frequently Asked Questions

1) How many screws come in a jar of Metallics JFWPB34 brass wood screws?
The JFWPB34 ships in a jar of 100 screws, and the jar is the order minimum, so you buy in multiples of 100 rather than by the single piece. Jar weight is 1.821 lbs.
2) How far does the thread run on the Metallics JFWPB34 3 inch wood screw?
It is a partially threaded screw. Metallics specifies thread length as two thirds of the overall length once the screw exceeds 1 inch, so on this 3 inch screw you get roughly 2 inches of thread with a plain shank under the head. That shank is what pulls the two pieces tight instead of jacking them apart, so bore your clearance hole in the top member to match.
3) Can I use Metallics JFWPB34 brass screws on a Buy American or ARRA funded job?
No. These brass wood screws are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. If your contract carries domestic sourcing requirements, you need a different fastener line.
4) What size Phillips bit drives a #10 x 3 in. brass flat head wood screw?
Use a #3 Phillips driver. The recess is 0.245 to 0.258 in. diameter and 0.123 to 0.146 in. deep, so a #2 bit will sit shallow and cam out, chewing the soft brass recess.
5) Will a brass wood screw hold in exterior or damp work, or should I use steel?
Brass is the right call where you need corrosion resistance or a non-magnetic, non-sparking fastener, and where the screw head will be seen. It is softer than steel, so it strips and snaps more readily than a hardened screw. For structural pull-out loads in framing, a steel or stainless wood screw is the better choice; use the brass for trim, hardware mounting, boat and marine joinery, and finish work.
6) Do I need to pre-drill for a #10 x 3 in. brass wood screw?
Yes, pre-drill. At 13 threads per inch in brass, driving dry into hardwood is how you twist the head off. Bore a clearance hole through the top piece for the unthreaded shank and a smaller pilot in the receiving member, and run it in slowly on a clutch rather than full trigger.
7) Does the Metallics JFWPB34 wood screw meet a recognized dimensional standard for spec work?
It is built to ASME B18.6.1, with threads to ASME B18.6.1-1997. That is the inch wood screw standard, so head, recess and thread geometry are interchangeable with any other screw called out to the same spec on a drawing or submittal.
8) Are these brass wood screws meant for electrical work or for carpentry?
Both. Metallics catalogs the JFWPB series for the electrical, plumbing, heating and air conditioning trades, where brass is wanted for non-magnetic or corrosion-resistant mounting, but it is a conventional inch-series wood screw and works the same in millwork and hardware mounting.
