Metallics JFWPB28 10 x 3/4 in....
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$192.86

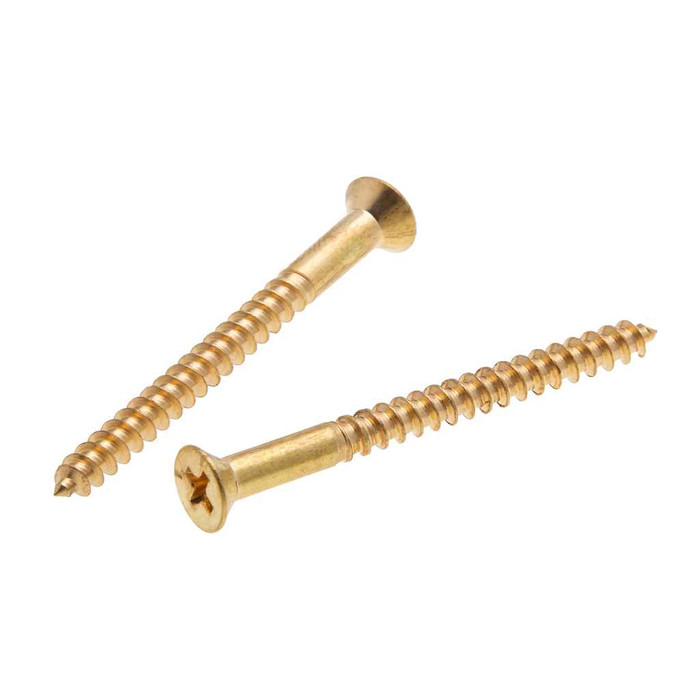

Metallics JFWPB28 10 x 3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

Metallics JFWPB28 10 x 3/4 in. Flat Head Phillips Wood Screws - Brass - Each

(No reviews yet) Write a Review

Model: JFWPB28
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
10 x 3/4 in. Flat Head Phillips Wood Screws - Brass - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Length of Thread: Length = 1 inch then 2/3 thread

  • Features

    • Flat Head with Phillips Drive
    • 10 Diameter, 3/4" Length
    • Brass Material

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.1
Division:
Electrical H1
Drive Type:
Phillips
Driver Size:
#3
Fastener Head Height:
0.116 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.34 - 0.385 in.
Fastener Length:
4-Mar
Field Application:
Electrical, Plumbing, Heating, Air Conditioning Industries
Language Code:
EN
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Depth:
0.123 - 0.146
Phillips Recess Diameter:
0.245 - 0.258
Phillips Recess Width:
0.034
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.53 lbs
Product Width:
3 in
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Thread Standard:
ASME B18.6.1-1997
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Wood Screw
Type2:
Wood Screw
Series:
JFWPB
Product Details:
Wood Screw
Product Material:
Brass

Metallics JFWPB28 – Frequently Asked Questions

1) How many Metallics JFWPB28 brass wood screws come in a pack?
The JFWPB28 ships in a jar of 100 screws, and 100 is the order minimum, so one jar is the smallest quantity you can buy.
2) Will a #10 x 3/4 in. flat head brass screw sit flush in a countersunk hole?
Yes, if the countersink matches the head. The flat head measures 0.34 to 0.385 inch across with a 0.116 inch head height, so an 82 degree countersink sized to that diameter brings the head level with the surface. In hardwood, drill a pilot plus countersink rather than driving brass dry, since brass heads shear easily.
3) Can these brass wood screws be used on a federally funded job?
No. The JFWPB28 screws are not Buy American compliant and are not ARRA compliant, with multiple countries of origin. If your contract carries a domestic sourcing clause, these will not pass submittal.
4) What size Phillips driver do I need for the Metallics JFWPB28 wood screws?
Use a #3 Phillips bit. The recess is 0.245 to 0.258 inch in diameter with a 0.123 to 0.146 inch depth, so a #2 bit will sit shallow and cam out, which chews up a brass head fast.
5) Are these Metallics brass wood screws a standard thread, or something proprietary?
Standard. The JFWPB series is made to ASME B18.6.1, the inch wood screw dimensional standard, with 13 threads per inch at the #10 diameter. Any #10 wood screw pilot hole chart or clearance hole in your hardware will take them.
6) How much of the 3/4 in. length is actually threaded?
At 3/4 inch the screw is fully threaded. Metallics threads the JFWPB screws full length up to 1 inch; from 1 inch and longer the thread runs about two thirds of the length. Full thread on a short screw means all of the holding power is in the workpiece, which matters when you are fastening thin trim or a plate into a jamb.
7) Should I use brass screws or plated steel for mounting hardware?
Brass is the choice when the screw is visible and has to match brass trim, plates, or hinges, and where you want corrosion resistance in damp interior locations. It is softer than steel, so it will not take the torque a steel screw will. For structural or high-torque work use a steel wood screw and save the brass for finish-visible fastening.
8) What are brass flat head Phillips wood screws typically used for in the trades?
Metallics lists the JFWPB screws for the electrical, plumbing, heating, and air conditioning trades, where they go into wood for mounting boxes, straps, plates, and cover hardware. The flat head lets them sit flush in a countersunk mounting hole instead of standing proud under a plate or escutcheon.
9) Can I get the Metallics JFWPB brass wood screws in a different length or a larger pack?
Yes. The JFWPB brass flat head Phillips wood screw family runs in other diameters, lengths, and quantities beyond the 10 x 3/4 inch jar of 100, available by request. Give the diameter, length, and count you need when you ask.
