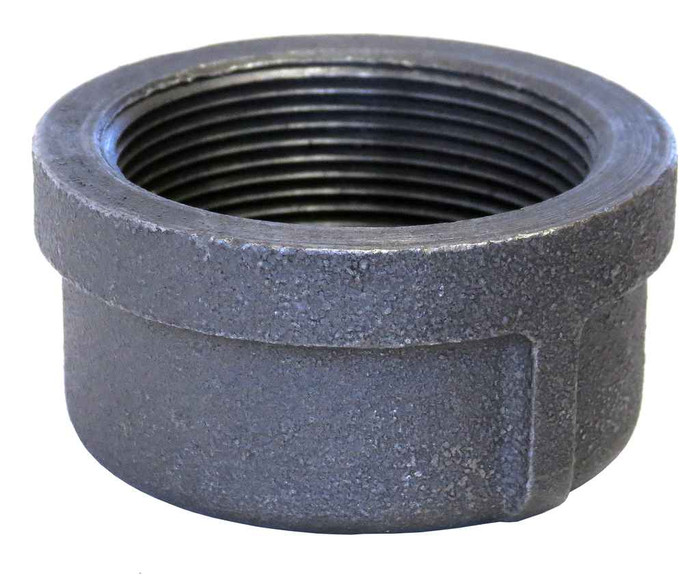

11/2 GALV MI CAP
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 0
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Caps
- Product Type:
- Cap
- Product Finish:
- Galvanized
- Product Material:
- Malleable Iron
- Product Weight:
- 0.73 lbs
ASC Engineered Solutions 319900684 – Frequently Asked Questions
1) Will a 1-1/2 inch galvanized malleable iron cap thread onto standard 1-1/2 inch threaded steel pipe?
Yes. The ASC Engineered Solutions 1-1/2 inch galvanized malleable iron cap has a female pipe thread (FPT) end and the threads are cut to ASME B1.20.1, the NPT standard used on schedule 40 threaded steel and galvanized pipe. Screw it onto any male 1-1/2 inch NPT pipe end or nipple with pipe dope or PTFE tape on the male threads.
2) What is the difference between a pipe cap and a plug, and which one do I need?
A cap is female threaded and goes over the outside of a male pipe end or nipple. A plug is male threaded and goes inside a female opening such as a tee branch or a fitting port. This ASC part is a cap with an FPT end, so it is the right part when you have an open male pipe thread sticking out. If you are closing a threaded socket, you want a plug instead.
3) Can I use a galvanized malleable iron cap on a gas line or on water?
The cap is galvanized malleable iron built to ASTM A-197 with a hot dip galvanized coating per ASTM A-153, which is the corrosion protection specified for water, wet sprinkler, and general plumbing service. Galvanized fittings are commonly restricted on natural gas piping by local code, so black malleable iron is the usual choice there. Confirm what your jurisdiction requires for the fluid you are piping.
4) Will this cap match the dimensions called out on my piping drawing?
The cap is manufactured to ASME B16.3, the dimensional standard for threaded malleable iron fittings, so its face-to-end length and hex dimensions follow the standard 1-1/2 inch class figures any spec sheet or drawing references. Pressure class is standard (STD) under that same standard.
