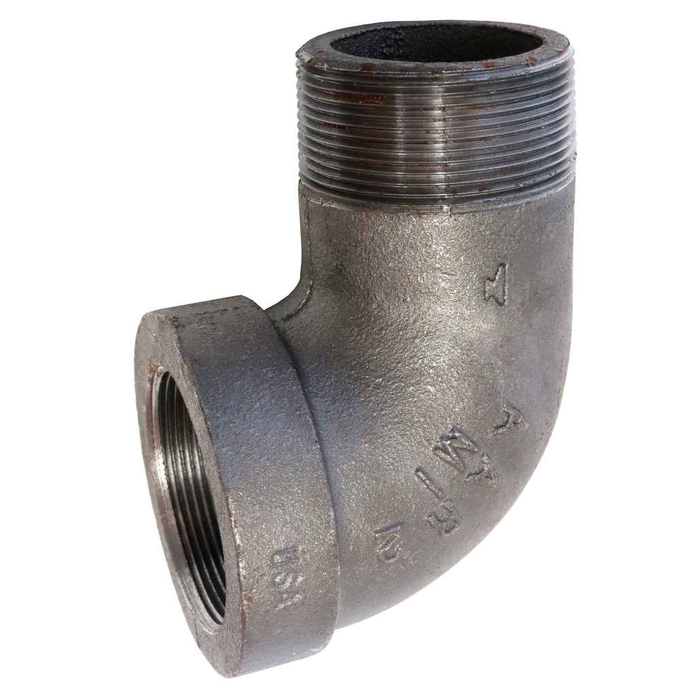

11/2 XH BLK MI 90 STR ELL
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1.5
- Size 2:
- 1.5
- Strength:
- XH
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Elbows
- Product Type:
- 90° Elbow
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 2.2 lbs
ASC Engineered Solutions 310508601 – Frequently Asked Questions
1) Should I order a street elbow or a regular 90 for a tight turn off a valve or tee?
Use the street ell when the turn has to happen right at the outlet. Its male end threads straight into the female port of a valve, tee, or coupling, so you save the close nipple and roughly a fitting's worth of takeout. A standard 90 with two female ends needs a nipple on both sides. The ASC 1-1/2 inch version is FPT on one end, MPT on the other, extra heavy black malleable iron.
2) Do I need thread sealant with this fitting, or does it seal on its own?
The threads are NPT taper per ASME B1.20.1, so they need pipe dope or PTFE tape rated for the service. Taper threads seal on the metal-to-metal wedge plus sealant, not on a gasket. For gas service use a sealant approved for gas; for fire protection follow what the system spec allows. Sealant is not supplied with the elbow.
