Metallics TXV12200VLB 12-24 x ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$511.07

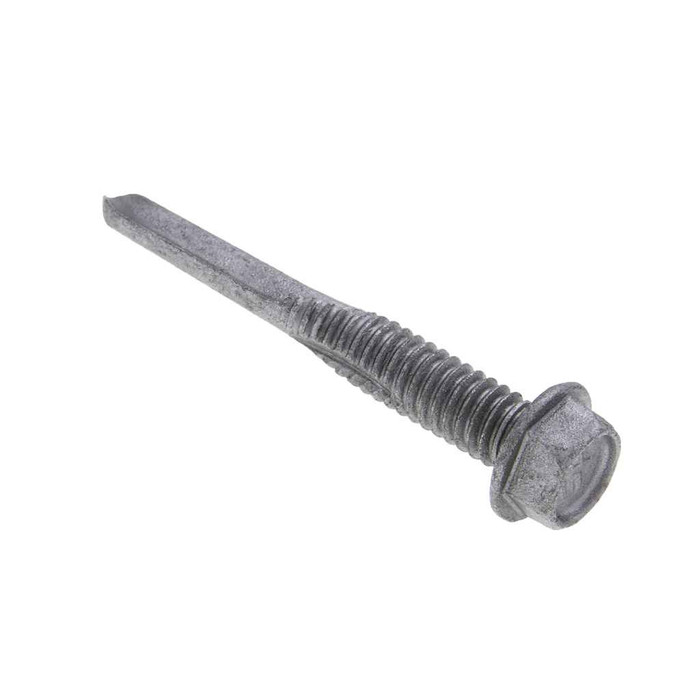

Metallics TXV12200VLB 12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 265qty

Metallics TXV12200VLB 12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXV12200VLB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$511.07
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 265qty

  • Features

    • 12-24 Diameter, 2" Length
    • 5/16 Hex Head with Hex Drive
    • Made in the USA
    • #5 Drill Point
    • All-Weather Coating

  • Additional Notes

    • Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request

Manufacturer Resources

Product Specs

Minimum Purchase:
265 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#5
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
1
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Screws
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Fasteners
Product Subgroup:
Tapping Screws
Product Type:
Self-Drilling Screw
Type2:
Type BSD Heavy Duty Drill Screw
Series:
TXV
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Heavy Duty Drill Screw
Product Material:
All-Weather

Metallics TXV12200VLB – Frequently Asked Questions

1) How thick a steel can the Metallics TXV12200VLB #5 point drill screw go through?
The #5 drill point on the TXV12200VLB is rated for a panel thickness of 0.110 to 0.210 in. of steel, so it drills and taps its own hole through structural steel in that range without a pilot. Thinner gauge deck or stud work does not need a #5 point, and anything heavier than 0.210 in. is past what this point will drill.
2) Will a 12-24 x 2 in. self drilling screw hold in a strut or steel beam for hanging conduit?
That is the application it is built for. The 12-24 thread at 24 threads per inch taps directly into steel from 0.110 to 0.210 in. thick, and the 2 in. length gives you room for a clamp, strap or bracket stacked on top of the steel. Minimum torsional strength is 92 lb-in, so it takes impact driving without snapping the shank.
3) Does this Metallics screw qualify for a Buy American or ARRA funded job?
No. The TXV12200VLB is flagged not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your project has domestic sourcing language in the contract, this part will not clear it.
4) What size driver do I need for the Metallics TXV12200VLB hex head screw?
A 5/16 hex driver. The head is a hex head with hex drive, measuring 0.305 to 0.312 in. across the flats and 0.34 in. across the corners, with a head height of 0.139 to 0.155 in. A standard 5/16 magnetic nut setter in an impact or screwgun drives it.
5) Is the TXV12200VLB drill screw OK for outdoor or exposed steel-to-steel work?
Yes. The TXV12200VLB carries a zinc plus all-weather coating rather than plain zinc, which is why it is specified for exposed steel-to-steel fastening. It also comes with a sealing washer, 0.398 to 0.432 in. outside diameter and 0.022 to 0.039 in. thick, that seats under the hex head at the joint.
6) What standards does the Metallics TXV self drilling screw meet?
The TXV12200VLB is built to ASME B18.6.3-2010 for dimensions and SAE J78-2013 for the self-drilling thread, from AISI 1016-1024 steel case hardened to Rockwell C32-40. Those are the figures a spec reviewer or submittal package normally wants on a self-drilling tapping screw.
7) How is the TXV12200VLB packaged and do I have to buy a full box?
It ships in a jar, and the order minimum is 1 each, so you are not forced into a case quantity. Other sizes and quantities of the TXV series are available by request if the 12-24 x 2 in. is not the length you need.
