Metallics TXV12200D 12-24 x 2 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$96.43

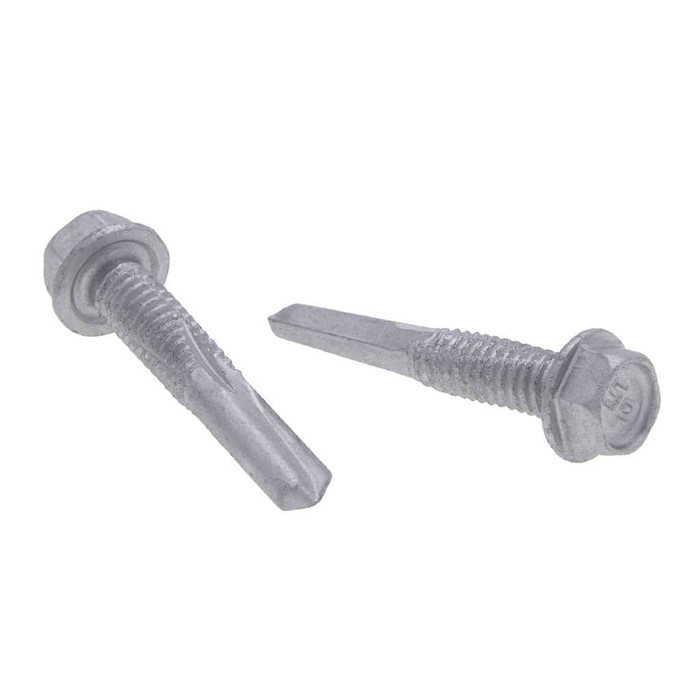

Metallics TXV12200D 12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 50qty

Metallics TXV12200D 12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - Each

(No reviews yet) Write a Review

Model: TXV12200D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$96.43
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12-24 x 2 in. 5/16 Hex Head Heavy Duty Drill Screws - #5 Drill Point - All-Weather - 50qty

  • Additional Notes

    • Heavy Duty Steel-To-Steel Application|other sizes and quantities available by request

  • Features

    • Made in the USA
    • #5 Drill Point
    • All-Weather Coating
    • 5/16 Hex Head with Hex Drive
    • 12-24 Diameter, 2" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
50 units
Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
United States
Dimensional Standard:
ASME B18.6.3-2010
Division:
Electrical H1
Drill Point Size:
#5
Drive Type:
Hex
Fastener Head Height:
0.139 - 0.155 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.305 - 0.312 in.
Fastener Length:
2
Hardness:
Rockwell C32-40
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Order Minimum Imperial:
50
Order Minimum Uom Imperial:
EA
Pack Type:
Jar
Panel Thickness:
0.110 - 0.210 IN
Product Group:
Screws
Screw Point Type:
Drill Point
Slot Depth:
0.077 - 0.093
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
24
Thread Standard:
SAE J78 - 2013
Torsional Strength:
92 lb-in minimum
Washer Od:
0.398 - 0.432 in.
Washer Thickness:
0.022 - 0.039 IN
Width Across Corners:
0.34
Department:
Fasteners
Product Subgroup:
Tapping Screws
Product Type:
Self-Drilling Screw
Type2:
Type BSD Heavy Duty Drill Screw
Series:
TXV
Product Finish:
Zinc/All-Weather Coating
Product Details:
Type BSD Heavy Duty Drill Screw
Product Material:
All-Weather

Metallics TXV12200D – Frequently Asked Questions

1) What driver do I need for a 12-24 x 2 in. hex head drill screw?
A 5/16 hex driver or socket. The head measures 0.305 to 0.312 in. across the flats, 0.34 in. across corners, with a head height of 0.139 to 0.155 in. There is no Phillips or square recess, so the drive is hex only.
2) Can these drill screws be used outdoors or in a damp mechanical room?
Yes. The TXV12200D carries a zinc plus all-weather coating, which is what Metallics specifies for exposed and weather-contact steel-to-steel work. It is a coated carbon steel screw (AISI 1016-1024), not stainless, so for continuous salt spray or coastal immersion a stainless fastener is the better call.
3) Is there a sealing washer on the Metallics TXV12200D, or do I need to add one?
An integral washer is part of the head: outside diameter 0.398 to 0.432 in. with a thickness of 0.022 to 0.039 in. That spreads the clamp load on sheet steel. It is a metal washer face, not a bonded neoprene seal, so for watertight roof or wall penetrations you still need a separate sealing washer.
4) How tough are these screws, and will the head snap when I drive them into heavy steel?
Case hardness runs Rockwell C32-40 and torsional strength is 92 lb-in minimum, which is what lets the point drill steel without shearing. The usual failure in heavy steel-to-steel work is overdriving once the point breaks through, so back off the clutch as the washer seats.
5) Do these screws meet Buy American requirements on a federal job?
The TXV12200D is made in the United States, but Metallics lists it as not Buy American compliant and not ARRA compliant. If your contract carries a Buy American or ARRA clause, country of origin alone will not satisfy the submittal.
6) Is a 2 inch drill screw the right length for strut, angle iron and steel-to-steel hanging?
The 2 in. length gives you reach through standoffs, clips and stacked members, but the drill capacity is still 0.110 to 0.210 in. of actual steel. Length covers the gap; the panel thickness range governs what it can cut. For thin-gauge deck or light sheet only, a shorter screw with a smaller drill point wastes less drive time.
7) What thread does a 12-24 drill screw have, and will it hold in a tapped hole?
It is a 12-24 machine thread, 24 threads per inch, made to SAE J78 - 2013 with head dimensions to ASME B18.6.3-2010. Because it is a true 12-24 thread, it will also thread into an existing 12-24 tapped hole or nut, not just the hole its own point drills.
8) How are these Metallics TXV screws packaged and what is the smallest quantity I can buy?
They ship in a jar, with a minimum order of 50 each. Metallics notes other sizes and quantities of the Type BSD heavy duty drill screw are available by request.
