Metallics JTS52 12 x 5/8 in. P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.19
$0.19

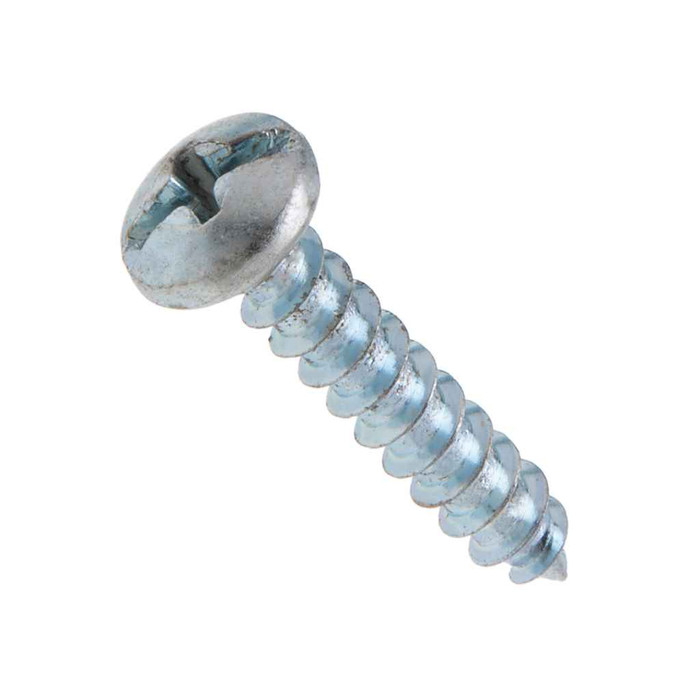

Metallics JTS52 12 x 5/8 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - 100qty

Metallics JTS52 12 x 5/8 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JTS52
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.19
$0.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
12 x 5/8 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4

  • Features

    • Steel Zinc Material
    • Pan head with Phillips and slotted Drive
    • 12 Diameter, 5/8" Length

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-2013
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#3
Fastener Head Height:
0.139 - 0.151 in.
Fastener Head Type:
Pan
Fastener Head Width:
0.407 - 0.425 in.
Fastener Length:
8-May
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell C28 - 38
Language Code:
EN
Material Standard:
AISI 1016 - 1024
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slot-Phil-Combo_Self_Tap.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Phillips Recess Diameter:
0.252
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
0.74 lbs
Product Width:
3 in
Recess Penetration Gaging Depth:
0.098 - 0.124
Screw Point Type:
Gimlet Point
Slot Depth:
0.055 - 0.077
Slot Width:
0.056 - 0.067
Sub Division:
Electrical-E H2
Thread Per Inch:
11
Thread Standard:
ASME B18.6.4
Torsional Strength:
83 lb-in minimum
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Type A Tapping Screw
Type2:
Type A Tapping Screw
Series:
JTS
Product Finish:
Zinc
Product Details:
Type A Tapping Screw
Product Material:
Steel Zinc

Metallics JTS52 – Frequently Asked Questions

1) What is a Type A tapping screw used for, and is the Metallics JTS52 right for sheet metal boxes and strut?
The Metallics JTS52 is a Type A tapping screw, meaning it has a gimlet (sharp) point and a coarse 11 threads-per-inch thread that cuts its own thread in thin sheet metal without a nut. That is why it is listed for electrical, plumbing, heating and air conditioning work: fastening into sheet metal enclosures, duct, and light-gauge brackets. For thicker steel or machine-threaded holes you want a Type F or a machine screw instead, because the gimlet point needs thin stock to pull into.
2) Can I drive the Metallics JTS52 with a Phillips bit or does it need a flat blade?
Either works. The JTS52 has a combination slotted/Phillips pan head, so a flat blade or a Phillips bit both engage. The recess takes a #3 driver, with a Phillips recess diameter of 0.252 in. and a recess penetration gaging depth of 0.098 to 0.124 in. The slot is 0.056 to 0.067 in. wide and 0.055 to 0.077 in. deep, so a standard cabinet-tip flat blade seats fine. Torsional strength is 83 lb-in minimum, so keep an impact driver off high setting to avoid snapping heads.
3) Are the Metallics JTS52 screws Buy American or ARRA compliant for a federal job?
No. The JTS52 is not Buy American compliant and is not ARRA compliant; country of origin is listed as multiple. If your project carries a domestic-sourcing clause, this part will not satisfy it.
4) How long is the Metallics JTS52 screw and how thick a stack can it fasten?
The JTS52 is a #12 diameter screw, 5/8 in. long. With an 11 TPI coarse thread and a gimlet point, most of that 5/8 in. is working thread, so it is sized for fastening a device, strap, or bracket to light-gauge sheet metal rather than for thick assemblies. If your stack-up plus engagement needs more than 5/8 in., step up to a longer length in the same JTS series.
5) How are the Metallics JTS52 screws packaged and what is the minimum I can buy?
They ship in a jar of 100, which is the order minimum. The jar weighs 0.74 lbs and measures 3 x 2.15 x 3 in.
6) Will zinc-plated steel tapping screws hold up outdoors or in a damp mechanical room?
The JTS52 is zinc-plated carbon steel (AISI 1016 to 1024). Zinc plating is an indoor-duty coating: fine in enclosures, mechanical rooms, and dry interior work, but it will corrode in direct weather, wash-down, or coastal exposure. For exterior or wet locations, specify a stainless steel tapping screw rather than zinc-plated steel.
