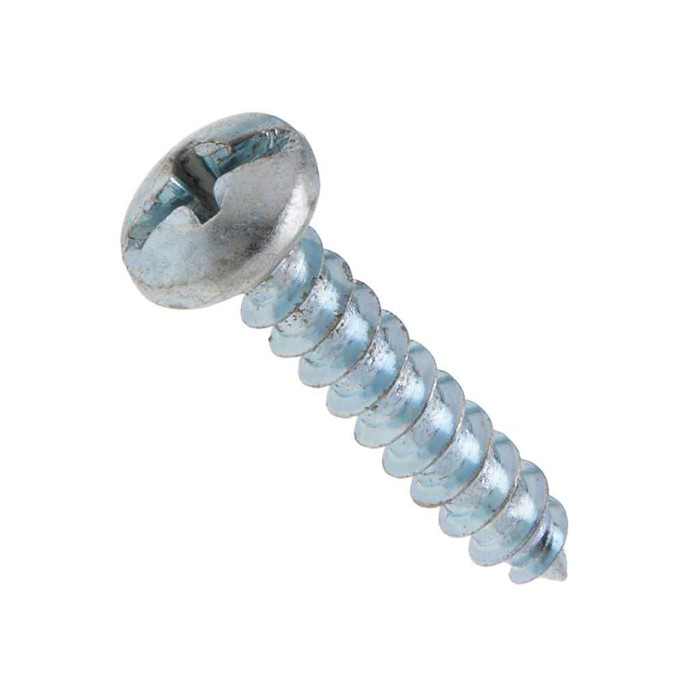

14 x 5/8 in. Pan Head Combo Sharp Point Tapping Screws - Steel Zinc - 100qty
Features
- Steel Zinc Material
- Pan head with Phillips and slotted Drive
- 14 Diameter, 5/8" Length
Additional Notes
- Other sizes and quantities available by request | Dimensions for #9 diameter are independent of ASME B18.6.4
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 100 units
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- China
- Dimensional Standard:
- ASME B18.6.3-2013
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Driver Size:
- #3
- Fastener Head Height:
- 0.156 - 0.169 in.
- Fastener Head Type:
- Pan
- Fastener Head Width:
- 0.457 - 0.476 in.
- Fastener Length:
- 8-May
- Finish:
- Zinc
- Hardness:
- Rockwell C28 - 38
- Height:
- 2.15 in
- Language Code:
- EN
- Length:
- 3 in
- Material:
- Steel Zinc
- Material Standard:
- AISI 1016 - 1024
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Pan_Slot-Phil-Combo_Self_Tap.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Phillips Recess Diameter:
- 0.274
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 54.61 MM
- Product Length:
- 76.2 MM
- Product Series:
- JTS
- Product Weight:
- 467 g
- Product Width:
- 76.2 MM
- Recess Penetration Gaging Depth:
- 0.118 - 0.144
- Screw Point Type:
- Gimlet Point
- Slot Depth:
- 0.06 - 0.085
- Slot Width:
- 0.064 - 0.075
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 10
- Thread Standard:
- ASME B18.6.4
- Torsional Strength:
- 125 lb-in minimum
- Type:
- Type A Tapping Screw
- Weight:
- 1.03 lbs
- Width:
- 3 in
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Type A Tapping Screw
- Type2:
- Type A Tapping Screw
