Product Specs
- Amps:
- 0.025
- Base Type:
- Slide Base 5 (TS5)
- Bulb Type:
- T2
- California Title 20:
- Exempt
- Dimmable:
- FALSE
- Dlc Premium:
- FALSE
- Dlc Standard:
- FALSE
- Energy Star:
- FALSE
- Filament:
- CC-7A
- Mod In Mm:
- 0.27/6.90
- Mol In Mm:
- 1.11/28.20
- Rated Life:
- 10,000
- Voltage Rating:
- 120

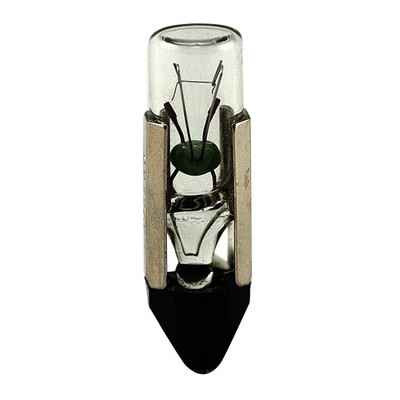

EiKO 120PSB5 – Frequently Asked Questions
1) Will the EiKO 120PSB5 fit a Slide Base 5 (TS5) socket?
Yes. The 120PSB5 is built on a Slide Base 5 (TS5) base, so it drops into TS5 indicator sockets. It will not seat in a wedge, bayonet, or midget screw socket, so confirm the panel or pilot light housing is TS5 before ordering.
2) What voltage and current does the EiKO 120PSB5 indicator lamp draw?
It runs on 120 volts and draws 0.025 amps, which works out to about 3 watts. That low draw is typical for a panel or pilot indicator rather than a lamp meant to light a space.
3) What part number should I order to replace a burned-out TS5 pilot lamp running at 120 volts?
The EiKO manufacturer part number is 120PSB5. Match three things against the lamp you pulled out: 120V rating, 0.025A draw, and the Slide Base 5 (TS5) base. If the old lamp was a lower voltage TS5 it will look identical but will burn out immediately on a 120V circuit.
4) Can the EiKO 120PSB5 be run on a dimmer?
No. The 120PSB5 is not a dimmable lamp. Put it on a straight switched 120V circuit; a dimmer or a phase-cut control is not an intended application for it.
5) How long does the EiKO 120PSB5 last before it needs replacing?
Rated life is 10,000 hours. For an indicator that stays energized around the clock, that is a little over a year of continuous burn, so facilities crews stocking pilot lamps for control panels usually buy them in multiples.
6) Is the EiKO 120PSB5 an LED or an incandescent lamp?
It is an incandescent, with a CC-7A filament construction. There is no driver or electronics in it, so it gives instant-on output with no flicker or RF noise, which is why it still shows up in control panels and annunciator boards.
7) Does the EiKO 120PSB5 have to meet California Title 20 requirements?
It is Title 20 exempt, so California's general service lamp rules do not restrict it. It does not carry Energy Star, DLC Standard, or DLC Premium listing, so it will not qualify for utility rebate programs tied to those listings.
