Metallics JFM102 1/4-20 x 1-1/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.27
$0.27

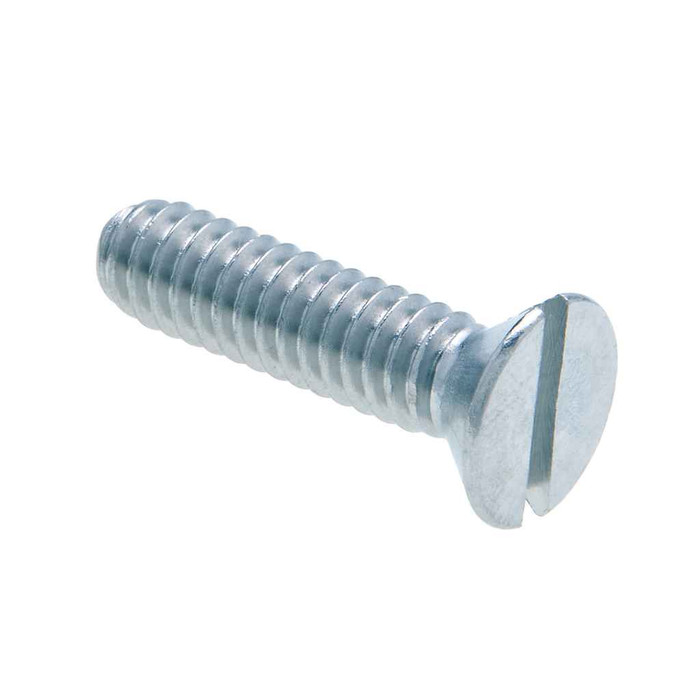

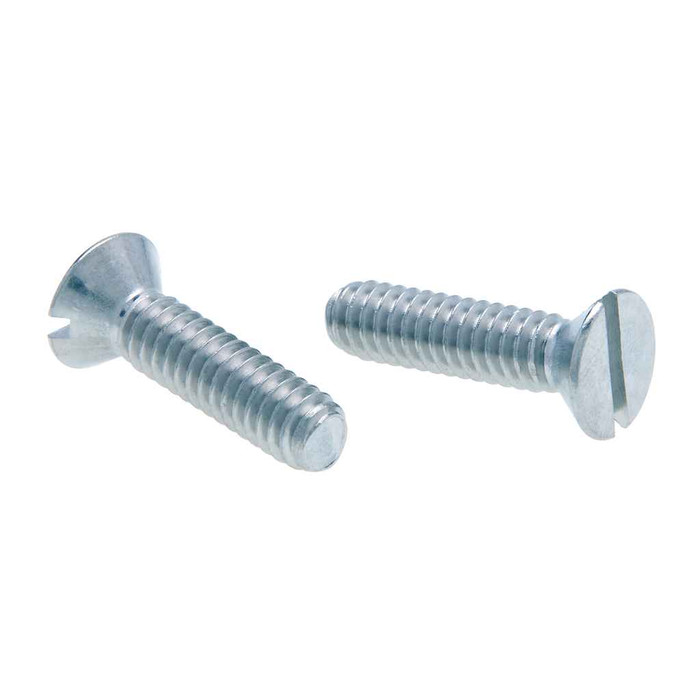

Metallics JFM102 1/4-20 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM102 1/4-20 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM102
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.27
$0.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1-1/4 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Features

    • 1/4-20 Diameter, 1-1/4" Length
    • Flat head with slotted Drive
    • Zinc yellow screws are popular in electronics applications.
    • Steel Zinc Material

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
1/1/04
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
1.561 lbs
Product Width:
3 in
Slot Depth:
0.046 - 0.07
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM102 – Frequently Asked Questions

1) Will a 1/4-20 machine screw thread into a standard electrical box or device knockout?
The Metallics JFM102 is a 1/4-20 UNC screw, 20 threads per inch, cut to ANSI/ASME B1.1. That mates with any 1/4-20 tapped hole or 1/4-20 nut, which is the common size for strut, box hangers, and bracket hardware. It will not thread into the 8-32 or 10-32 holes used for device mounting and cover plates in outlet boxes, so for those you need the smaller machine screw size instead.
2) Does this flat head screw sit flush, and what countersink does it need?
Flat head, so it seats flush in a countersunk hole. Head width runs 0.442 to 0.477 in. and head height 0.131 to 0.153 in., so the countersink has to be at least that wide and deep for the screw to finish level with the surface. Dimensions follow ASME B18.6.3-1998. On a plain drilled hole with no countersink the head will stand proud by up to about 0.153 in.
3) Are these machine screws Buy American or ARRA compliant for a government job?
No. The JFM102 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic sourcing requirement, these screws will not satisfy it.
4) How does the JFM102 ship, and what is the minimum order?
These 1/4-20 x 1-1/4 in. screws come in a jar of 100, which is also the order minimum. Jar weight is listed at 1.561 lbs. Handy for a van or a shop drawer rather than counting loose pieces off a bin.
5) Is a slotted drive the right choice, or should I get Phillips?
The JFM102 takes a flat blade screwdriver: slotted drive, with a slot 0.064 to 0.075 in. wide and 0.046 to 0.07 in. deep. Slotted is fine for hand driving in panels and boxes, which is where electricians use it. If you are driving volume with a power driver, a Phillips or combination head holds the bit better, so pick that instead for production work.
6) Can I use zinc plated machine screws outdoors or in a wet location?
Zinc finish over steel is a dry to mildly damp indoor plating. The Metallics JFM102 is a steel zinc screw intended for electrical, plumbing, heating and air conditioning work, which is mostly inside boxes, panels and mechanical rooms. For exterior, wet, or corrosive locations go to a stainless machine screw of the same 1/4-20 size.
7) Do machine screws like these come with nuts?
No nuts or washers are included. The JFM102 is supplied as screws only, 100 to a jar. Into a tapped hole it works on its own; through an untapped hole you need to order 1/4-20 hex nuts, and flat or lock washers if the application calls for them.
