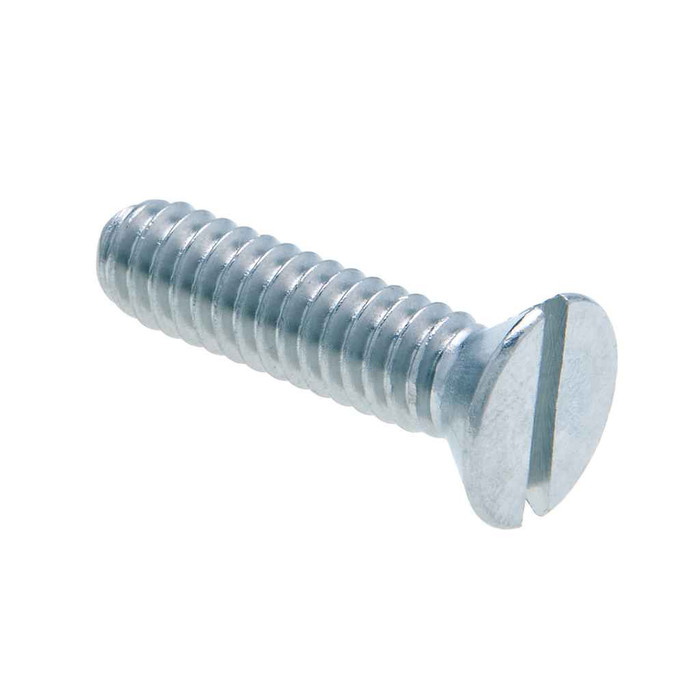

Metallics JFM101 1/4-20 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM101 1/4-20 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM101
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.23
$0.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 1 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Flat head with slotted Drive
    • Steel Zinc Material
    • 1/4-20 Diameter, 1" Length
    • Zinc yellow screws are popular in electronics applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
1
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.7 in
Product Length:
3 in
Product Weight:
1.3 lbs
Product Width:
3 in
Slot Depth:
0.046 - 0.07
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM101 – Frequently Asked Questions

1) Will these pass a Buy American or ARRA domestic content requirement on a public job?
No. The JFM101 is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. On federally funded or state domestic-content work you will need a domestically sourced fastener instead.
2) What screwdriver fits these, and will a power driver cam out?
Drive is a straight slot, 0.064 to 0.075 in. wide and 0.046 to 0.07 in. deep. Use a flat blade sized to the slot. Slotted drive has no self-centering taper, so a power driver will walk off the head under torque; hand driving or a slow-speed driver with steady pressure is the way to run these.
3) Can I use these zinc plated screws outdoors or in a damp location?
The JFM101 is zinc plated carbon steel. Zinc plating handles indoor and dry locations well, but it is a sacrificial coating, not stainless, so in wet, washdown or coastal exposure it will eventually corrode. For those spots specify a stainless machine screw in the same 1/4-20 x 1 in. size.
4) How many screws come in a pack of the Metallics JFM101?
They ship 100 to a jar, and the jar is the order minimum. Shipping weight on the jar is 1.3 lbs. If you need a different count or length in the FM and FMP series, other sizes and quantities are available by request.
5) What is a machine screw good for versus a sheet metal or self-tapping screw?
A machine screw like the JFM101 has a uniform machine thread and a blunt end. It goes into an already tapped hole or takes a nut, which is what you want in enclosures, panels, strut nuts and device hardware across electrical, plumbing and HVAC work. It will not cut its own thread, so for fastening into bare sheet metal with no tapped hole, use a self-tapping or sheet metal screw.
6) How much grip length do I get with the 1 inch screw?
Length is 1 in., and on a flat head screw that length is measured from the top of the head, since the head sinks into the countersink. So your combined material thickness plus nut engagement has to stay under 1 in. total.
