Metallics JFM105 1/4-20 x 3 in...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.61
$0.61

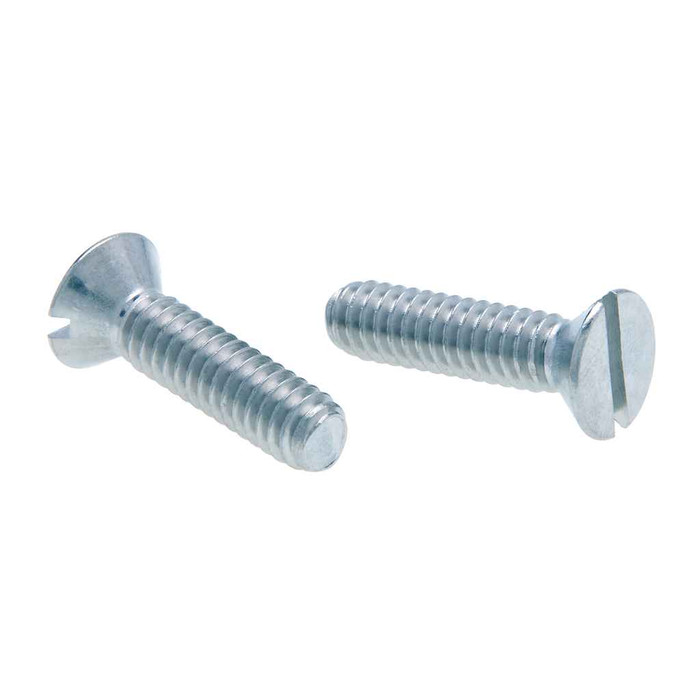

Metallics JFM105 1/4-20 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

Metallics JFM105 1/4-20 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - Each

(No reviews yet) Write a Review

Model: JFM105
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.61
$0.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1/4-20 x 3 in. Flat Head Slotted Machine Screws - Steel Zinc - 100qty

  • Additional Notes

    • Other sizes and quantities available by request | Hardness and tensile strength standards are offered as guides only for stainless machine screws. There is currently no national standard for these performance requirements for stainless machine screws.

  • Features

    • Steel Zinc Material
    • Flat head with slotted Drive
    • 1/4-20 Diameter, 3" Length
    • Zinc yellow screws are popular in electronics applications.

Manufacturer Resources

Product Specs

Minimum Purchase:
100 units
Arra Compliant:
N
Buy American Compliant:
No
Dimensional Standard:
ASME B18.6.3-1998
Division:
Electrical H1
Drive Type:
Slotted
Fastener Head Height:
0.131 - 0.153 in.
Fastener Head Type:
Flat
Fastener Head Width:
0.442 - 0.477 in.
Fastener Length:
3
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Flat_Head_Mach_Screw.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
5.75 in
Product Length:
3.5 in
Product Weight:
3.38 lbs
Product Width:
3.5 in
Slot Depth:
0.046 - 0.07
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
1900 lb minimum
Thread Per Inch:
20
Thread Standard:
ANSI/ASME B1.1
Thread Type:
UNC
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Machine Screw
Type2:
Machine Screw
Series:
FM and FMP
Product Finish:
Zinc
Product Details:
Machine Screw
Product Material:
Steel Zinc

Metallics JFM105 – Frequently Asked Questions

1) What thread does the Metallics JFM105 machine screw use, and will it take a standard 1/4-20 nut?
The JFM105 is a 1/4-20 UNC machine screw, 20 threads per inch, cut to ANSI/ASME B1.1. That means it mates with any standard 1/4-20 coarse nut, tapped hole, or threaded insert. Overall length is 3 inches.
2) Is the Metallics JFM105 Buy American or ARRA compliant for a government job?
No. The JFM105 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic-sourcing clause, this screw will not satisfy it.
3) How many 1/4-20 x 3 in. machine screws come in a jar?
They ship in a jar of 100, and 100 is the order minimum, so you buy by the jar rather than the piece.
4) Is a zinc plated steel machine screw okay for outdoor or wet locations?
The JFM105 is zinc plated carbon steel (AISI 1006-1022). Zinc plating is a mild corrosion barrier meant for dry indoor work, so it suits interior electrical, plumbing, and HVAC assemblies. For exterior, damp, or washdown areas, go with a stainless machine screw of the same 1/4-20 x 3 in. size.
5) Is this 1/4-20 x 3 in. screw long enough for my application?
Three inches of total length, measured from under the flat head as flat head screws are, so the full 3 inches goes into the material. Subtract your plate or strap thickness to see how much thread is left for the nut. For thinner stacks a shorter length in the same FM and FMP series keeps the thread engagement correct without excess sticking out.
6) What trades actually use these flat head machine screws?
Metallics lists the JFM105 for electrical, plumbing, and heating and air conditioning work. Typical uses are fastening device plates, box covers, hangers, straps, and equipment panels into tapped holes or through-bolted with a nut. The yellow zinc version of these screws is also common in electronics assembly.
7) What does a full jar of these 1/4-20 x 3 in. screws weigh?
A jar runs 3.38 lbs and the container measures 3.5 in. wide by 3.5 in. long by 5.75 in. high, which matters if you are stocking a van bin or a shop drawer.
